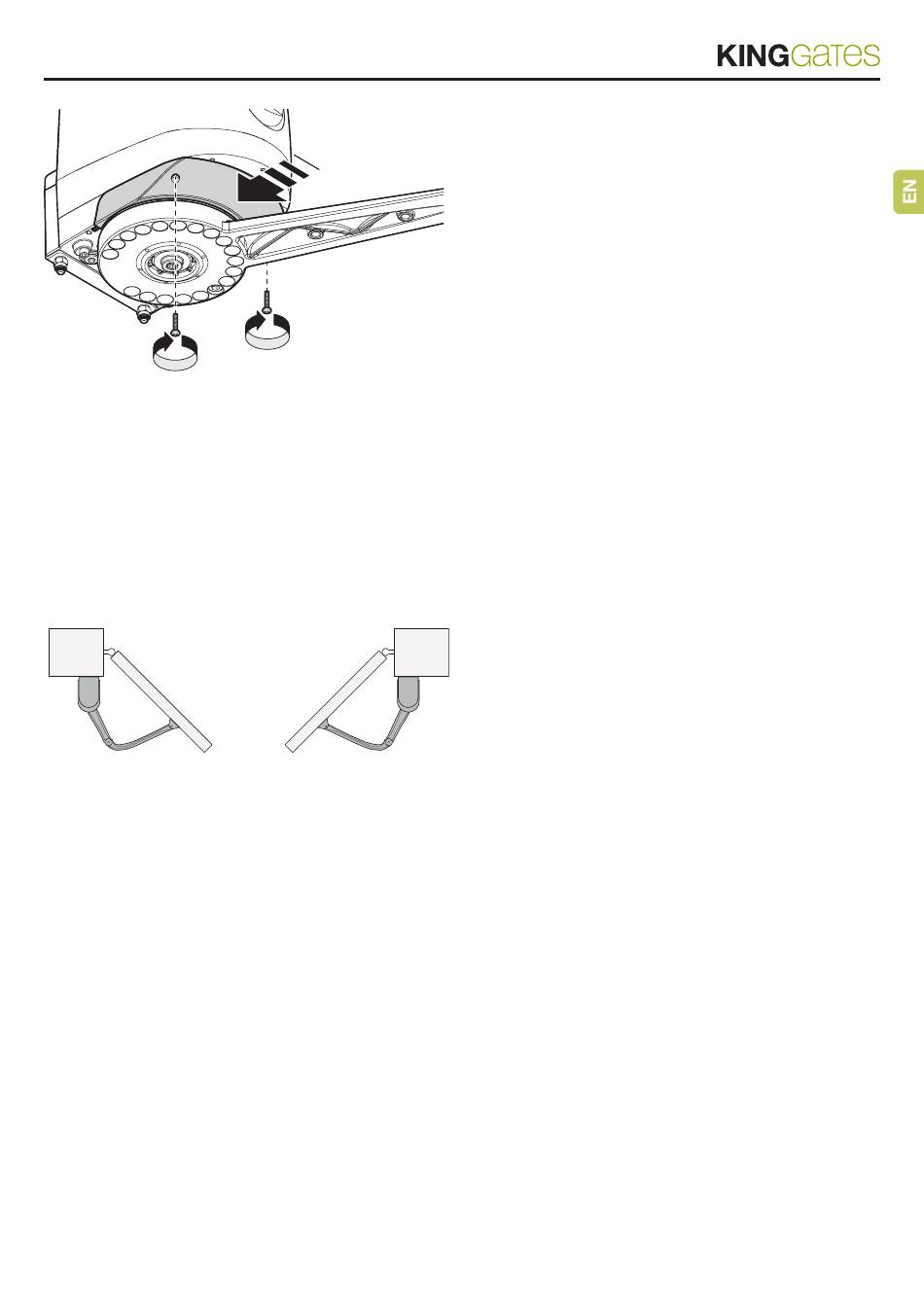

08. Replace the cover and tighten the two screws Fig. 19;
Fig. 19
09. Finally, secure the gear motor by turning the release key;
10. For the assembly of the second motor, carry out the same
operations proceeding in reverse order for the adjustment of the limit
switches;
11. After installing and adjusting the motors, position the leaves
halfway along their stroke so that, after making the electrical
connections, they can learn the opening and closing procedures
correctly Fig. 20.
Fig.20
