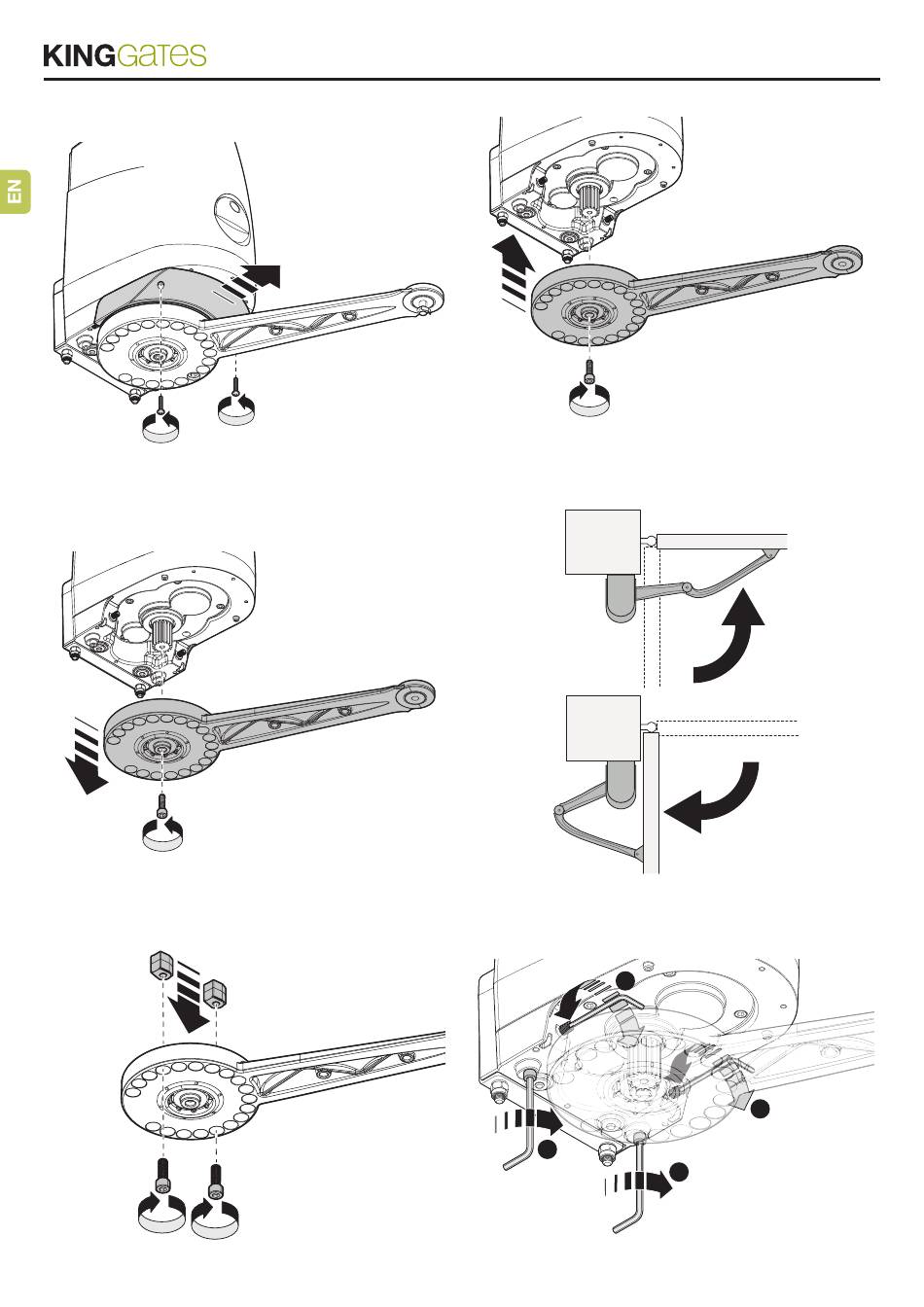

02. Remove the 2 screws underneath the motor and remove the
cover as shown in Fig. 13;
03. Unscrew the screw in the motor arm and remove it as shown in
Fig. 14;
04. Fix the limit switches on the motor arm Fig. 15; these must also
be installed in the presence of mechanical stops on the ground.
Opening
18
Closing
05. At this point re-install the arm onto the motor Fig. 16;
Fig. 13
06. Manually verify that, when opening and closing, the gate leaf
stops at the desired pointsFig. 17;
Fig. 14
07. By screwing or unscrewing the two screws (A) on the motor, the
two limit switches can be adjusted; then, using the two screws (B)
block the two adjusting screws(A) Fig. 18;
Opening
B
Fig. 15
Closing
Opening
A
Closing
A
B
Fig.16
Fig.17
Fig. 18
