3.5.2 – Securing the gear motor to the
fixing brackets
• Secure the gear motor to the rear bracket:

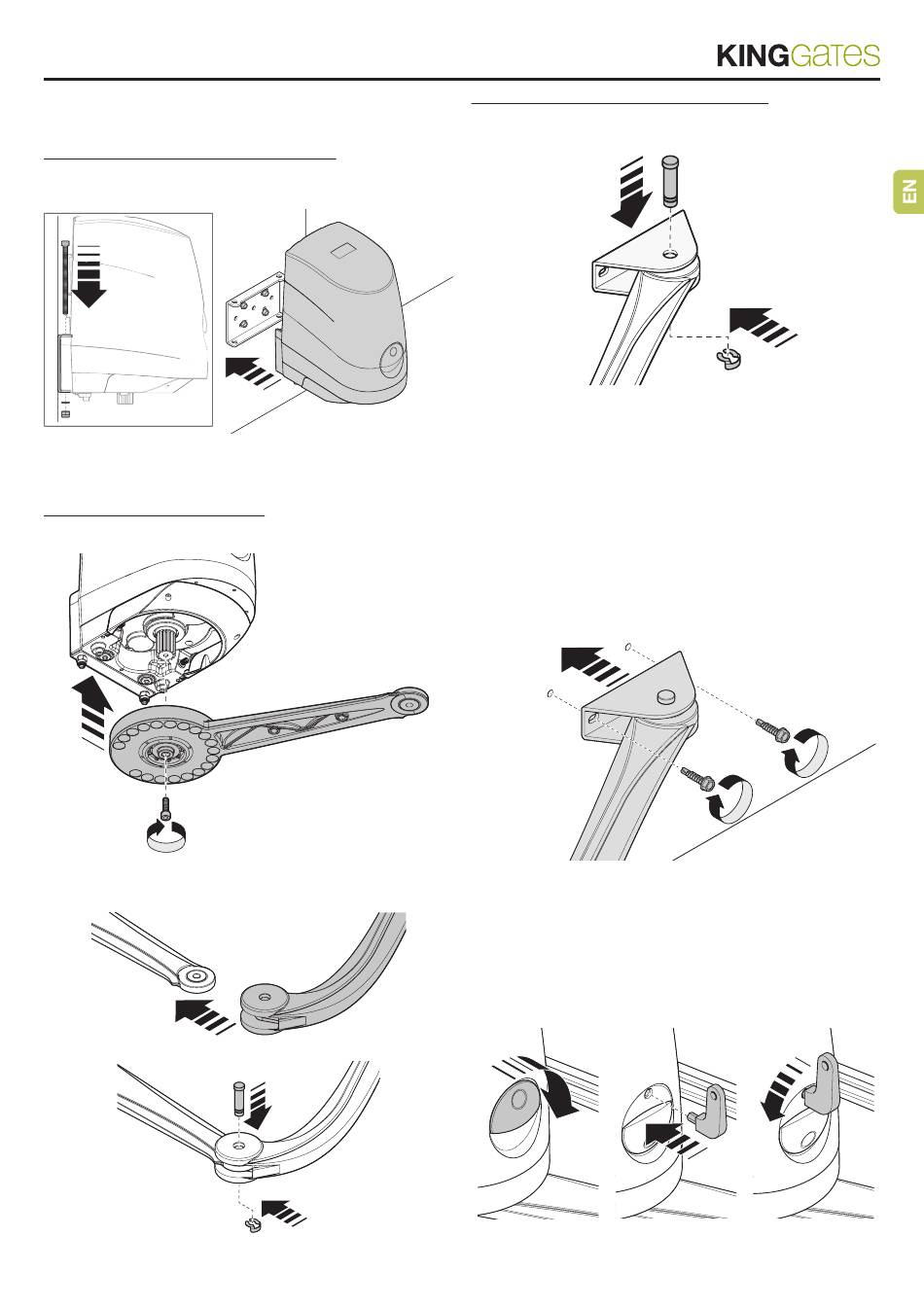

01. Secure the gear motor to the bracket as shown in Fig. 7 using
the screws, washers and nuts supplied;
02. Fully tighten the nuts to the screws.
• Install the arms onto the motor:
01. Secure the arm onto the gear motor using the screw;
02. Fix the two arms to each other using the pin and the seger Fig. 9;
• Secure the gear motor to the front bracket:
01. Secure the gear motor arm to the bracket as shown in Fig. 10
using the pin and seger supplied;
02. Tighten the seger fully onto the pin seat;
Fig. 7
3.5.3 – Installation of the front fixing
bracket
01. The front bracket must be secured to gate leaf;
02. Define the front bracket position height in accordance with Fig. 4;
03.Fix the bracket to the solid section of the gate leaf Fig.11.
Fig. 8
3.5.4 – Installation and adjustment of
the motor limit switches
Adjust the gear motor opening and closing limit switches:
01. Release the gear motor as shown in Fig. 12;
Fig. 9
Fig. 10
Fig. 11
Fig. 12
