Removing The Antenna (Location 3) - Dell OptiPlex 3000 Thin Client Servicehandbuch

Steps
1. Remove the adhesive tape from the internal antenna assembly.
2. Align the hole on the internal antenna assembly with the stand on the system.
3. Replace the screw (M3x3) to secure the internal antenna assembly to the system.
4. Route the black antenna-cable under the EMI shielding and through the cable clip with a tool.
Next steps
1. Install the WLAN card.
2. Install the side cover.
3. Follow the procedure in

Removing the antenna (Location 3)

Prerequisites
1. Follow the procedure in
2. Remove the side cover.
3. Remove the WLAN card.
About this task

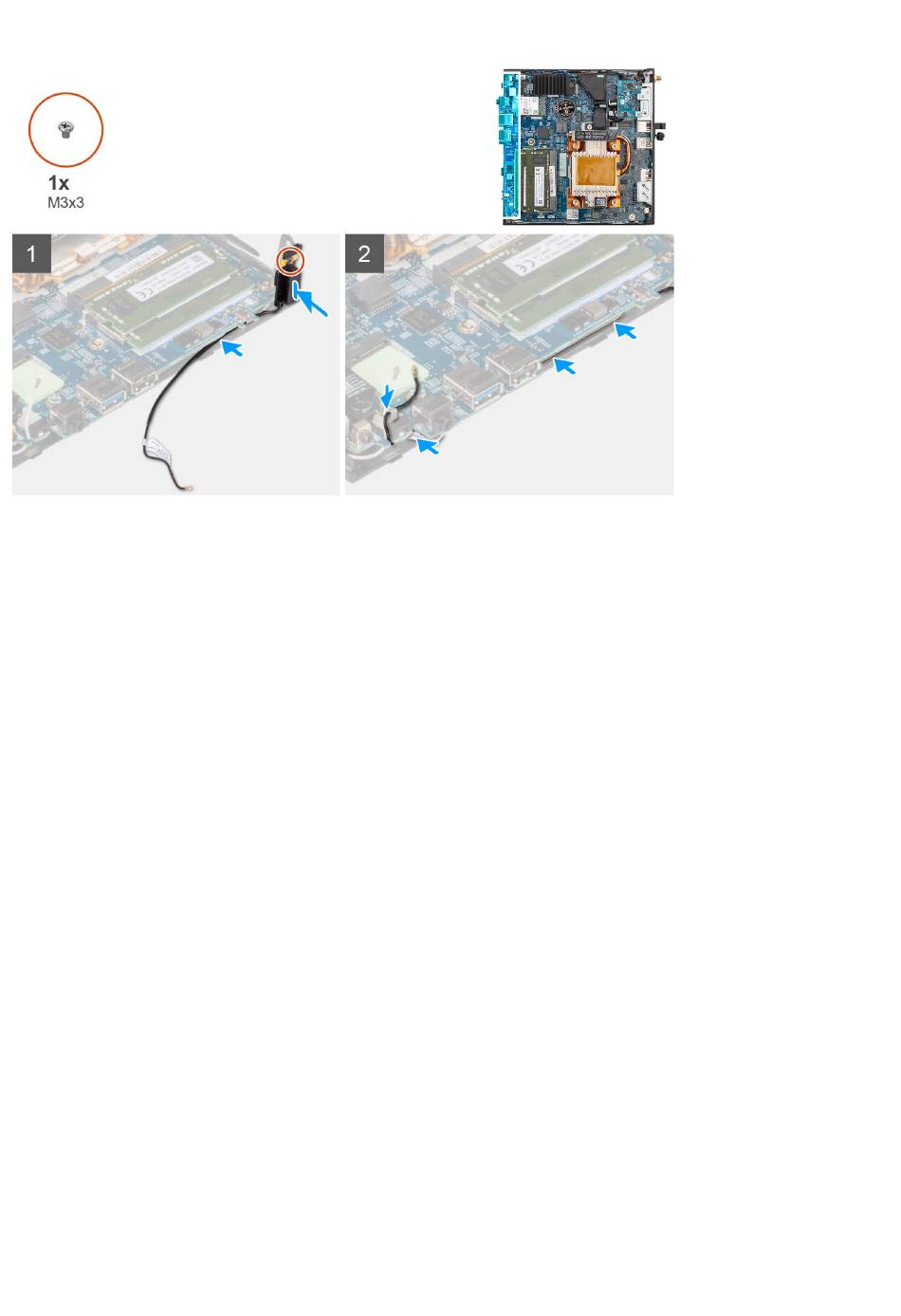

The following image indicates the location of an internal antenna and provides a visual representation of the removal procedure.
