Installing The Side Cover - Dell OptiPlex 3000 Thin Client Servicehandbuch

Steps
1. Loosen the thumbscrew (6-32) that secures the side cover to the system.
2. Slide the side cover towards the front of the system to disengage the tabs from the slots on the system.
3. Slide and remove the side cover from the system.

Installing the side cover

Prerequisites
Wenn Sie eine Komponente austauschen, muss die vorhandene Komponente entfernt werden, bevor Sie das
Installationsverfahren durchführen.
About this task

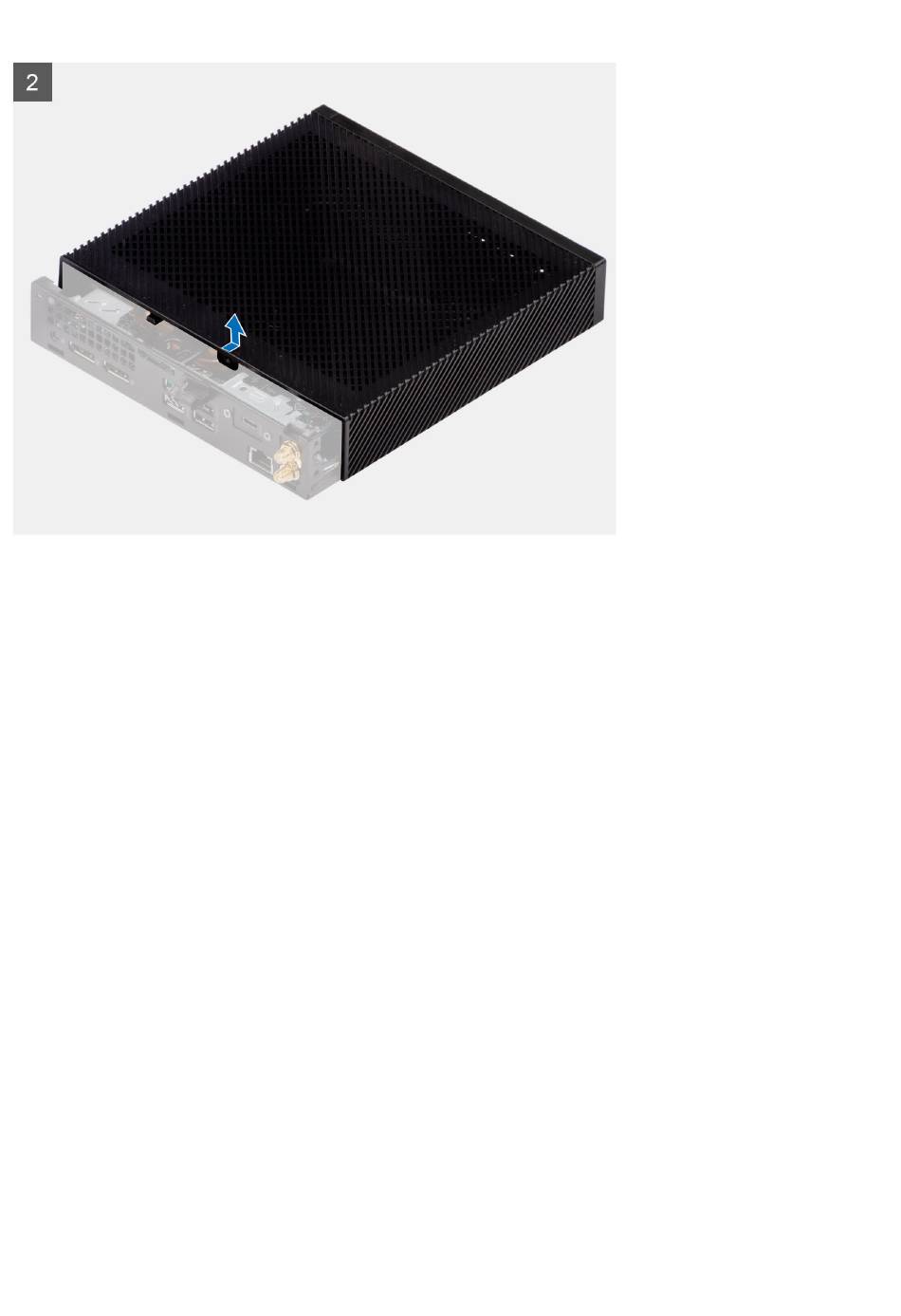

The following images indicate the location of the side cover and provide a visual representation of the installation procedure.
Entfernen und Einbauen von Komponenten 13
