Braking Resistors
4.1

Definitions of the power ratings

Braking unit with external resistor
P20 = Rated Power
= Peak Power = 1.5 × P20
P3
PDB = 0.25 × P20 = Steady State Power Rating
P
P3 1.5
P20 1
PDB 0.25
0
0 3 20 23
4-2
t[s]
90

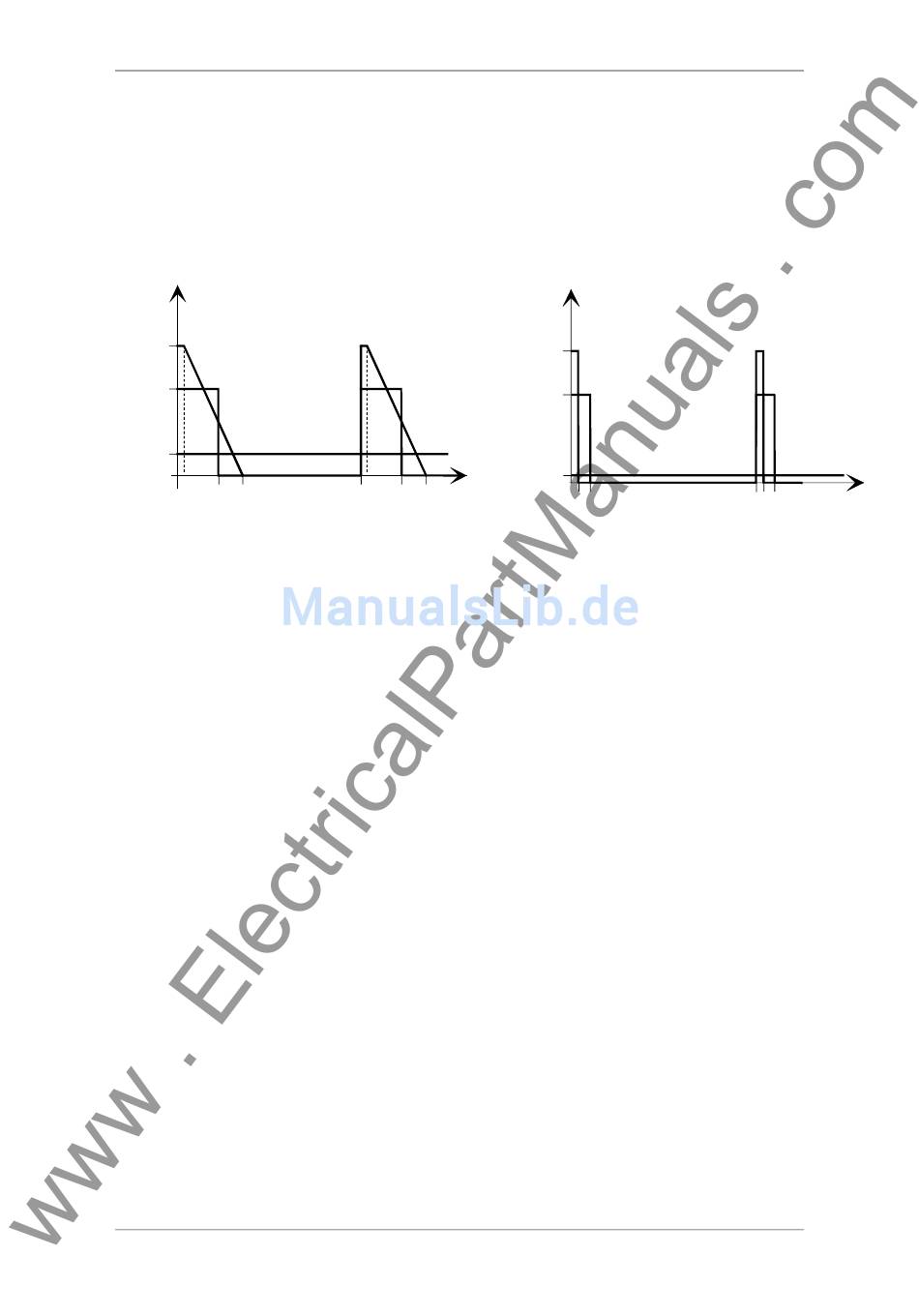

Fig. 4-1 Load characteristics of the braking units
Bremseinheit / Braking Unit
Braking unit with internal resistor
P20 = Rated Power
= Peak Power = 1.5 × P20
P3
PDB = 0.03 × P20 = Steady State Power Rating
P
P3 1.5
P20 1
PDB 0.03
0
0
1.7 2.5
6SE7087-6CX87-2DA0
SIMOVERT MASTERDRIVES
03.2004
t[s]
72.5
