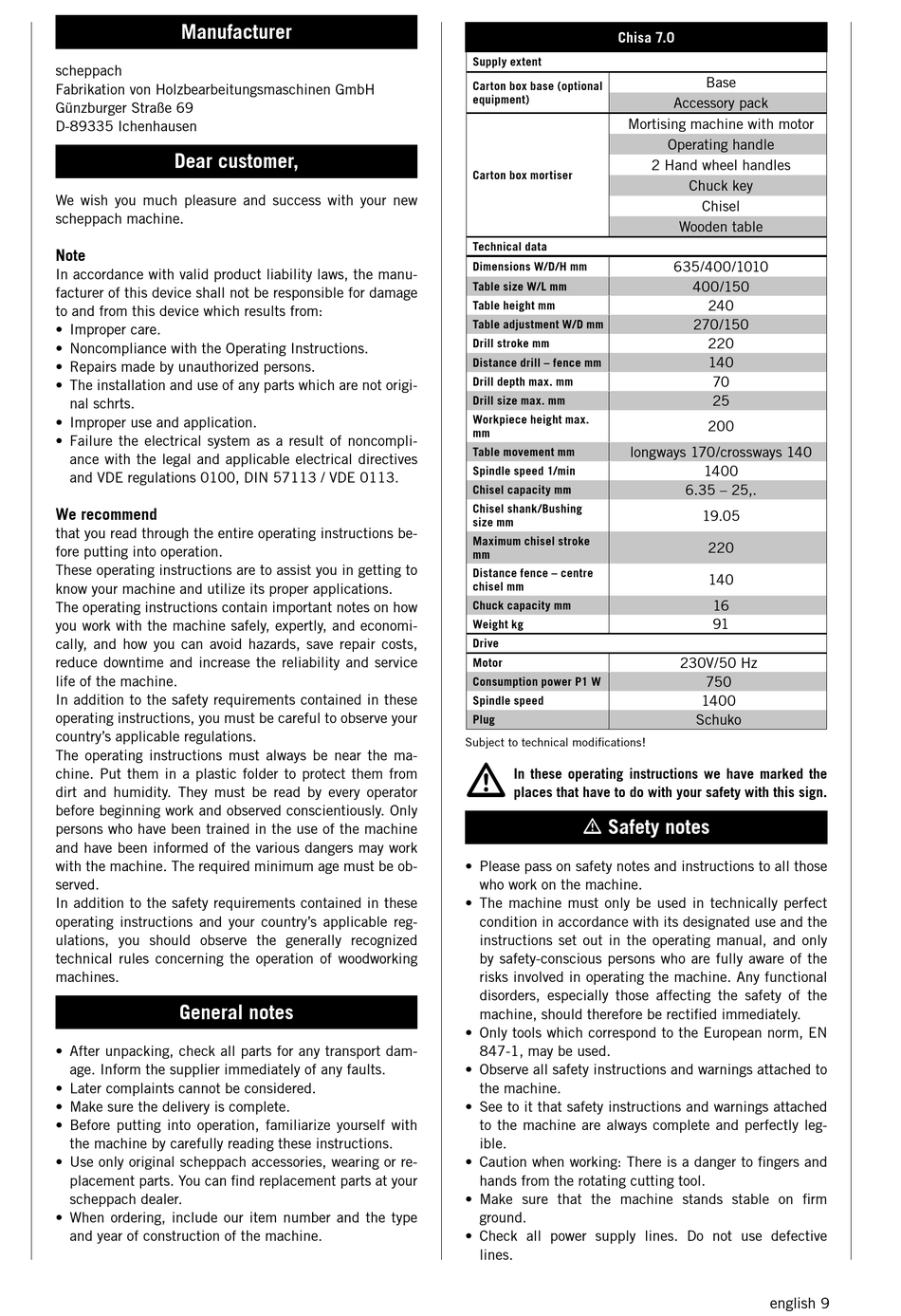

Manufacturer
scheppach
Fabrikation von Holzbearbeitungsmaschinen GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear customer,
We wish you much pleasure and success with your new
scheppach machine.
Note
In accordance with valid product liability laws, the manu-
facturer of this device shall not be responsible for damage
to and from this device which results from:
• Improper care.
• Noncompliance with the Operating Instructions.
• Repairs made by unauthorized persons.
• The installation and use of any parts which are not origi-
nal schrts.
• Improper use and application.
• Failure the electrical system as a result of noncompli-
ance with the legal and applicable electrical directives
and VDE regulations 0100, DIN 57113 / VDE 0113.
We recommend
that you read through the entire operating instructions be-
fore putting into operation.
These operating instructions are to assist you in getting to
know your machine and utilize its proper applications.
The operating instructions contain important notes on how
you work with the machine safely, expertly, and economi-
cally, and how you can avoid hazards, save repair costs,
reduce downtime and increase the reliability and service
life of the machine.
In addition to the safety requirements contained in these
operating instructions, you must be careful to observe your
country's applicable regulations.
The operating instructions must always be near the ma-
chine. Put them in a plastic folder to protect them from
dirt and humidity. They must be read by every operator
before beginning work and observed conscientiously. Only
persons who have been trained in the use of the machine
and have been informed of the various dangers may work
with the machine. The required minimum age must be ob-
served.
In addition to the safety requirements contained in these
operating instructions and your country's applicable reg-
ulations, you should observe the generally recognized
technical rules concerning the operation of woodworking
machines.

General notes

• After unpacking, check all parts for any transport dam-
age. Inform the supplier immediately of any faults.
• Later complaints cannot be considered.
• Make sure the delivery is complete.
• Before putting into operation, familiarize yourself with
the machine by carefully reading these instructions.
• Use only original scheppach accessories, wearing or re-
placement parts. You can find replacement parts at your
scheppach dealer.
• When ordering, include our item number and the type
and year of construction of the machine.
Chisa 7.0
Supply extent
Carton box base (optional
equipment)
Mortising machine with motor
Carton box mortiser
Technical data
Dimensions W/D/H mm
Table size W/L mm
Table height mm
Table adjustment W/D mm
Drill stroke mm
Distance drill – fence mm
Drill depth max. mm
Drill size max. mm
Workpiece height max.
mm
longways 170/crossways 140
Table movement mm
Spindle speed 1/min
Chisel capacity mm
Chisel shank/Bushing
size mm
Maximum chisel stroke
mm
Distance fence – centre
chisel mm
Chuck capacity mm
Weight kg
Drive
Motor
Consumption power P1 W
Spindle speed
Plug
Subject to technical modifications!
m
In these operating instructions we have marked the
places that have to do with your safety with this sign.
m Safety notes
• Please pass on safety notes and instructions to all those
who work on the machine.
• The machine must only be used in technically perfect
condition in accordance with its designated use and the
instructions set out in the operating manual, and only
by safety-conscious persons who are fully aware of the
risks involved in operating the machine. Any functional
disorders, especially those affecting the safety of the
machine, should therefore be rectified immediately.
• Only tools which correspond to the European norm, EN
847-1, may be used.
• Observe all safety instructions and warnings attached to
the machine.
• See to it that safety instructions and warnings attached
to the machine are always complete and perfectly leg-
ible.
• Caution when working: There is a danger to fingers and
hands from the rotating cutting tool.
• Make sure that the machine stands stable on firm
ground.
• Check all power supply lines. Do not use defective
lines.
Base
Accessory pack
Operating handle
2 Hand wheel handles
Chuck key
Chisel
Wooden table
635/400/1010
400/150
240
270/150
220
140
70
25
200
1400
6.35 – 25,.
19.05
220
140
16
91
230V/50 Hz
750
1400
Schuko
english 9
