MINOP inVent trocar 30°
Trocar disassembly
Removing the obturator for working/
drainage channels
Note
This step is only necessary if the obturator for the work-
ing or drainage channel is being used.
►

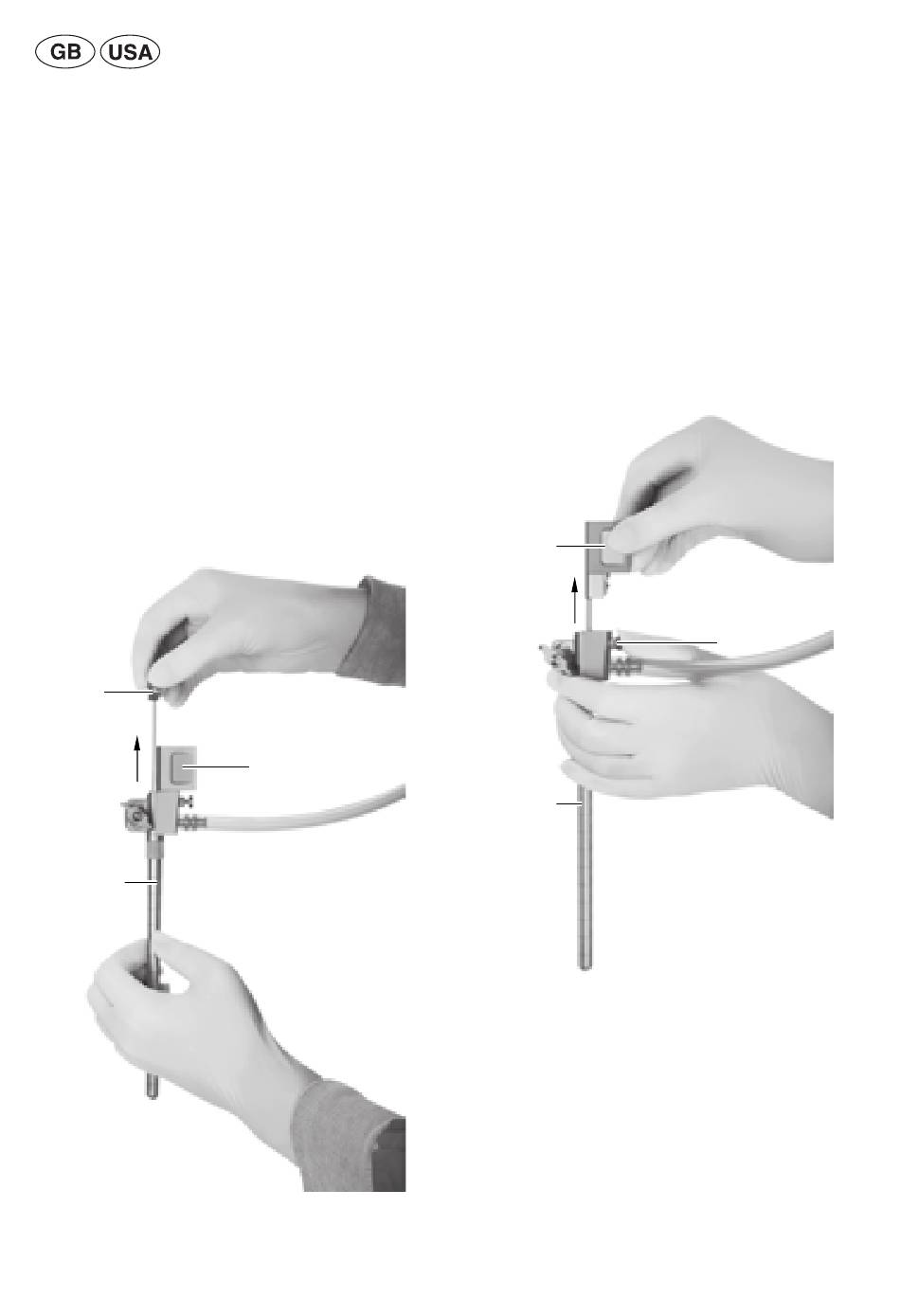

Remove obturator for the oval working channel 7
carefully from the MINOP inVent trocar 1, see Fig. 9.
7
1
Fig. 9
8
8
Removing the obturator for optical chan-
nel or endoscope
►
Press release button 3 and remove the obturator
for the optical channel 8 carefully from the MINOP
inVent trocar 1, see Fig. 10.
8
1
Fig. 10
3
