BAE SA-OH-059-YI-_ _ _ _
Optoelektronische Sensoren
8
Menüstruktur (Fortsetzung)
8.1

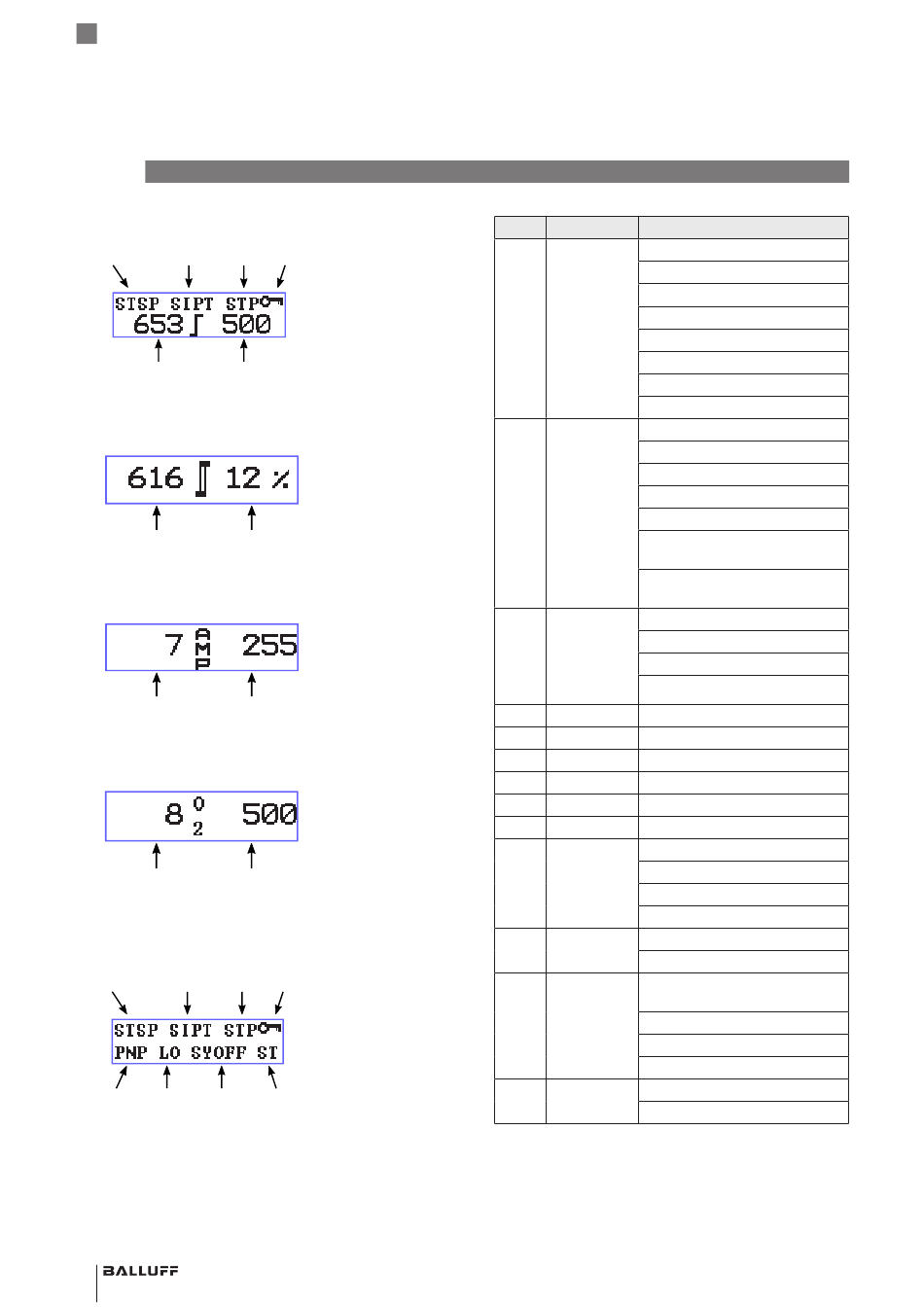

Status View

1 2 3
5 6
Abb. 8-1: Status View - SSC1 SP1
5 7
Abb. 8-2: Status View - Hysterese
5 8
Abb. 8-3: Status View - Verstärkung
5 9
Abb. 8-4: Status View - SSC2 SP1
1 2 3
10 11 12
Abb. 8-5: Status View - Modi
14 deutsch
4
4
13
Wert Bedeutung Beschreibung
1 Speed Mode STSP: Standard 500Hz
FASP: Fast 2kHz
SFSP: Superfast 4kHz
SYN6: Sync 6: 250Hz
SYN8: Sync 8: 150Hz
PRSP: Precision 125Hz
H2SP: High Precision 25Hz
H3SP: High Precision 30Hz
2 SSC1 Mode SIPT: Single Point
WIND: Window
TWPT: Two Point
DY_N: Dynamic, falling edge
DY_P: Dynamic, rising edge
TR_N: Threshold tracking, falling
edge
TR_P: Threshold tracking, rising
edge
3 PowerMode HIP: high power
STP: standard power
LOP: low power
XLP: extra low power
4 Lock Lock active
5 Signal Value Measured signal value
6 SSC1-SP1 SSC1 Setpoint 1
7 Hysteresis Switchpoint hysteresis
8 Amplification Amplifier amplification
9 SSC2-SP1 SSC2 Setpoint 2
10 Pin4 Type PNP: PNP
NPN: NPN
PP: push-pull
OFF: off
11 SSC1 Logic LO: Light on / high active
DO: Dark on / low active
12 Sync Mode SYAUT: senden und empfangen
(Auto)
SYMAS: senden (Master)
SYSLA: empfangen (Slave)
SYOFF: kein Sync
13 Sensor ST: standard
Mode
LA: light array
Tab. 8-1: Menüstruktur-Parameter
