BAE SA-OH-059-YI- ----
Photoelectric Sensors
5

Installation and connection

5.1

Installation

For dimensions, see Fig. 4-1 on page 8.
The following mounting types of the sensor amplifiers are
available:
– Simple clamp mounting on DIN rail with dimension of
DIN 35 mm or 15 mm.
– Screw mounting by means of through holes for M3
screws.
– Clamp mounting on DIN rail adapter by means of M3
screws.

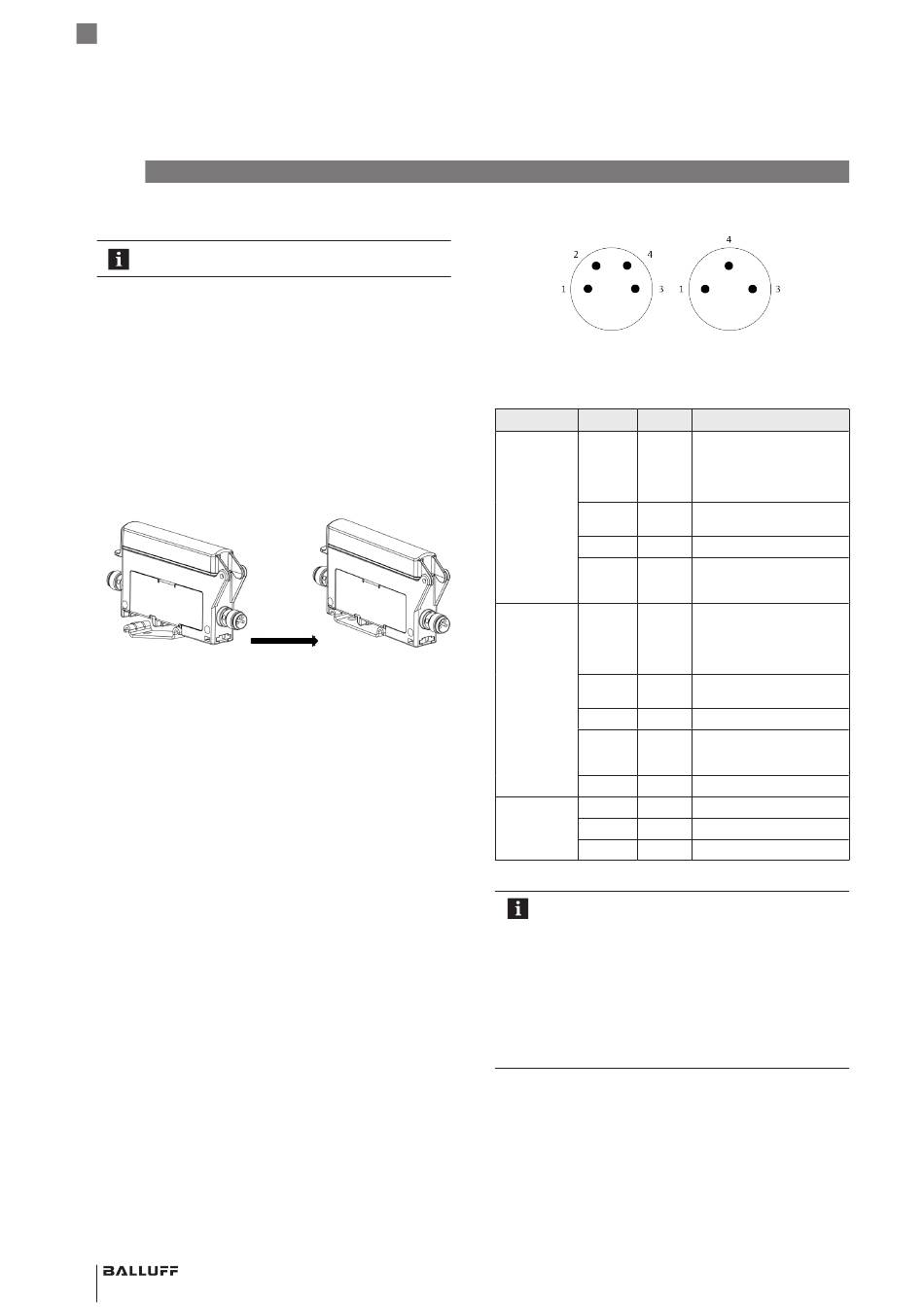

Place the device on the DIN rail adapter as shown. Con-
nect the cable according to the connection table.
Fig. 5-1:
Mounting the amplifier
10 english
5.2

Electrical connection

4-pin (supply)
Fig. 5-2: Electrical connection for the amplifier (4-pin connection only
on variant -S75G).
Connection Pin
1 VDC
4-pin
(supply)
2 I/Q
-S75G
(plug variant)
3 GND
4 C/Q
Brown VDC
5-pin
(supply)
White I/Q
-DP02
(cable
Blue GND
variant)
Black C/Q
Pink TEACH
1 LED+
3-pin
(sensor) 3 FT+
(all versions)
4 GND
Tab. 5-1: Pin Assignment

Factory setting

– Mode: SIO mode
– Operating mode: Standard Power, Standard
Sensor, Standard Speed, Sync Mode Off
– PIN 4/black: PNP switch output
(in IO-Link mode: Push-Pull)
– PIN 2/white: Inactive (PNP)
– Pink on -DP02: Inactive (PNP)
See also document IO-Link-configuration at
www.balluff.com on the product page.
5.3

Shielding and cable routing

The BOH sensor cable is shielded and should not be
extended.
Cable length
For IO-Link operation, the maximum supply cable length is
20 m.
3-pin (sensor)
Signal
L+ (operating voltage+
SIO 15...30V,
IO-Link 18...30V)
Max. current consumption:
45mA
Digital input /
Digital output
L- (operating voltage- 0V)
IO-Link communication /
digital output in SIO mode
L+ (operating voltage+
SIO 15...30V,
IO-Link 18...30V)
Max. current consumption:
45mA
Digital input /
Digital output
L- (operating voltage- 0V)
IO-Link communication /
digital output in SIO mode
External teach (input)
Transmitter (LED)
Receiver (phototransistor)
0V / cable shield
