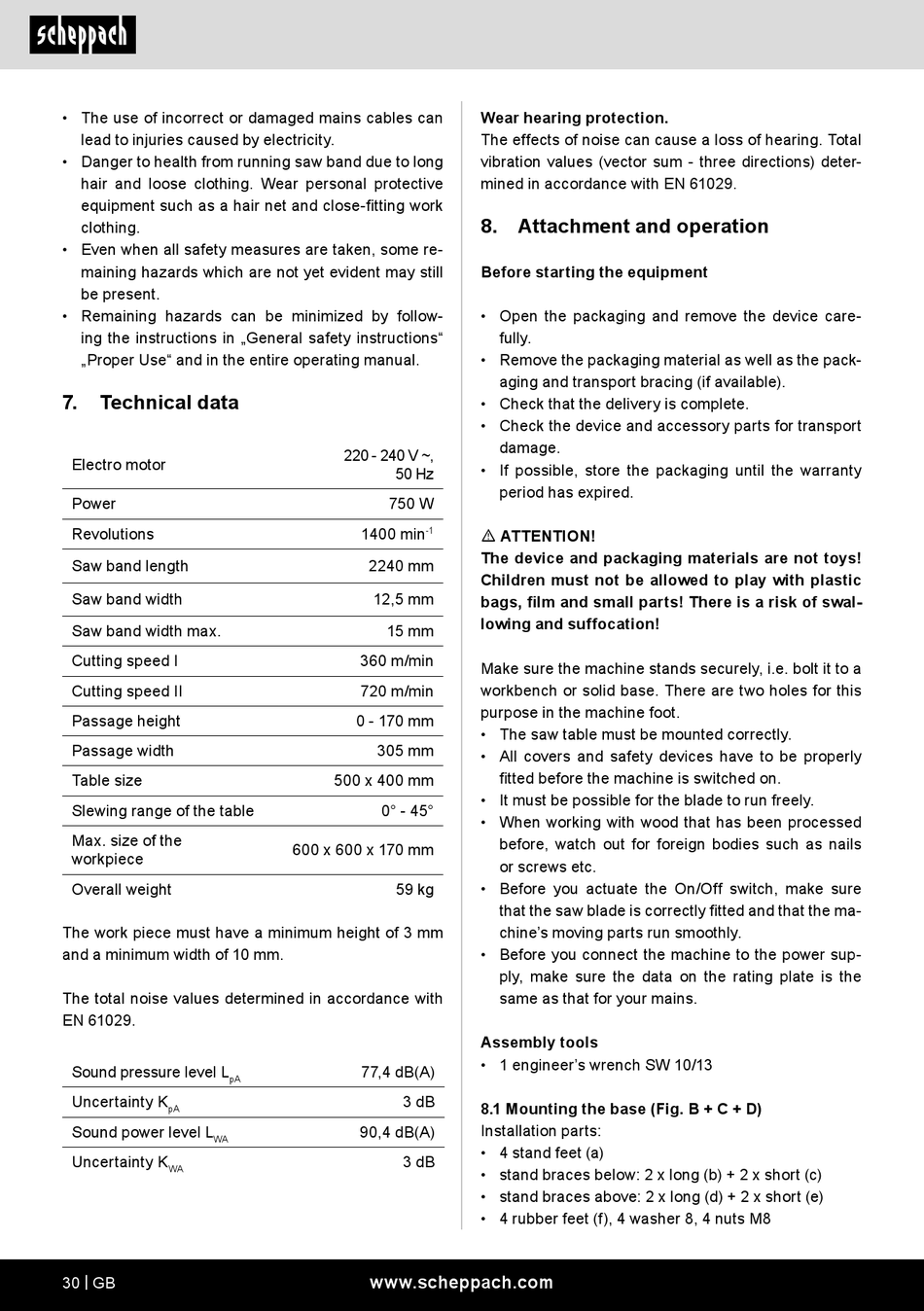

• The use of incorrect or damaged mains cables can
lead to injuries caused by electricity.
• Danger to health from running saw band due to long
hair and loose clothing. Wear personal protective
equipment such as a hair net and close-fitting work
clothing.
• Even when all safety measures are taken, some re-
maining hazards which are not yet evident may still
be present.
• Remaining hazards can be minimized by follow-
ing the instructions in „General safety instructions"
„Proper Use" and in the entire operating manual.
7.

Technical data

Electro motor
Power
Revolutions
Saw band length
Saw band width
Saw band width max.
Cutting speed I
Cutting speed II
Passage height
Passage width
Table size
Slewing range of the table
Max. size of the
workpiece
Overall weight
The work piece must have a minimum height of 3 mm
and a minimum width of 10 mm.
The total noise values determined in accordance with
EN 61029.
Sound pressure level L
pA
Uncertainty K
pA
Sound power level L
WA
Uncertainty K
WA
30 | GB
220 - 240 V ~,
50 Hz
750 W
1400 min
-1
2240 mm
12,5 mm
15 mm
360 m/min
720 m/min
0 - 170 mm
305 mm
500 x 400 mm
0° - 45°
600 x 600 x 170 mm
59 kg
77,4 dB(A)
3 dB
90,4 dB(A)
3 dB
www.scheppach.com
Wear hearing protection.
The effects of noise can cause a loss of hearing. Total
vibration values (vector sum - three directions) deter-
mined in accordance with EN 61029.

8. Attachment and operation

Before starting the equipment
• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the pack-
aging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, store the packaging until the warranty
period has expired.
m ATTENTION!
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!
Make sure the machine stands securely, i.e. bolt it to a
workbench or solid base. There are two holes for this
purpose in the machine foot.
• The saw table must be mounted correctly.
• All covers and safety devices have to be properly
fitted before the machine is switched on.
• It must be possible for the blade to run freely.
• When working with wood that has been processed
before, watch out for foreign bodies such as nails
or screws etc.
• Before you actuate the On/Off switch, make sure
that the saw blade is correctly fitted and that the ma-
chine's moving parts run smoothly.
• Before you connect the machine to the power sup-
ply, make sure the data on the rating plate is the
same as that for your mains.
Assembly tools
• 1 engineer's wrench SW 10/13
8.1 Mounting the base (Fig. B + C + D)
Installation parts:
• 4 stand feet (a)
• stand braces below: 2 x long (b) + 2 x short (c)
• stand braces above: 2 x long (d) + 2 x short (e)
• 4 rubber feet (f), 4 washer 8, 4 nuts M8
