Setup

Autoclave

The setup is easy. Either put the autoclave on a table or the floor, so that an ideal working height is
•
given.
• Unpack the manometer and the steam release spigot, insert them with the gasket through the
opening on the left and right of the lid and fix them with the nut from the inside of the lid.
We recommend mounting a temperature-resistant hose to the steam release spigot, inner ø 10 mm.
•
(Art. no. 8582012)
• Plug in the connecting cable to the socket on the back side. Connect the other end to the
MultiControl 2 controller.

Controller

1. Connect the controller unit (port 4) with a heater/autoclave using the connecting cable.
2. Connect the controller (port 5) to the power socket using the power cord.
3. Screw on the cable of the PT100 sensor (port 3).
4. Optionally connect a log printer (Port 2)
5. The controller can be mounted on the wall using the side brackets of the casing.
CertoClav Sterilizer GmbH
Peintner Strasse 10
A-4060 Leonding / Austria
www.certoclav.com support@certoclav.com
Page 32 of 44

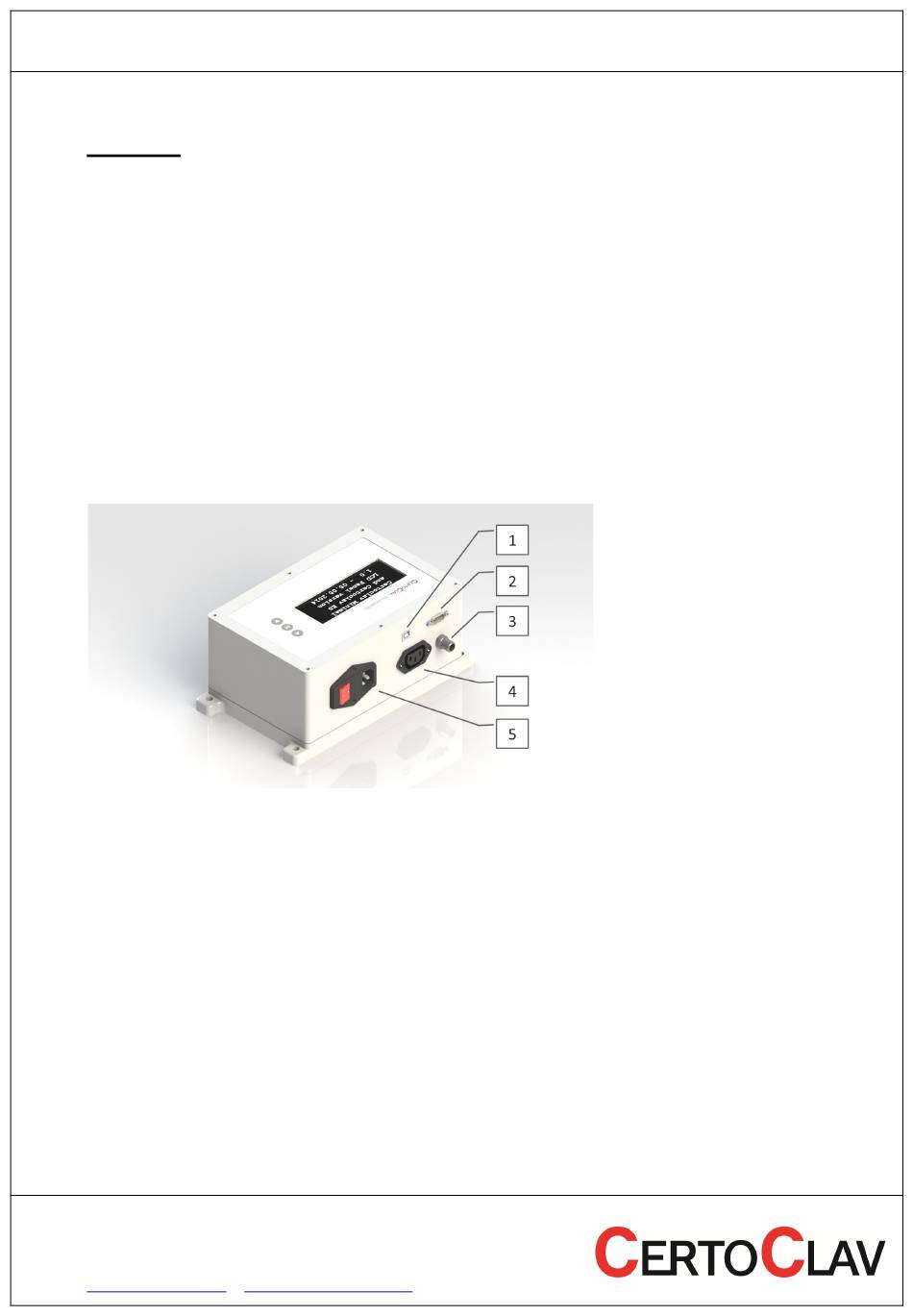

1) USB port for PC
2) Log printer port
3) Port for a 4-wire PT100
temperature sensor
4) Port for connection to a
heater or autoclave (220V,
10A max)
5) Power cord connector with
ON/OFF switch
