If your configuration differs from the Lenze settings, please read the instructions
given under "Individual settings".
Please observe
- that the setpoint range is set correctly by using the DIP switch at the function
module
- and that C0034 is adapted to the settings of the DIP switch.
- Example: Setpoint selection (0 ... 5 V) via potentiometer at X3/7, X3/8 and X3/9
ð C0034 = 0, DIP switch 1 = OFF, 2 = OFF, 3 = ON, 4 = OFF, 5 = OFF
The controller is only ready for operation, if a HIGH signal is applied to X3/28
(controller enable via terminal).
- Please observe that the controller can be inhibited through several sources. All
sources act like a series connection of switches.
- If the drive does not start although the controller has been enabled through X3/28,
check whether the controller is inhibited through a different source.
Step
Lenze setting
1. Attach
keypad
2. Apply mains
The controller is ready for operation after approx. 1 second.
voltage
The controller is inhibited.
3. Control
digital inputs
CW
rotation
CCW
rotation
4. Select the
Set a voltage of 0 ... +10 V at X3/8.
setpoint
5. Enable the
X3/28 = HIGH (+12 ... +30 V)
controller via
terminal
l

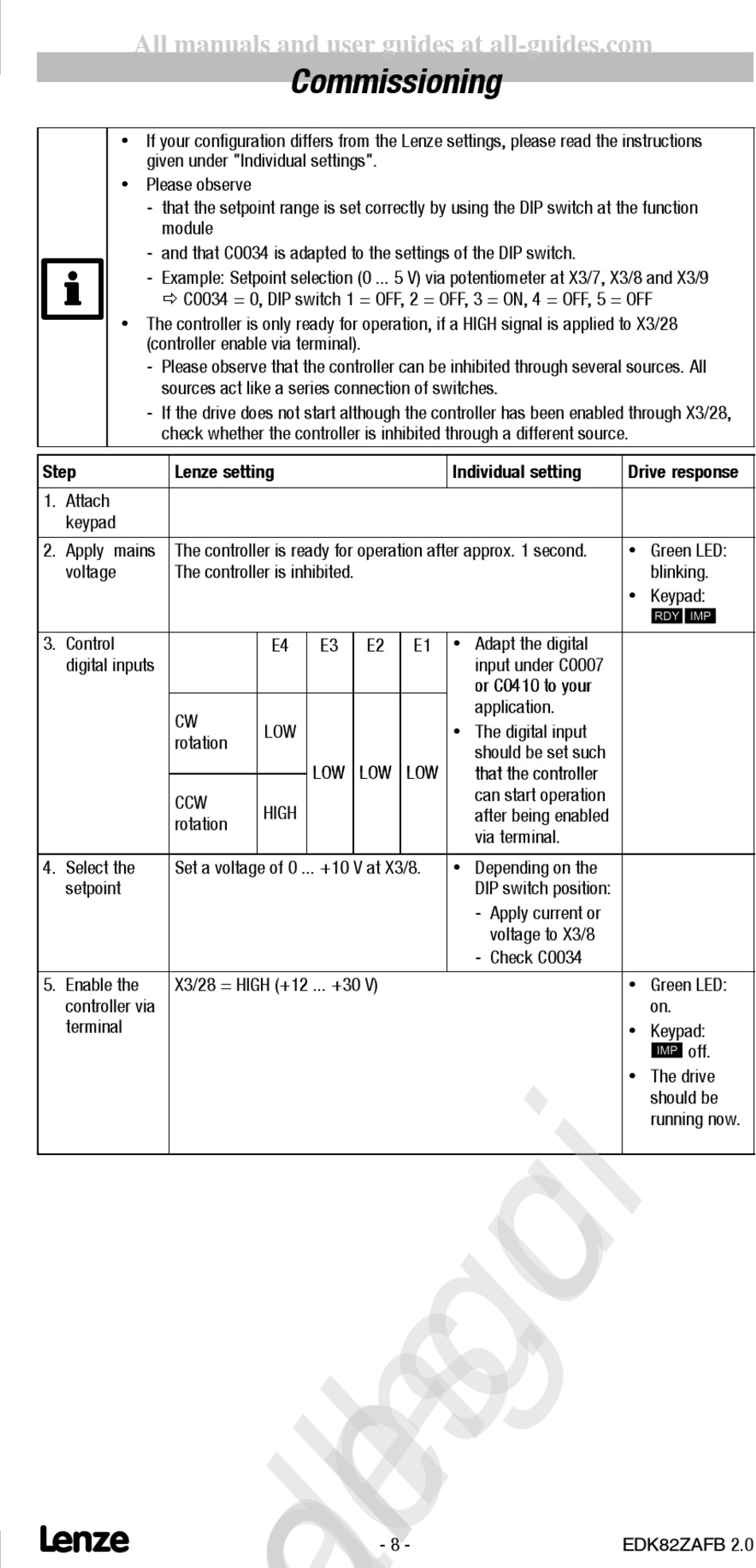

Commissioning
E4
E3
E2
LOW
LOW LOW LOW
LOW LOW LOW
HIGH
- 8 -
Individual setting
Adapt the digital
E1
input under C0007
or C0410 to your
or C0410 to your
application.
The digital input
should be set such
that the controller
that the controller
can start operation
after being enabled
via terminal.
Depending on the
DIP switch position:
- Apply current or
voltage to X3/8
- Check C0034
Drive response
Green LED:
blinking.
Keypad:
dc
Green LED:
on.
Keypad:
c
off.
The drive
should be
running now.
EDK82ZAFB 2.0
