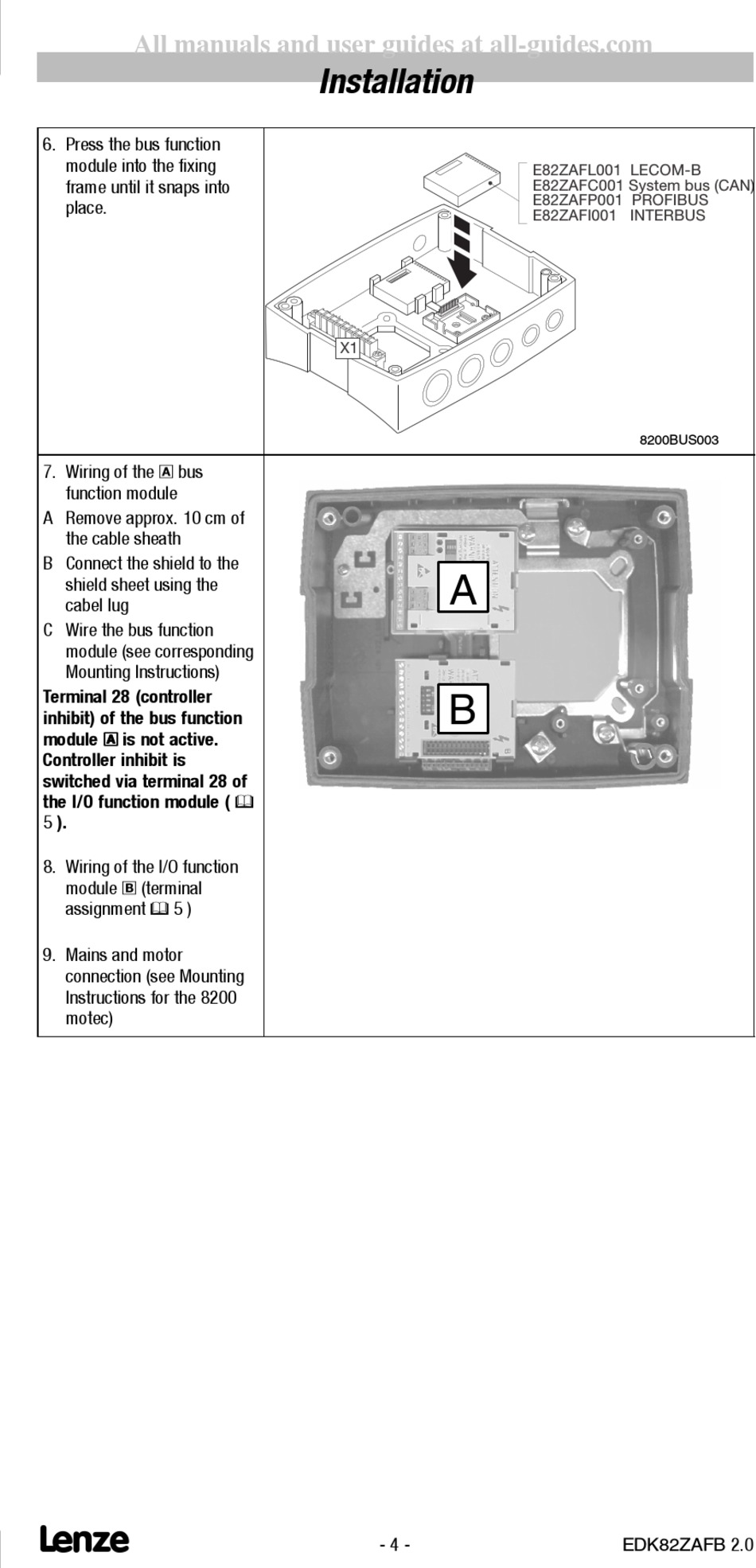

6. Press the bus function
module into the fixing
frame until it snaps into
place.
7. Wiring of the 0 bus
function module
A Remove approx. 10 cm of
the cable sheath
B Connect the shield to the
shield sheet using the
cabel lug
C Wire the bus function
module (see corresponding
Mounting Instructions)
Terminal 28 (controller
inhibit) of the bus function
module 0 0 0 0 is not active.
Controller inhibit is
switched via terminal 28 of
the I/O function module ( ¶
5 ).
8. Wiring of the I/O function
module 1 (terminal
assignment ¶ 5 )
9. Mains and motor
connection (see Mounting
Instructions for the 8200
motec)
l
Installation
X1
A
B
- 4 -
E82ZAFL001 LECOM-B
E82ZAFC001 System bus (CAN)
E82ZAFP001 PROFIBUS
E82ZAFI001 INTERBUS
8200BUS003
EDK82ZAFB 2.0
