Attaching The Exhaust Hood - hanseatic SY-3288C-E2-C64-L54-900 Gebrauchsanleitung

12x
(6)

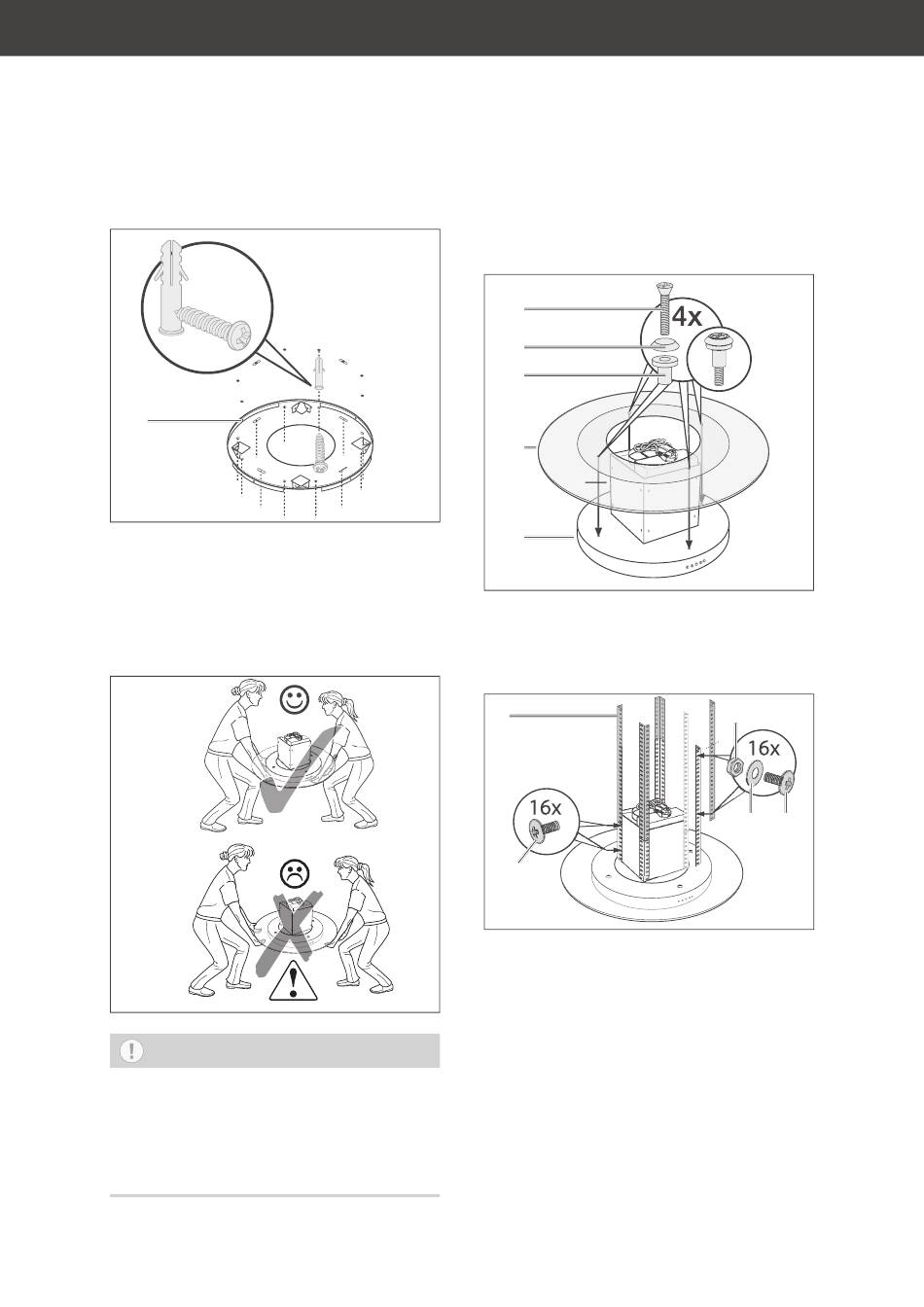

6. Screw the base plate (6) into the ceiling
with screws.

Attaching the exhaust hood

NOTICE
Risk of damage to property!
■ When lifting and carrying the ex-
haust hood, always carry it by the
housing and never by the glass cover!
This could otherwise break.
Assembly
1. If there is a blue protective film on the top
part of the exhaust hood (1), remove it.
(7)
(8)
(9)
(2)
(1)
2. Place the glass cover (2) on the exhaust
hood (1) and attach using the screws (7),
conical washers (8) and the rubber fit-
tings (9).
(5)
(10)
3. Screw four mounting rails (5) to the ex-
haust hood (1) using four screws (10) in
each case.
4. First attach the four other mounting rails
to the already attached mounting rails
(5) using four screws (10), four washers
(12) and four nuts (11) each, so that the
exhaust hood hangs at the correct height
later on (they must protrude at least one
hole width over the lower mounting rails
so that they can be firmly attached to the
base plate (6) later).
Page EN-13
(11)
(12)
(10)
