led 1 (green / red)
LeD States
Display
green red
on off Acceleration phase when Power ON
flashes slowly off Operating status AUTO (AUTOMATIC)
flashing flashing
MANUAL operating status
alternating
flashes quickly off X.TUNE function
off on ERROR (see operating instructions)
flashing flashing AUTO operating status for sensor break
detection
slow
Tab. 11: Display LED 1
led 2 (green / yellow)
LeD States
Display
green yellow
on off Actuator closed
off on Actuator open
flashes Remaining control deviation
off
slowly (actual value > set-point value)
flashes Remaining control deviation
off
slowly (actual value < set-point value)
flashes
off Closing in MANUAL operating status
quickly
flashes
off Opening in MANUAL operating status
quickly
Tab. 12: Display LED 2
24
All manuals and user guides at all-guides.com
english
Type 8694
Safety Positions

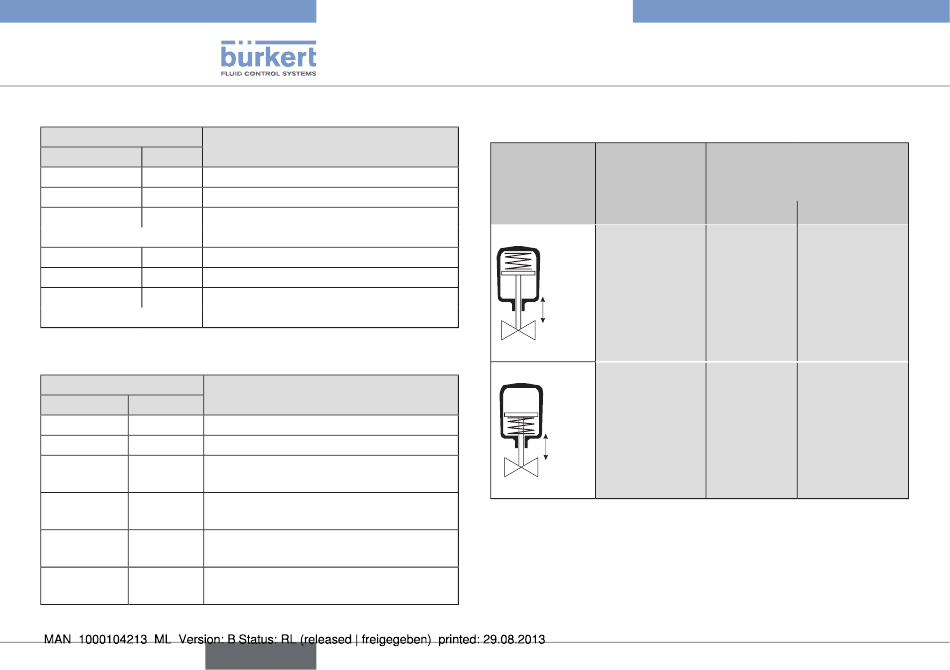

11. safeTy PosiTions
actuator
designation
system
single-acting
Control
up
function A
down
single-acting
Control
up
function B
down
Tab. 13: Safety positions
safety positions after
failure of the auxiliary
power
electrical pneumatic
pilot-controlled
control system:
down
down
direct-acting
control system:
not defined
pilot-controlled
control system:
up
up
direct-acting
control system:
not defined
