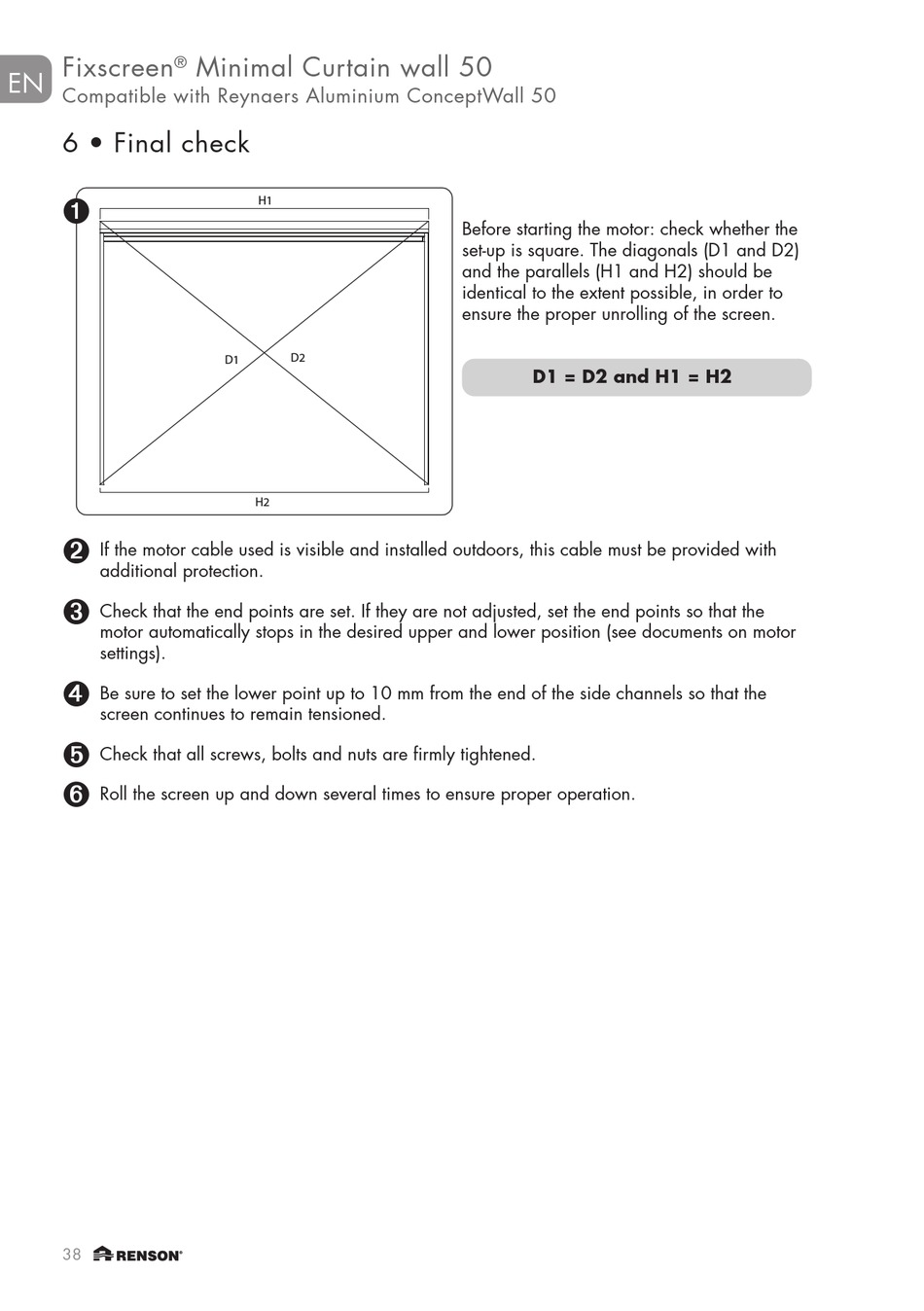

Final Check - Renson Fixscreen Minimal Montageanleitung

Fixscreen
®
en
Compatible with Reynaers Aluminium ConceptWall 50
6 • Final check
➊
➋
If the motor cable used is visible and installed outdoors, this cable must be provided with
additional protection.
➌
Check that the end points are set. If they are not adjusted, set the end points so that the
motor automatically stops in the desired upper and lower position (see documents on motor
settings).
➍
Be sure to set the lower point up to 10 mm from the end of the side channels so that the
screen continues to remain tensioned.
➎
Check that all screws, bolts and nuts are firmly tightened.
➏
Roll the screen up and down several times to ensure proper operation.
38
Minimal Curtain wall 50
H1
D2
D1
H2
Before starting the motor: check whether the
set-up is square. The diagonals (D1 and D2)
and the parallels (H1 and H2) should be
identical to the extent possible, in order to
ensure the proper unrolling of the screen.
D1 = D2 and H1 = H2
