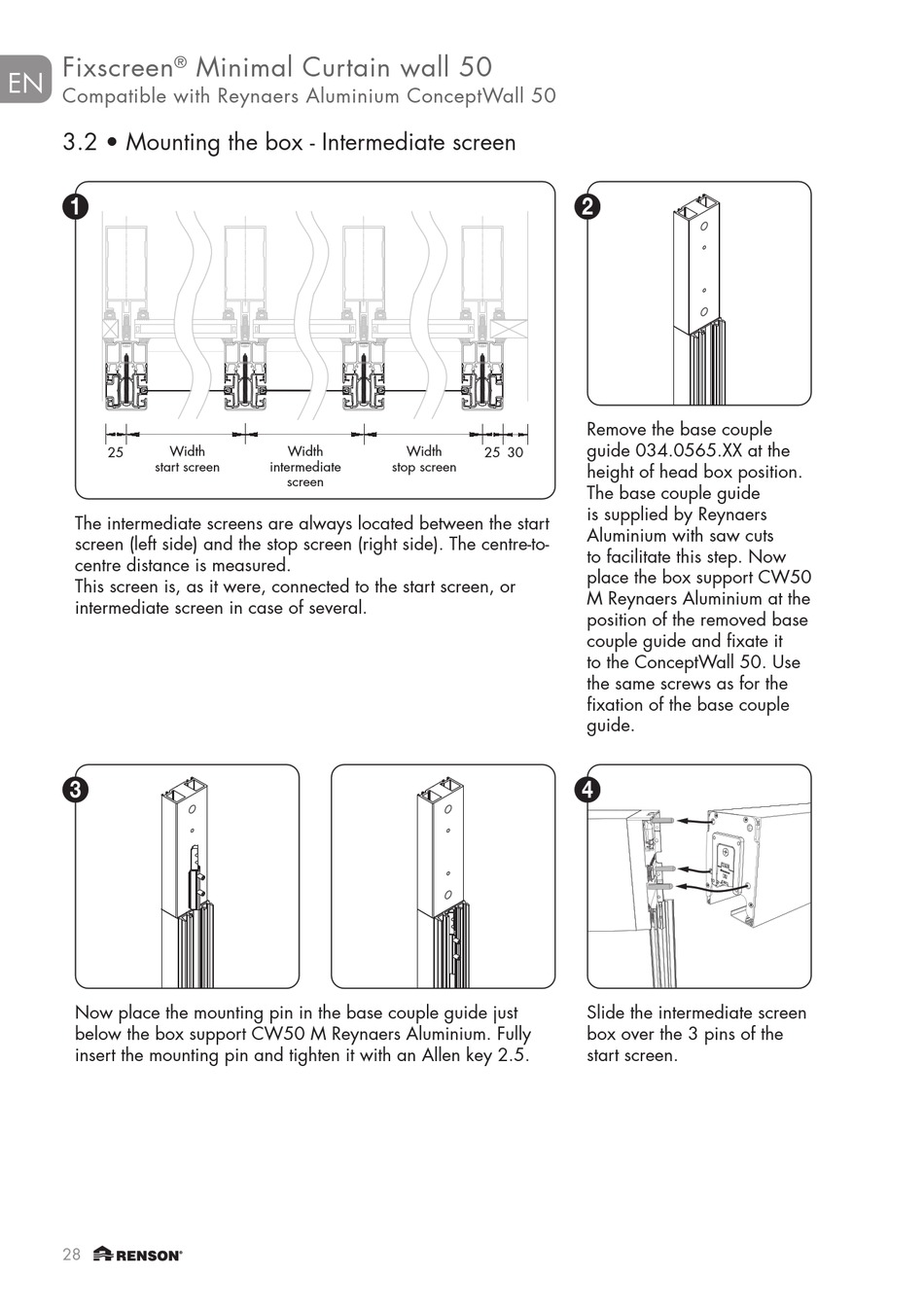

3.2 • Mounting the box - Intermediate screen
1
Width
25
start screen
The intermediate screens are always located between the start
screen (left side) and the stop screen (right side). The centre-to-
centre distance is measured.
This screen is, as it were, connected to the start screen, or
intermediate screen in case of several.
3
Now place the mounting pin in the base couple guide just
below the box support CW50 M Reynaers Aluminium. Fully
insert the mounting pin and tighten it with an Allen key 2.5.
28
Minimal Curtain wall 50
CF2
Width
intermediate
screen
Width
25 30
stop screen
2
Remove the base couple
guide 034.0565.XX at the
height of head box position.
The base couple guide
is supplied by Reynaers
Aluminium with saw cuts
to facilitate this step. Now
place the box support CW50
M Reynaers Aluminium at the
position of the removed base
couple guide and fixate it
to the ConceptWall 50. Use
the same screws as for the
fixation of the base couple
guide.
4
Slide the intermediate screen
box over the 3 pins of the
start screen.
