Compatible with Reynaers Aluminium ConceptWall 50

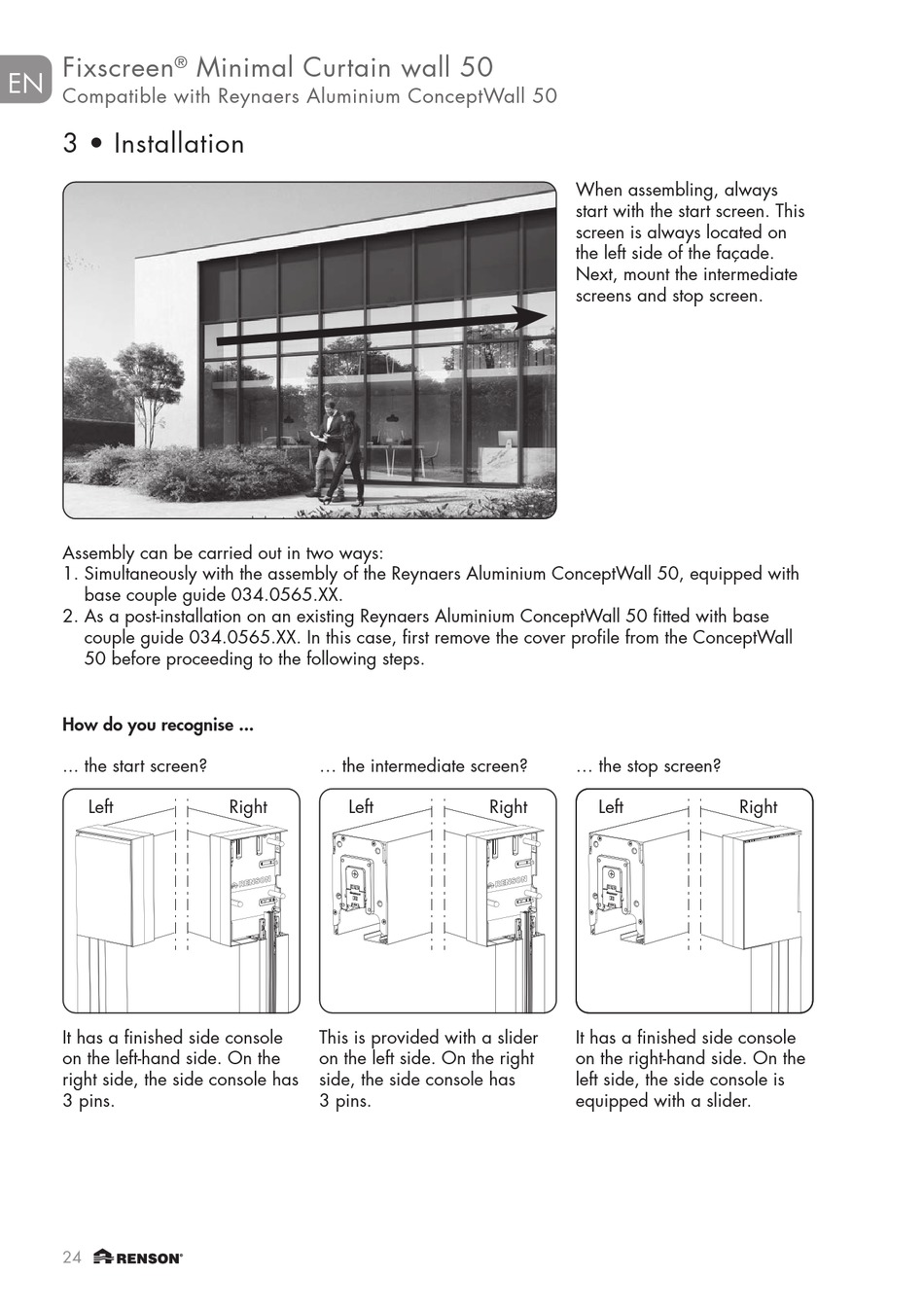

3 • Installation
Assembly can be carried out in two ways:
1. Simultaneously with the assembly of the Reynaers Aluminium ConceptWall 50, equipped with
base couple guide 034.0565.XX.
2. As a post-installation on an existing Reynaers Aluminium ConceptWall 50 fitted with base
couple guide 034.0565.XX. In this case, first remove the cover profile from the ConceptWall
50 before proceeding to the following steps.
How do you recognise ...
... the start screen?
Left
It has a finished side console
on the left-hand side. On the
right side, the side console has
3 pins.
24
Minimal Curtain wall 50
... the intermediate screen?
Right Left
This is provided with a slider
on the left side. On the right
side, the side console has
3 pins.
When assembling, always
start with the start screen. This
screen is always located on
the left side of the façade.
Next, mount the intermediate
screens and stop screen.
... the stop screen?
Right Left
It has a finished side console
on the right-hand side. On the
left side, the side console is
equipped with a slider.
Right
