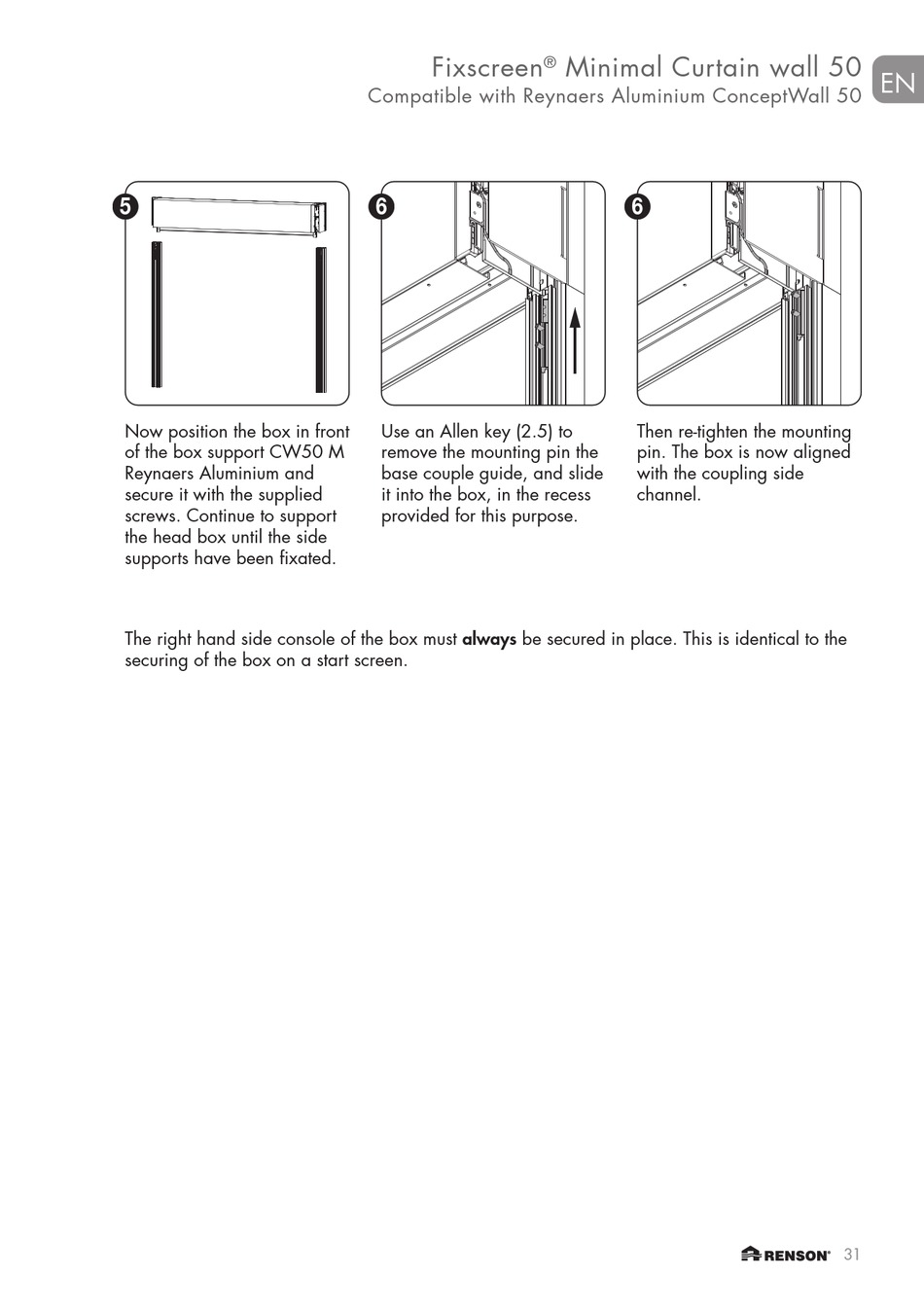

Now position the box in front
of the box support CW50 M
Reynaers Aluminium and
secure it with the supplied
screws. Continue to support
the head box until the side
supports have been fixated.
The right hand side console of the box must always be secured in place. This is identical to the
securing of the box on a start screen.
Fixscreen
Compatible with Reynaers Aluminium ConceptWall 50
6
Use an Allen key (2.5) to
remove the mounting pin the
base couple guide, and slide
it into the box, in the recess
provided for this purpose.
Minimal Curtain wall 50
®
6
Then re-tighten the mounting
pin. The box is now aligned
with the coupling side
channel.
