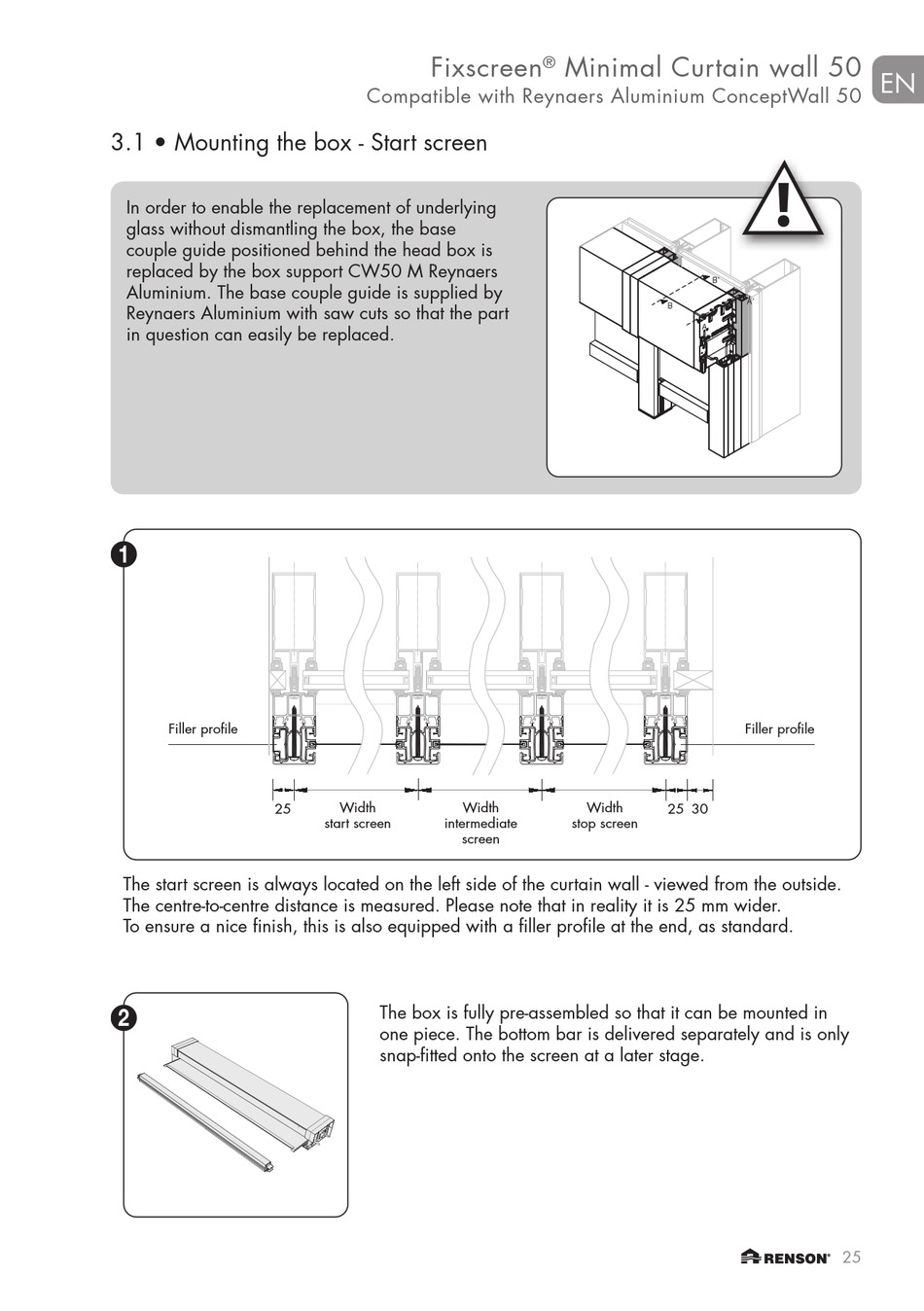

3.1 • Mounting the box - Start screen
In order to enable the replacement of underlying
glass without dismantling the box, the base
couple guide positioned behind the head box is
replaced by the box support CW50 M Reynaers
Aluminium. The base couple guide is supplied by
Reynaers Aluminium with saw cuts so that the part
in question can easily be replaced.
1
Filler profile
25
The start screen is always located on the left side of the curtain wall - viewed from the outside.
The centre-to-centre distance is measured. Please note that in reality it is 25 mm wider.
To ensure a nice finish, this is also equipped with a filler profile at the end, as standard.
2
Fixscreen
Compatible with Reynaers Aluminium ConceptWall 50
Max 25 mm
CF2
CF1
Width Width
start screen intermediate
screen
The box is fully pre-assembled so that it can be mounted in
one piece. The bottom bar is delivered separately and is only
snap-fitted onto the screen at a later stage.
