Renson Fixscreen Minimal Montageanleitung Seite 35

6
 

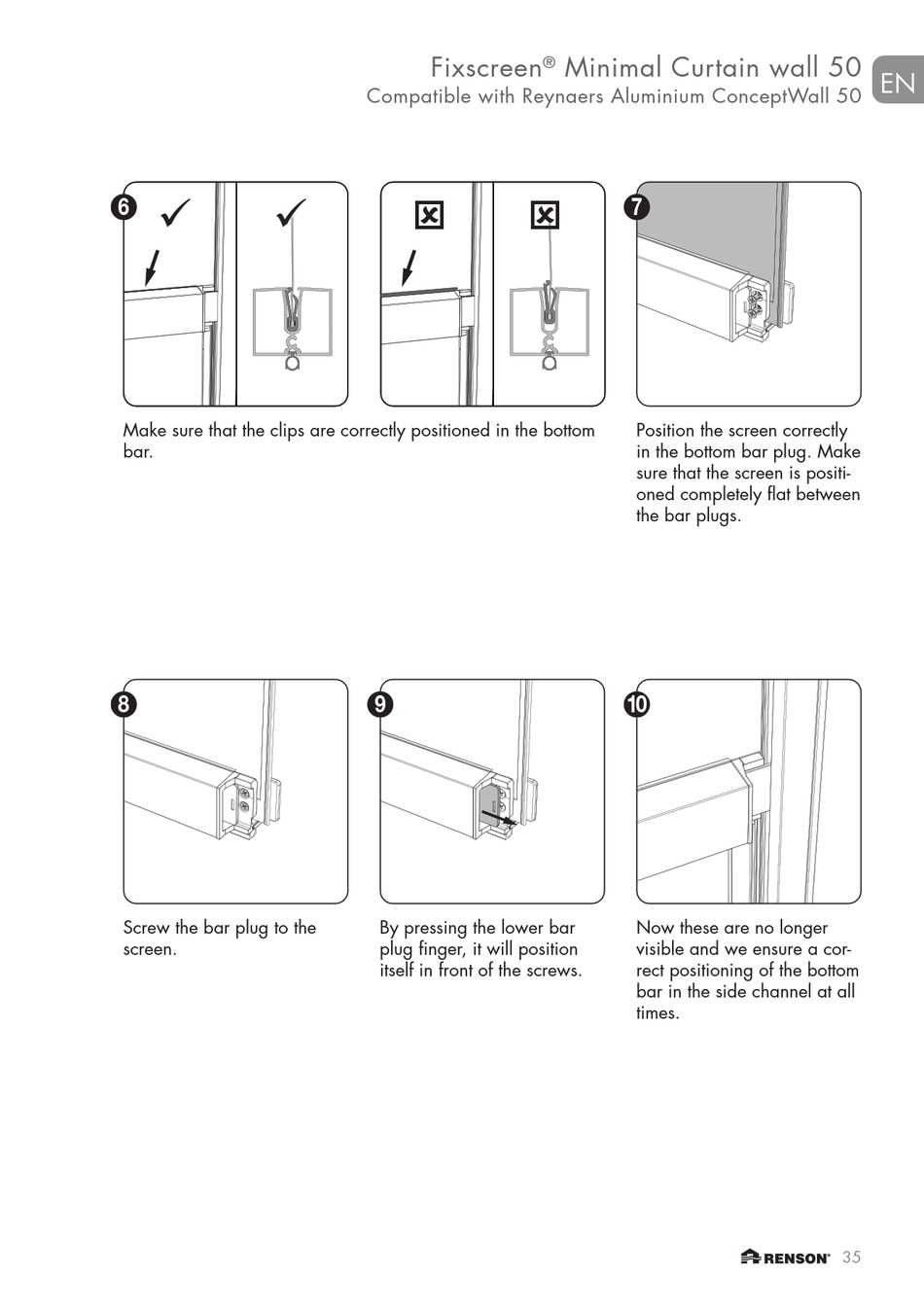

Make sure that the clips are correctly positioned in the bottom
bar.
8
Screw the bar plug to the
screen.
Fixscreen
Compatible with Reynaers Aluminium ConceptWall 50
 
9
By pressing the lower bar
plug finger, it will position
itself in front of the screws.
Minimal Curtain wall 50
®
7
Position the screen correctly
in the bottom bar plug. Make
sure that the screen is positi-
oned completely flat between
the bar plugs.
10
Now these are no longer
visible and we ensure a cor-
rect positioning of the bottom
bar in the side channel at all
times.
en
35
