Fixscreen
®
en
Compatible with Reynaers Aluminium ConceptWall 50

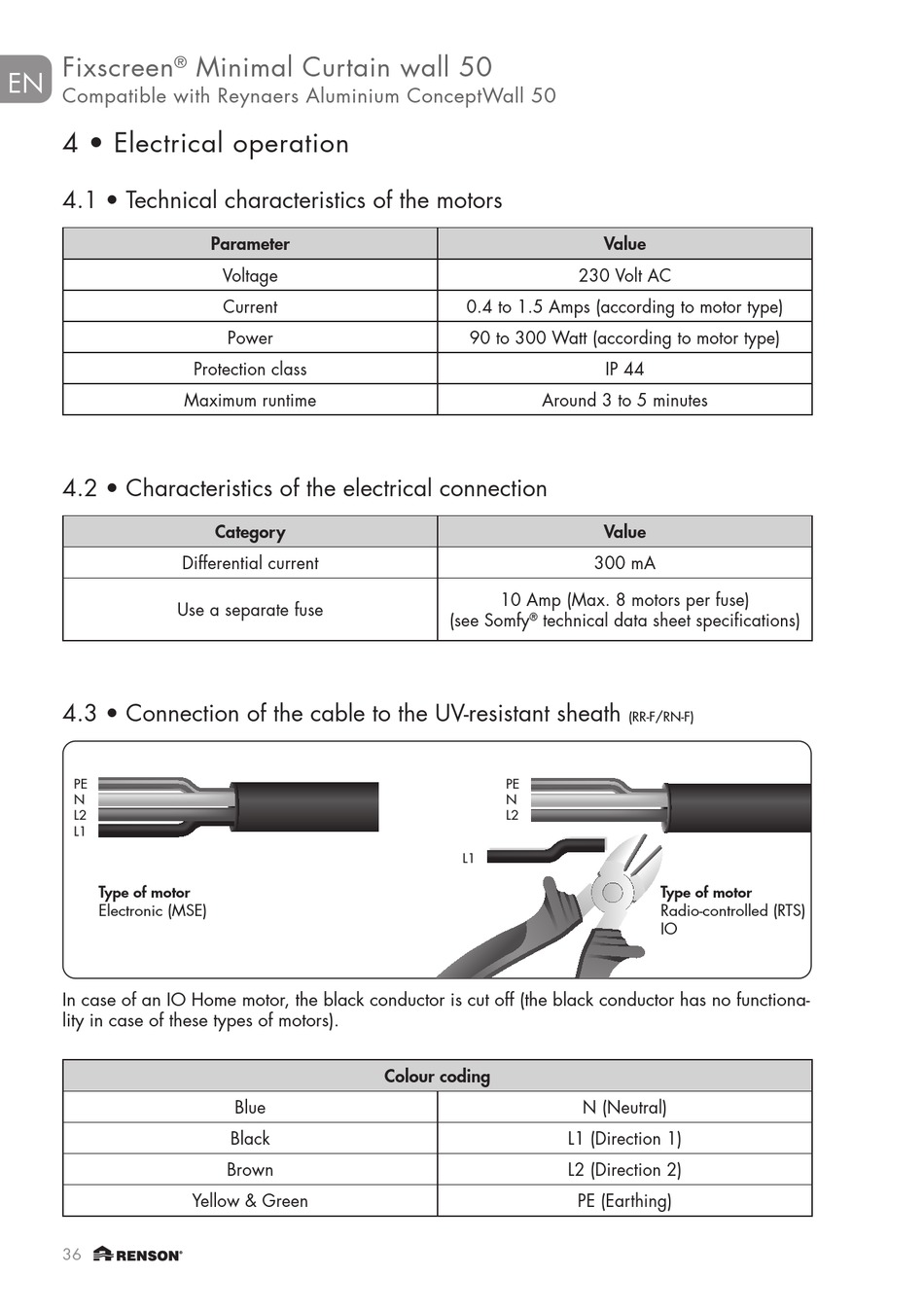

4 • Electrical operation
4.1 • Technical characteristics of the motors
4.2 • Characteristics of the electrical connection
Differential current
Use a separate fuse
4.3 • Connection of the cable to the UV-resistant sheath
PE
N
L2
L1
Type of motor
Electronic (MSE)
In case of an IO Home motor, the black conductor is cut off (the black conductor has no functiona-
lity in case of these types of motors).
36
Minimal Curtain wall 50
Parameter
Voltage
Current
Power
Protection class
Maximum runtime
Category
Blue
Black
Brown
Yellow & Green
0.4 to 1.5 Amps (according to motor type)
90 to 300 Watt (according to motor type)
Around 3 to 5 minutes
10 Amp (Max. 8 motors per fuse)
(see Somfy technical data sheet specifications)
®
PE
N
L2
L1
Colour coding
Value
230 Volt AC
IP 44
Value
300 mA

(RR-F/RN-F)

Type of motor
Radio-controlled (RTS)
IO
N (Neutral)
L1 (Direction 1)
L2 (Direction 2)
PE (Earthing)
