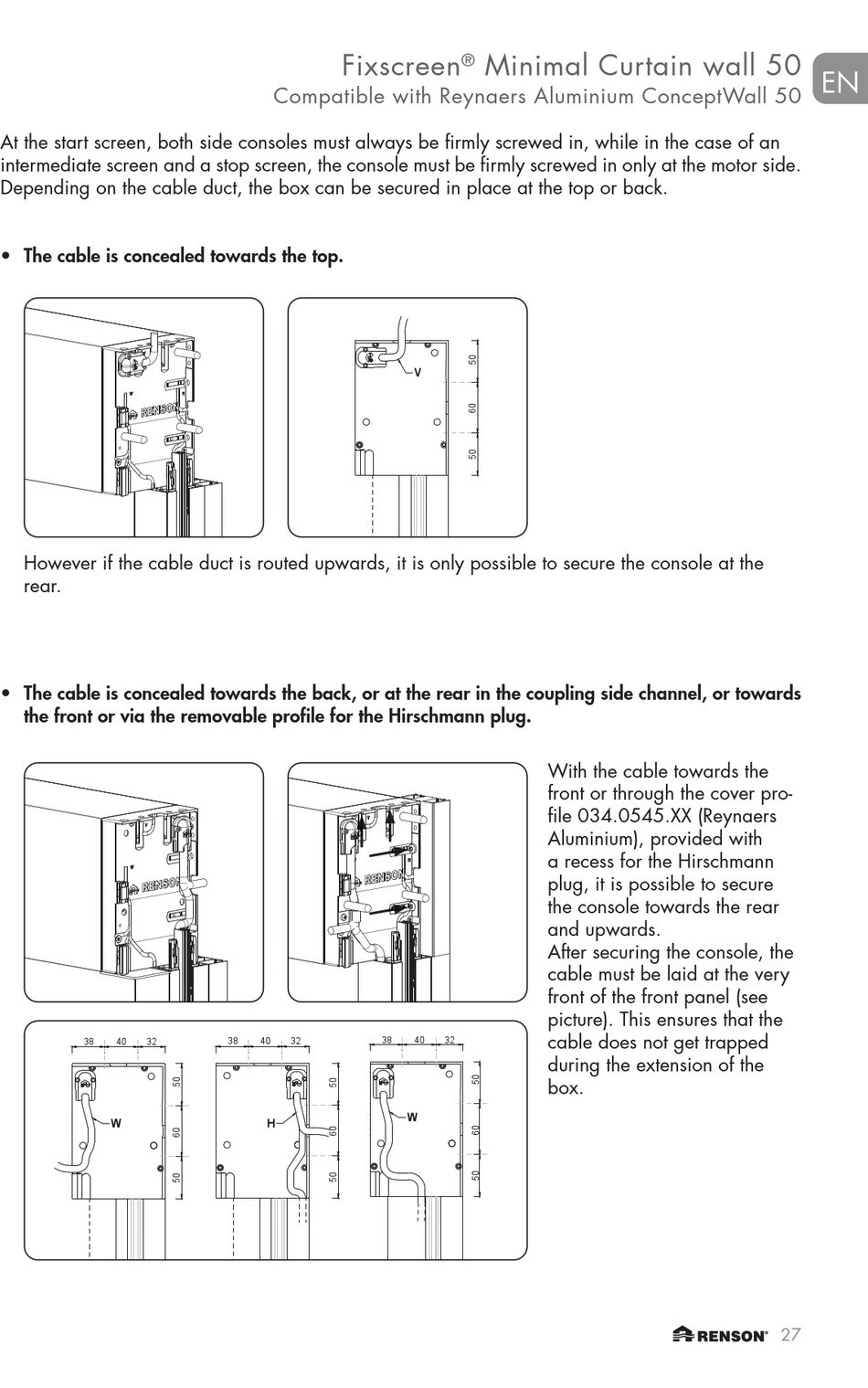

At the start screen, both side consoles must always be firmly screwed in, while in the case of an
intermediate screen and a stop screen, the console must be firmly screwed in only at the motor side.
Depending on the cable duct, the box can be secured in place at the top or back.
• The cable is concealed towards the top.
110
However if the cable duct is routed upwards, it is only possible to secure the console at the
rear.
• The cable is concealed towards the back, or at the rear in the coupling side channel, or towards
the front or via the removable profile for the Hirschmann plug.
38 40 32
114
V
H
38 40 32
H
38 40
38 40
38 40 32
38
110
V
W
W H
Fixscreen
Compatible with Reynaers Aluminium ConceptWall 50
V
32
32 38 40 32
40 32
V
W
W
Minimal Curtain wall 50
®
38 40 32
W
With the cable towards the
front or through the cover pro-
file 034.0545.XX (Reynaers
Aluminium), provided with
a recess for the Hirschmann
plug, it is possible to secure
the console towards the rear
and upwards.
After securing the console, the
cable must be laid at the very
front of the front panel (see
picture). This ensures that the
cable does not get trapped
38 40 32
during the extension of the
box.
W
en
38 40 32
W
38 40 32
W
