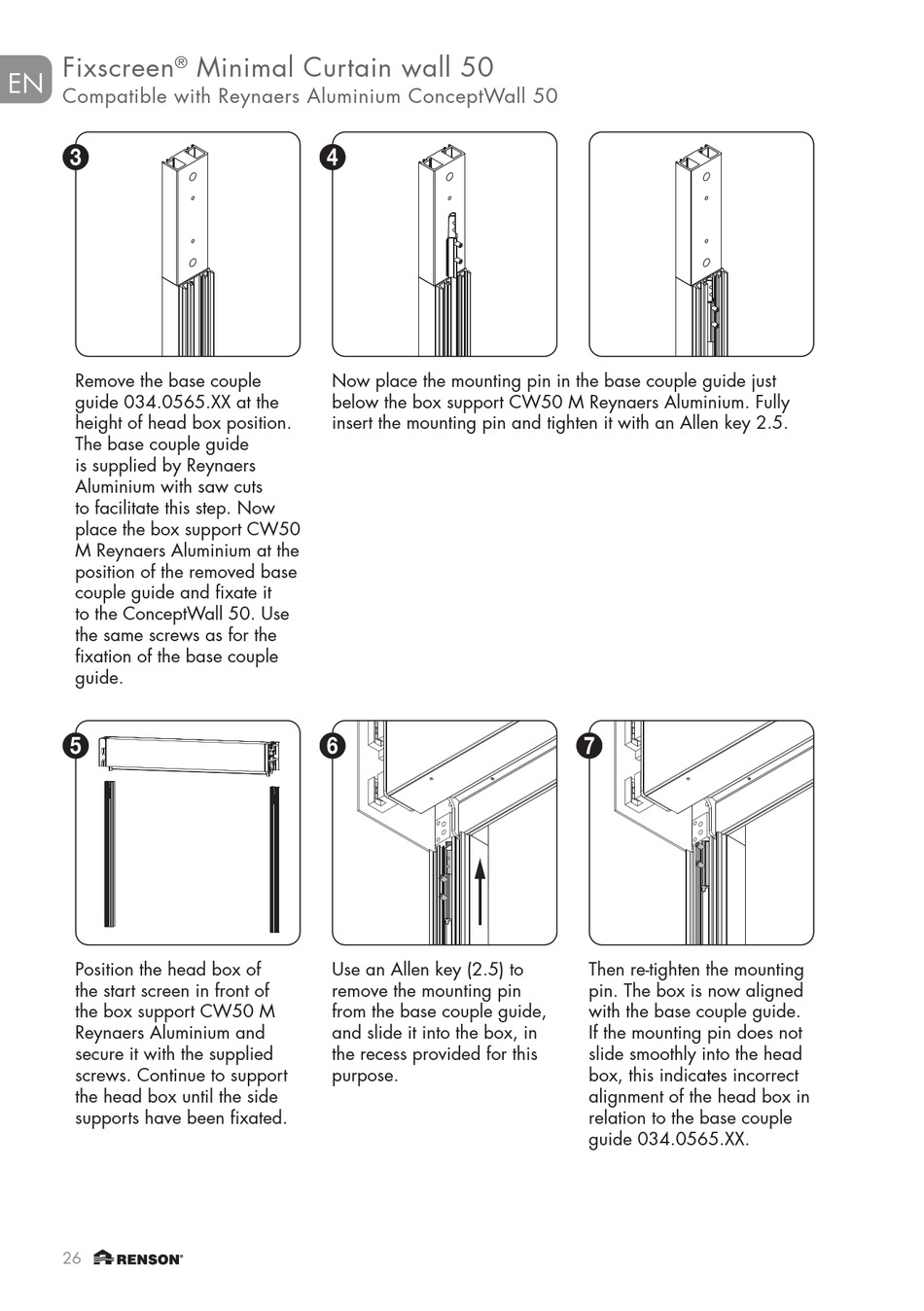

Renson Fixscreen Minimal Montageanleitung Seite 26

Fixscreen
®
en
Compatible with Reynaers Aluminium ConceptWall 50
3
Remove the base couple
guide 034.0565.XX at the
height of head box position.
The base couple guide
is supplied by Reynaers
Aluminium with saw cuts
to facilitate this step. Now
place the box support CW50
M Reynaers Aluminium at the
position of the removed base
couple guide and fixate it
to the ConceptWall 50. Use
the same screws as for the
fixation of the base couple
guide.
5
Position the head box of
the start screen in front of
the box support CW50 M
Reynaers Aluminium and
secure it with the supplied
screws. Continue to support
the head box until the side
supports have been fixated.
26
Minimal Curtain wall 50
4
Now place the mounting pin in the base couple guide just
below the box support CW50 M Reynaers Aluminium. Fully
insert the mounting pin and tighten it with an Allen key 2.5.
6
Use an Allen key (2.5) to
remove the mounting pin
from the base couple guide,
and slide it into the box, in
the recess provided for this
purpose.
7
Then re-tighten the mounting
pin. The box is now aligned
with the base couple guide.
If the mounting pin does not
slide smoothly into the head
box, this indicates incorrect
alignment of the head box in
relation to the base couple
guide 034.0565.XX.
