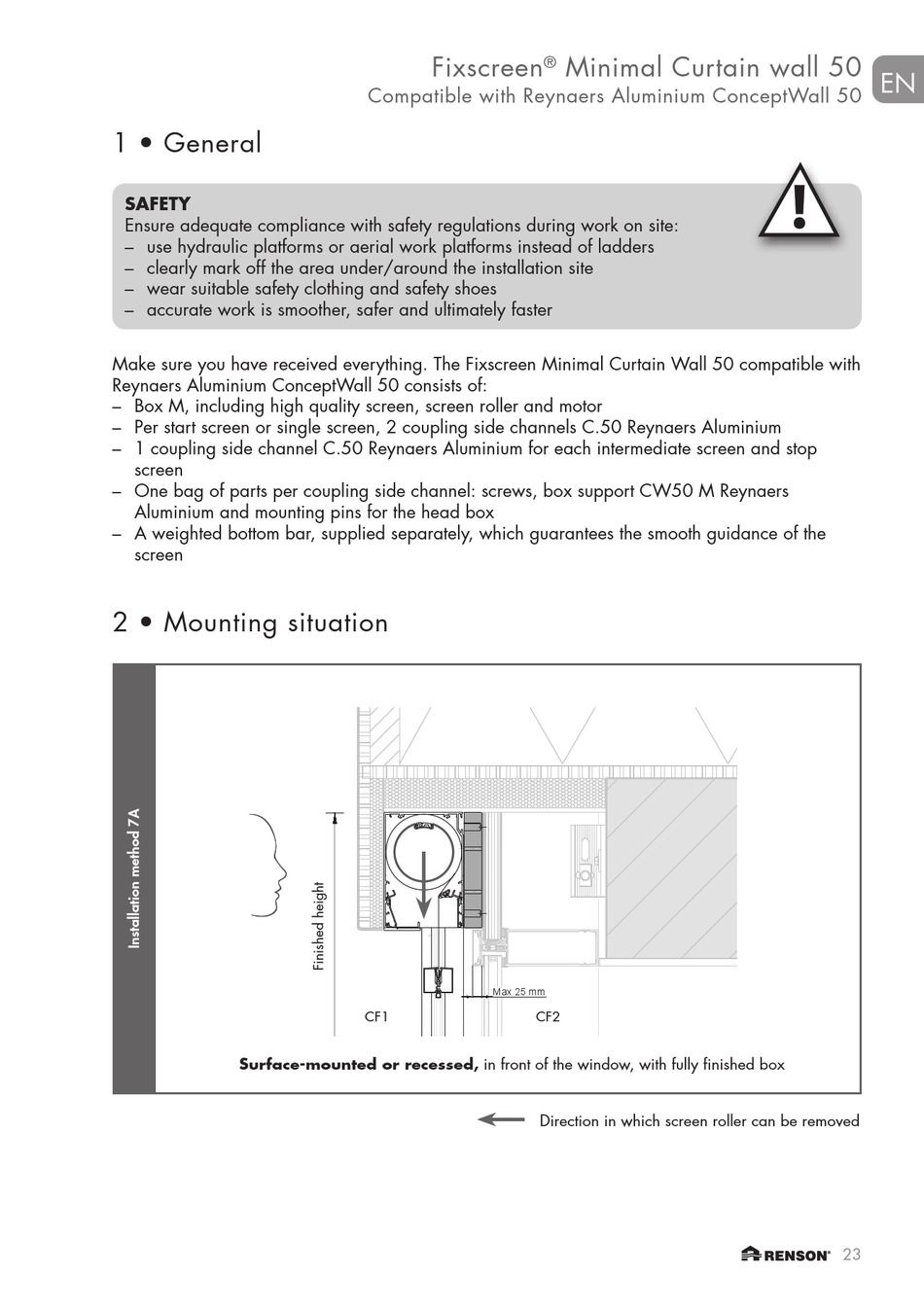

General; Mounting Situation - Renson Fixscreen Minimal Montageanleitung

Compatible with reynaers aluminium conceptwall 50
Vorschau ausblenden Andere Handbücher für Fixscreen Minimal:
Inhaltsverzeichnis

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

1 • General
SAFETY
Ensure adequate compliance with safety regulations during work on site:
– use hydraulic platforms or aerial work platforms instead of ladders
– clearly mark off the area under/around the installation site
– wear suitable safety clothing and safety shoes
– accurate work is smoother, safer and ultimately faster
Make sure you have received everything. The Fixscreen Minimal Curtain Wall 50 compatible with
Reynaers Aluminium ConceptWall 50 consists of:
– Box M, including high quality screen, screen roller and motor
– Per start screen or single screen, 2 coupling side channels C.50 Reynaers Aluminium
– 1 coupling side channel C.50 Reynaers Aluminium for each intermediate screen and stop
screen
– One bag of parts per coupling side channel: screws, box support CW50 M Reynaers
Aluminium and mounting pins for the head box
– A weighted bottom bar, supplied separately, which guarantees the smooth guidance of the
screen
2 • Mounting situation
Surface-mounted or recessed, in front of the window, with fully finished box
Fixscreen
Compatible with Reynaers Aluminium ConceptWall 50
Max 25 mm
CF1
CF2
Direction in which screen roller can be removed
CF2
CF1
Minimal Curtain wall 50
®
en
23
