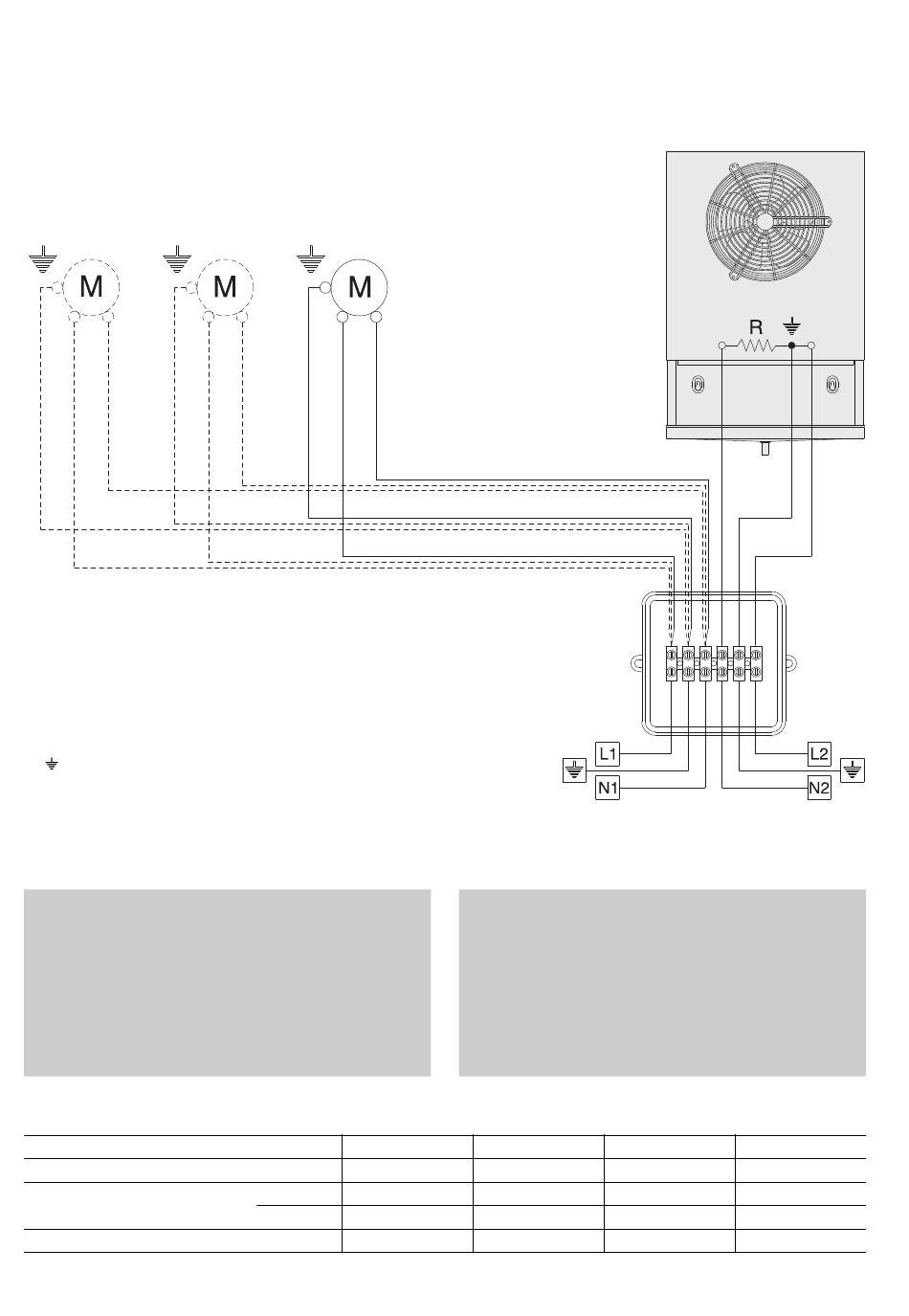

EP/B Fan motor and electric defrost heater connection scheme and absorption data
M = fan motor
R = defrost heater
L1 = brown
N1 = blue
L2-N2 = black
= green/yellow
L1-N1 = 230V/1/50Hz fan motor electric feed line
L2-N2 = 230V/1/50Hz electric heater feed line
Caution
To avoid possible motor damage strictly follow the electric schemes
shown.
Before using motor speed control systems verify the compatibility with
the motors; non compatible systems may damage motors or increase
noise level; the manufacturer will not be responsible for model perfor-
mance with speed control systems.
EP models
Fan motors
Fan motor absorption
Heater absorption
10
www.modinecoolers.com
80 - 81
N° x ø mm
1 x 230
A
0,35
W
53
W
300
Important
Application of adequate thermal control systems on feeder lines is man-
datory.
Performance of all electric heaters must be periodically controlled to
avoid damage due to ice build-up.
The manufacturer is not liable in any way for defects caused by non
detected malfunctions.
101
1x 230
0,35
53
300
201
301
2 x 230
3 x 230
0,70
1,05
106
159
600
900
