2. Installation

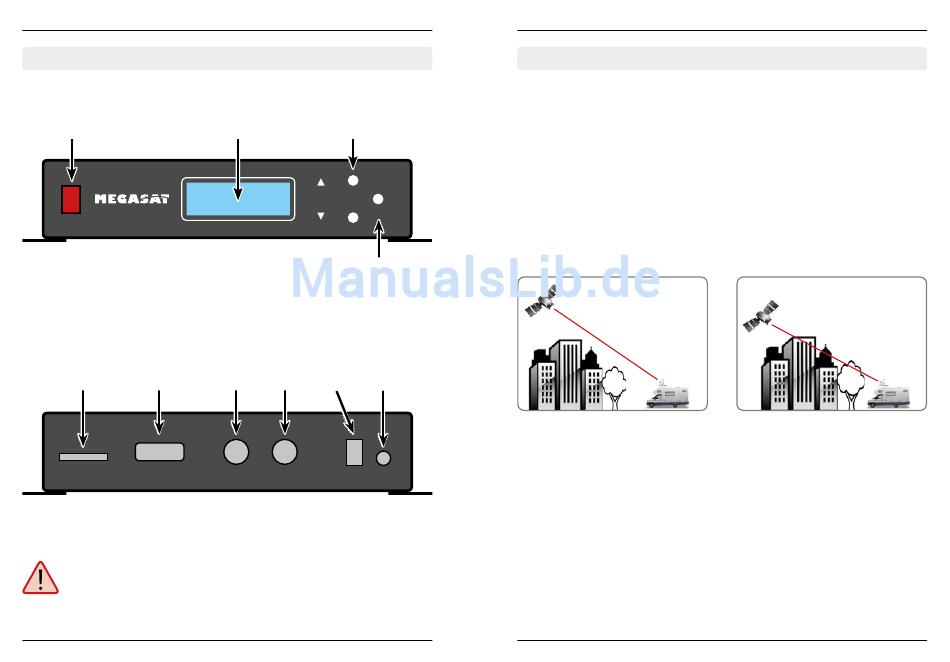

2.4 The contron unit
Front view of the control unit
On / Off switsch
ON
OFF
POWER
Rear view of the control unit
Connector
SD Card Slot service
SD CARD RS-232
Warning:
Connect the device only at a 7 amp protected line.
The line must be at least 2.5 mm² strong. (never directly to the car battery).
08
Satellite Select
LCD Display (up/down)
SATELLITE
SATELLITE
SELECT
SELECT
SLEEP SLEEP
Interrupt
tracking
Intput Output
Connector Connector power power
set-top box antenna supply supply
RECEIVER ANTENNA IN OUT
DC 12~24 V
ENGLISH
2. Installation

2.5 Selecting the location

Direct Broadcast Service (DBS) satellites broadcast audio, video and data information
from satellites located 22 miles in space. A receiving station, such as the antenna, should
include a dish and satellite receiver to receive the signals and process them for use by
the consumer audio and video equipment. The system requires a clear view of the satel-
lite to maximize the signal reception.
Objects such as tall lighthouse, bridges and big ship that block this view will cause a loss
of signal. The signal will be quickly restored once the antenna has a clear line of sight
again. Heavy rain, cloud, snow or ice may also interfere with the signal reception quality.
If the satellite signal is lost due to blockage or severe weather condition, services from
the receiver will be lost (picture will freeze frame and may disappear). When the satellite
signal strength is again high enough, then the receiver will resume providing desired
programming services.
good reception signal bad reception signal
