E2 / D2 / C2

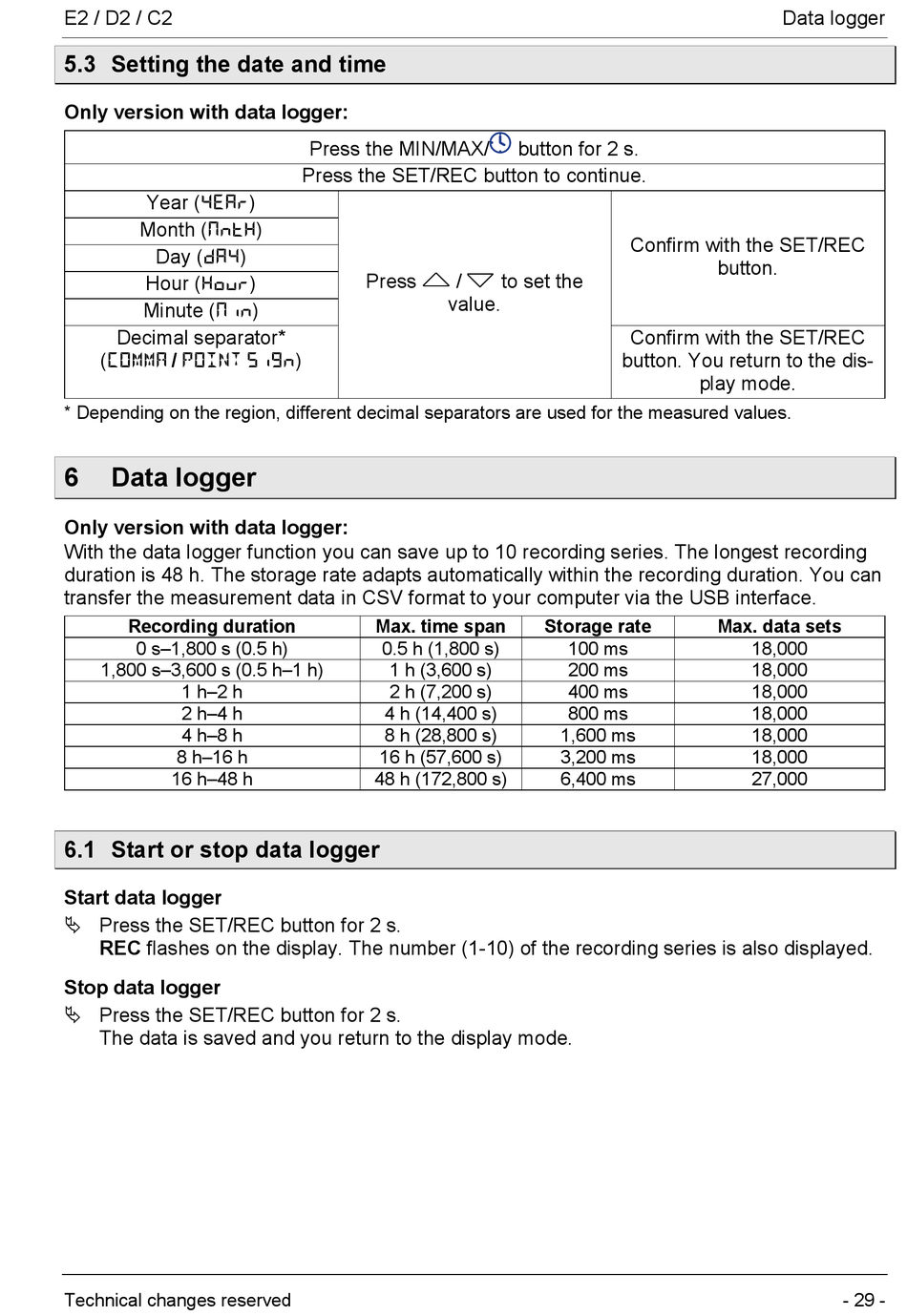

5.3 Setting the date and time

Only version with data logger:
Year (
4ear
Month (
Mntx
Day (
da4
Hour (
Xour
Minute (
Min
Decimal separator*
( /
C0mma P0int 5i9n
* Depending on the region, different decimal separators are used for the measured values.
6

Data logger

Only version with data logger:
With the data logger function you can save up to 10 recording series. The longest recording
duration is 48 h. The storage rate adapts automatically within the recording duration. You can
transfer the measurement data in CSV format to your computer via the USB interface.
Recording duration
0 s–1,800 s (0.5 h)
1,800 s–3,600 s (0.5 h–1 h)
1 h–2 h
2 h–4 h
4 h–8 h
8 h–16 h
16 h–48 h

6.1 Start or stop data logger

Start data logger
 Press the SET/REC button for 2 s.
REC flashes on the display. The number (1-10) of the recording series is also displayed.
Stop data logger
 Press the SET/REC button for 2 s.
The data is saved and you return to the display mode.
Technical changes reserved
Press the MIN/MAX/
Press the SET/REC button to continue.
)
)
)
Press
)
)
)
Max. time span
0.5 h (1,800 s)
1 h (3,600 s)
2 h (7,200 s)
4 h (14,400 s)
8 h (28,800 s)
16 h (57,600 s)
48 h (172,800 s)
button for 2 s.
/ to set the
value.
Storage rate
100 ms
200 ms
400 ms
800 ms
1,600 ms
3,200 ms
6,400 ms
Data logger
Confirm with the SET/REC
button.
Confirm with the SET/REC
button. You return to the dis-
play mode.
Max. data sets
18,000
18,000
18,000
18,000
18,000
18,000
27,000
- 29 -
