E2 / D2 / C2
4

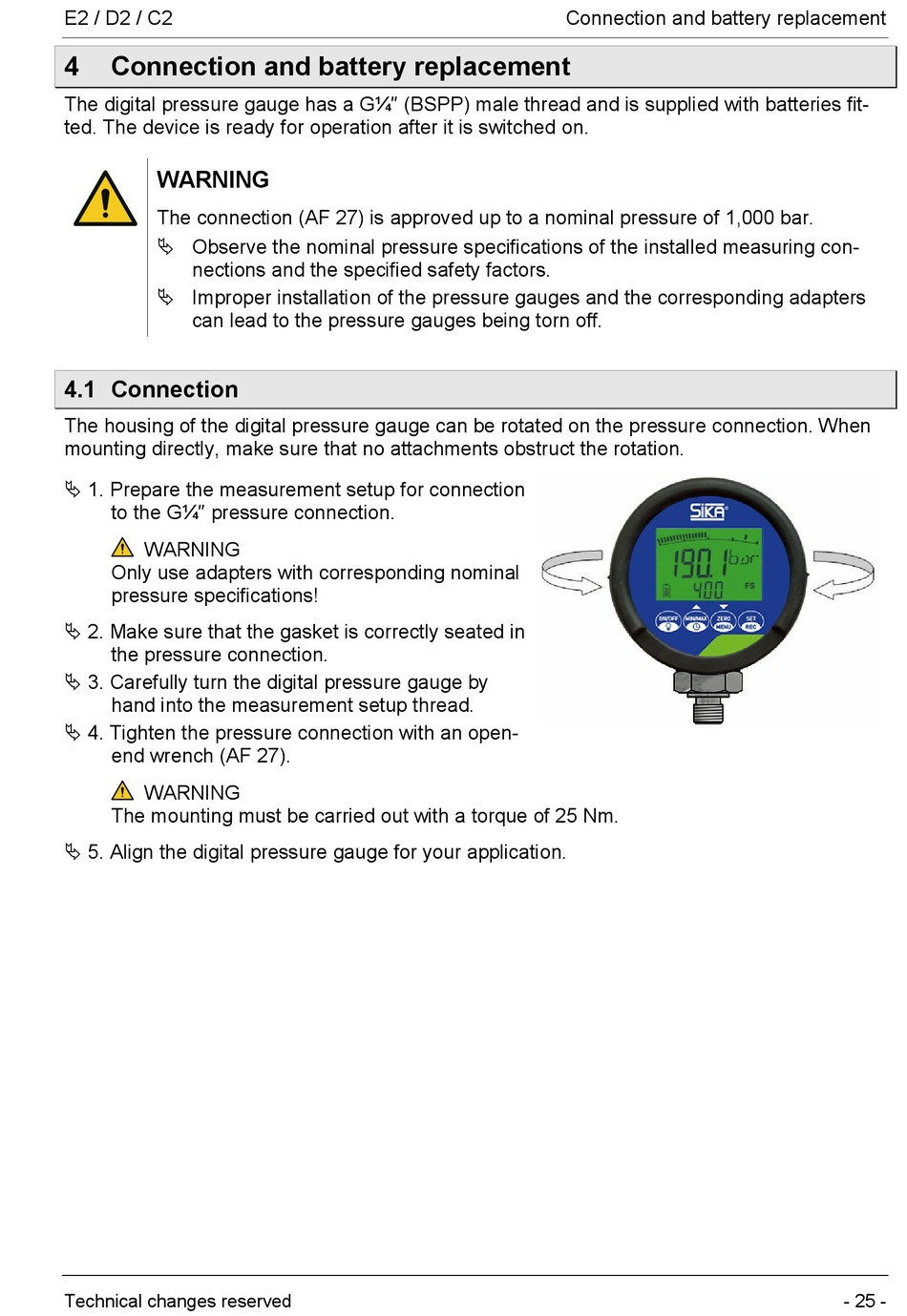

Connection and battery replacement

The digital pressure gauge has a G¼" (BSPP) male thread and is supplied with batteries fit-
ted. The device is ready for operation after it is switched on.
WARNING
The connection (AF 27) is approved up to a nominal pressure of 1,000 bar.
 Observe the nominal pressure specifications of the installed measuring con-
nections and the specified safety factors.
 Improper installation of the pressure gauges and the corresponding adapters
can lead to the pressure gauges being torn off.

4.1 Connection

The housing of the digital pressure gauge can be rotated on the pressure connection. When
mounting directly, make sure that no attachments obstruct the rotation.
 1. Prepare the measurement setup for connection
to the G¼" pressure connection.
WARNING
Only use adapters with corresponding nominal
pressure specifications!
 2. Make sure that the gasket is correctly seated in
the pressure connection.
 3. Carefully turn the digital pressure gauge by
hand into the measurement setup thread.
 4. Tighten the pressure connection with an open-
end wrench (AF 27).
WARNING
The mounting must be carried out with a torque of 25 Nm.
 5. Align the digital pressure gauge for your application.
Technical changes reserved
Connection and battery replacement
- 25 -
