E2 / D2 / C2
5

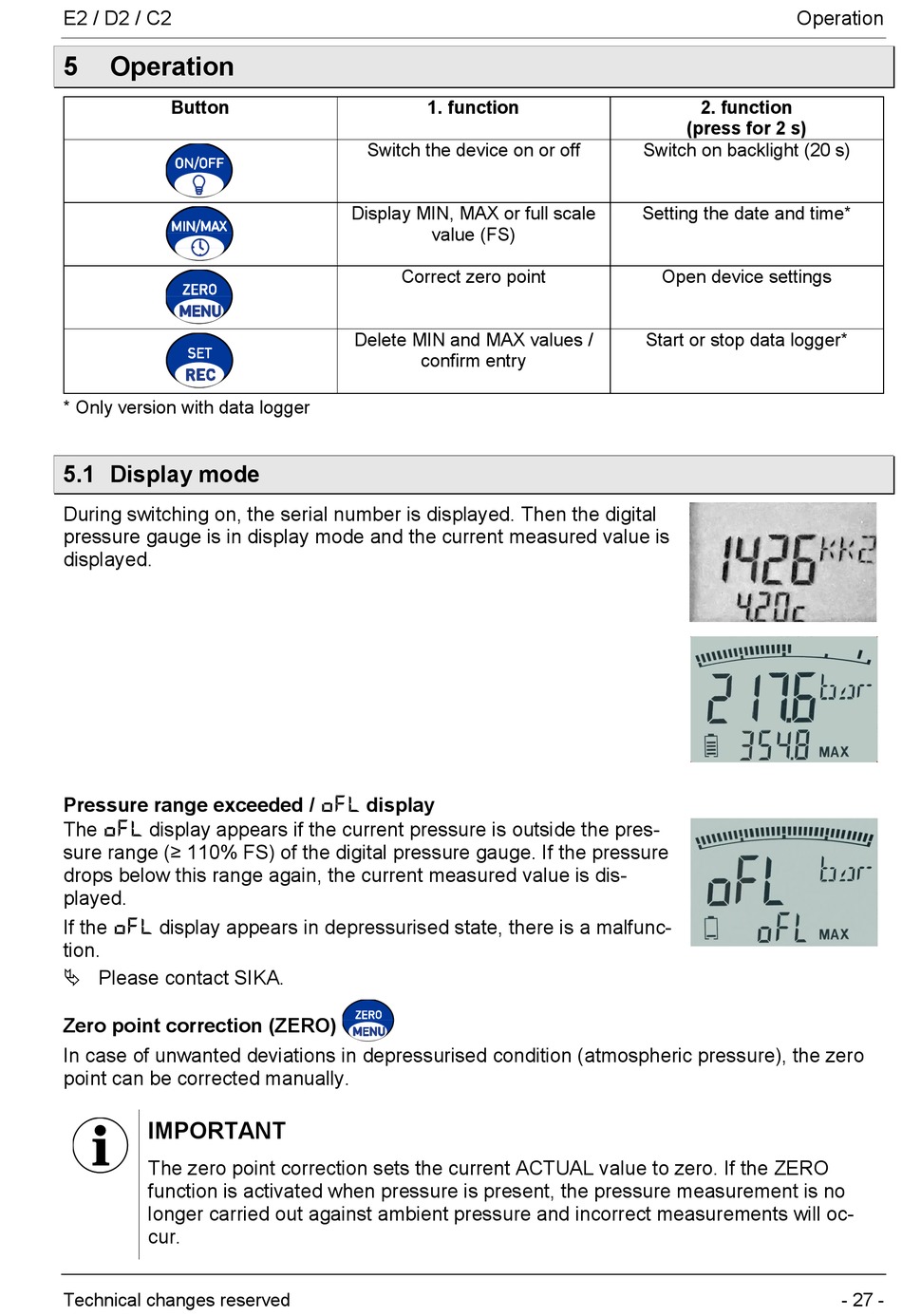

Operation

Button
* Only version with data logger

5.1 Display mode

During switching on, the serial number is displayed. Then the digital
pressure gauge is in display mode and the current measured value is
displayed.
Pressure range exceeded /
The display appears if the current pressure is outside the pres-
oFL
sure range (≥ 110% FS) of the digital pressure gauge. If the pressure
drops below this range again, the current measured value is dis-
played.
If the display appears in depressurised state, there is a malfunc-
oFL
tion.
 Please contact SIKA.
Zero point correction (ZERO)
In case of unwanted deviations in depressurised condition (atmospheric pressure), the zero
point can be corrected manually.
IMPORTANT
The zero point correction sets the current ACTUAL value to zero. If the ZERO
function is activated when pressure is present, the pressure measurement is no
longer carried out against ambient pressure and incorrect measurements will oc-
cur.
Technical changes reserved
1. function
Switch the device on or off
Display MIN, MAX or full scale
value (FS)
Correct zero point
Delete MIN and MAX values /
confirm entry
display
oFL
Operation
2. function
(press for 2 s)
Switch on backlight (20 s)
Setting the date and time*
Open device settings
Start or stop data logger*
- 27 -
