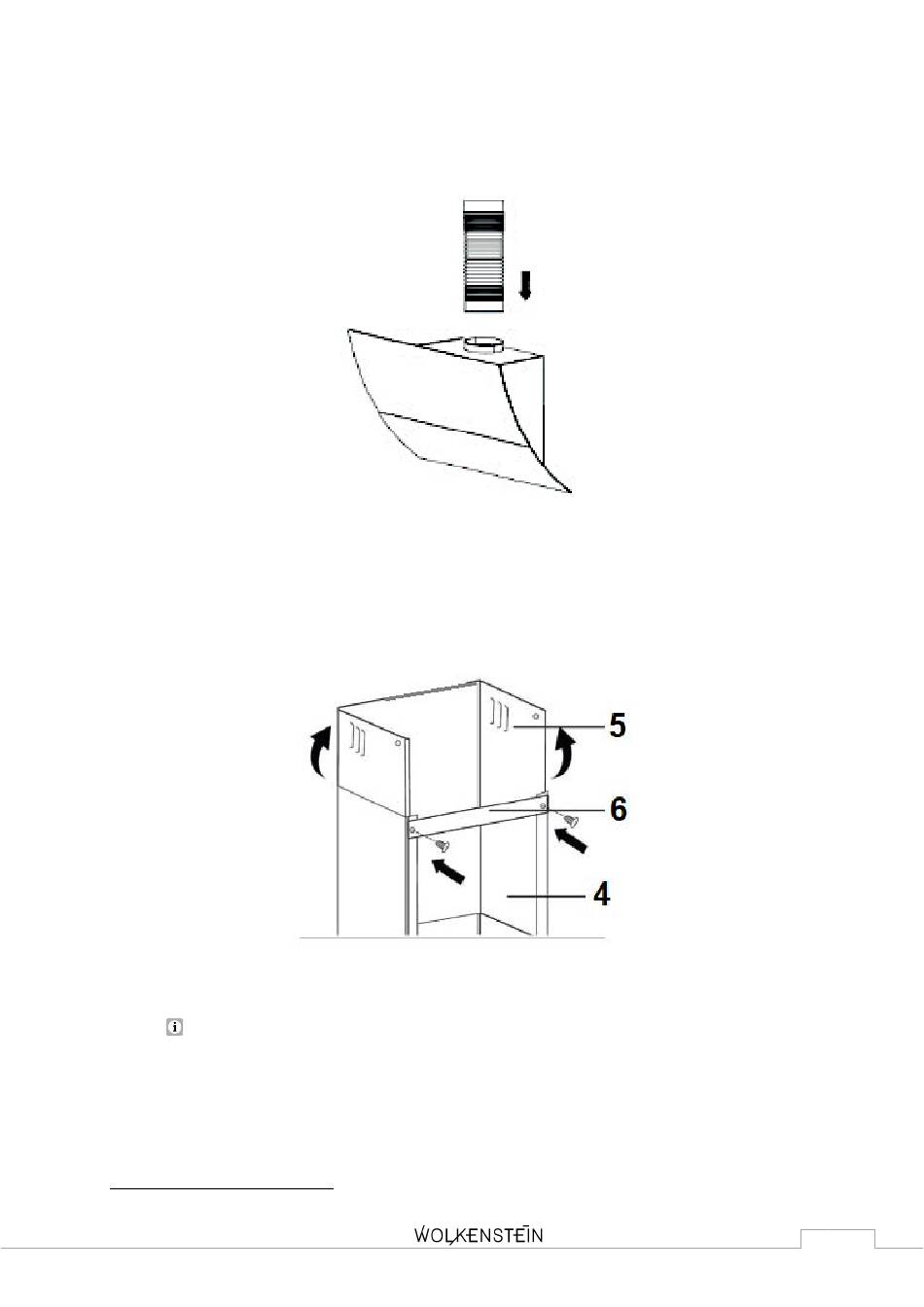

6. Install the one-way-valve on the air outlet of the hood
7. Install the exhaust hose on the air outlet (s. fig. below).
8. Insert the upper chimney (5) into the lower chimney (4). Fix the lower chimney
bracket on the lower chimney at the desired height using two 4*8 mm screws (s.
fig. below). Do not tighten the screws too firmly so the upper chimney will stay
telescopic after installation.
a. I
NSTALLATION OF THE CHIMNEY
The louvres (7) of the upper chimney (5) must face downwards and be
covered by the lower chimney (4); s. fig. below.
Depending on model
10
.
10
/ E
XTRACTION MODE
