H : Lay the exhaust hose to an exhaust
ORIZONTALLY
outlet equipped with an air grille*.
*: Not included in delivery.

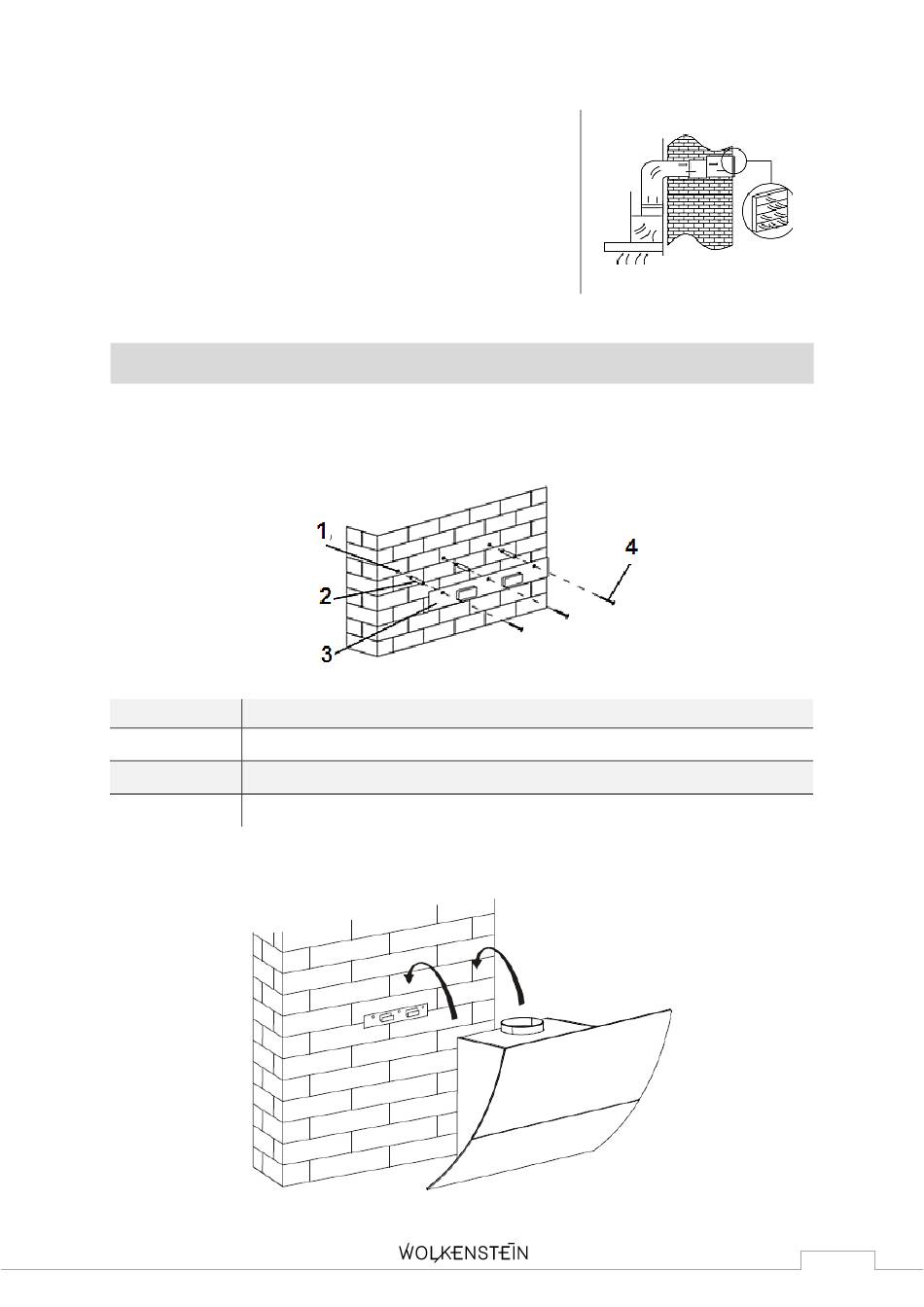

1. Drill three 8 mm holes (1) to fix the wall bracket (3). Tighten the wall bracket
using the supplied screws and dowels (2 / 4) on the wall.
1
D
RILL HOLES
2
D
OWELS
3
W
ALL BRACKET
4
S
CREWS
2. Lift the extractor hood and hang it on the wall bracket.
I
NSTALLATION STEPS
4*30 mm
:
47
