3. Four additional 4*8 mm drillings are required to fix the appliance.
a) Open the glass panel of the appliance and remove the aluminium grease filter.

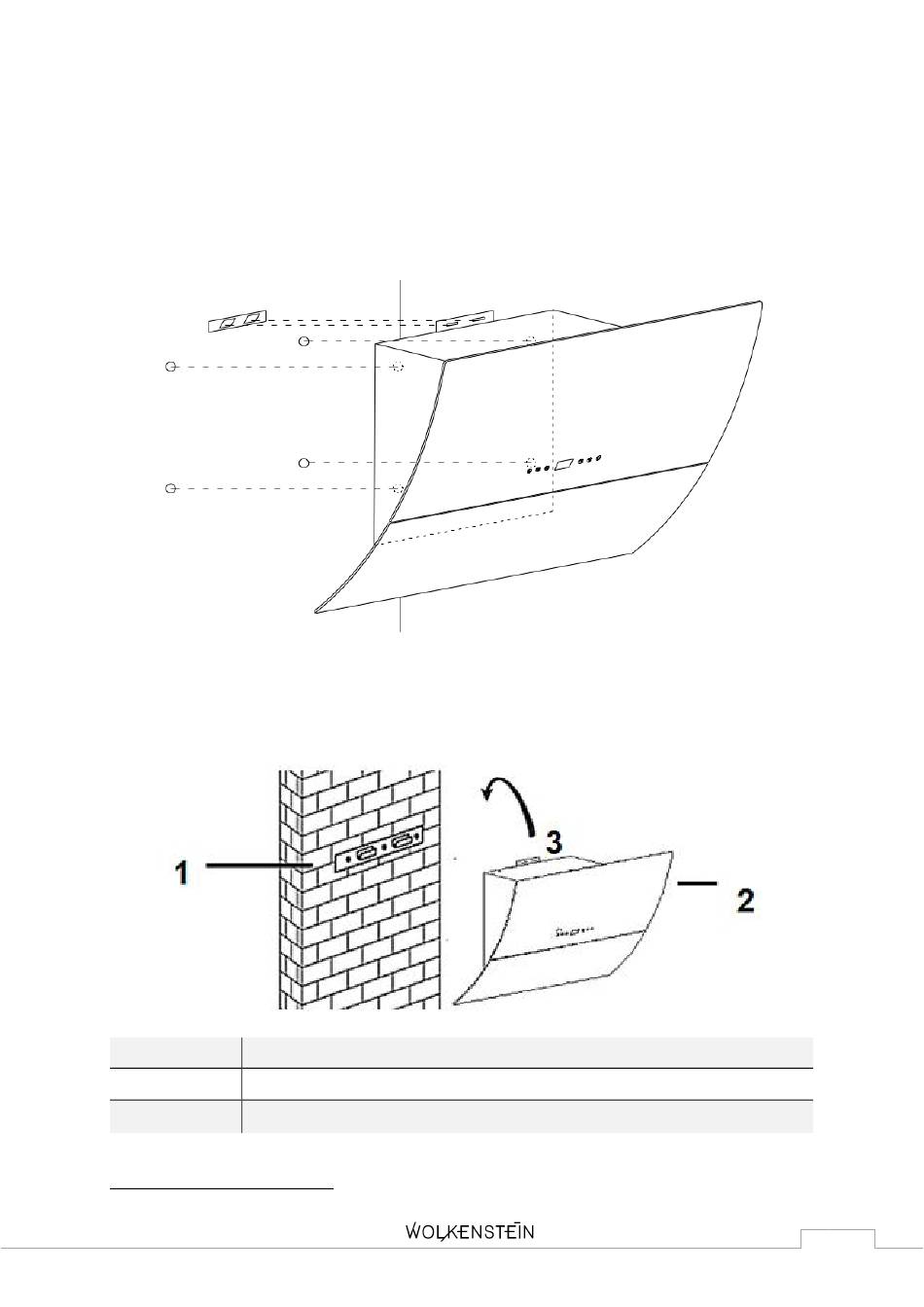

b) Mark the position of the 4 drill holes (s. fig. below).
c) Remove the extractor hood from the wall bracket.
d) Drill the four Ø 8 mm holes at the marked points.
e) Insert the fixing material (dowels, etc.)
4. Lift the extractor hood (2) and hang it on the wall bracket (1) again (s. fig. below).
5. Screw the extractor hood on the wall using the appropriate screws. The appliance
must be installed in horizontal position. Check proper position using a spirit level.
1
W
ALL BRACKET
2
E
XTRACTOR HOOD
3
O
PENINGS FOR THE WALL BRACKET
Depending on model
9
9 into the wall.
