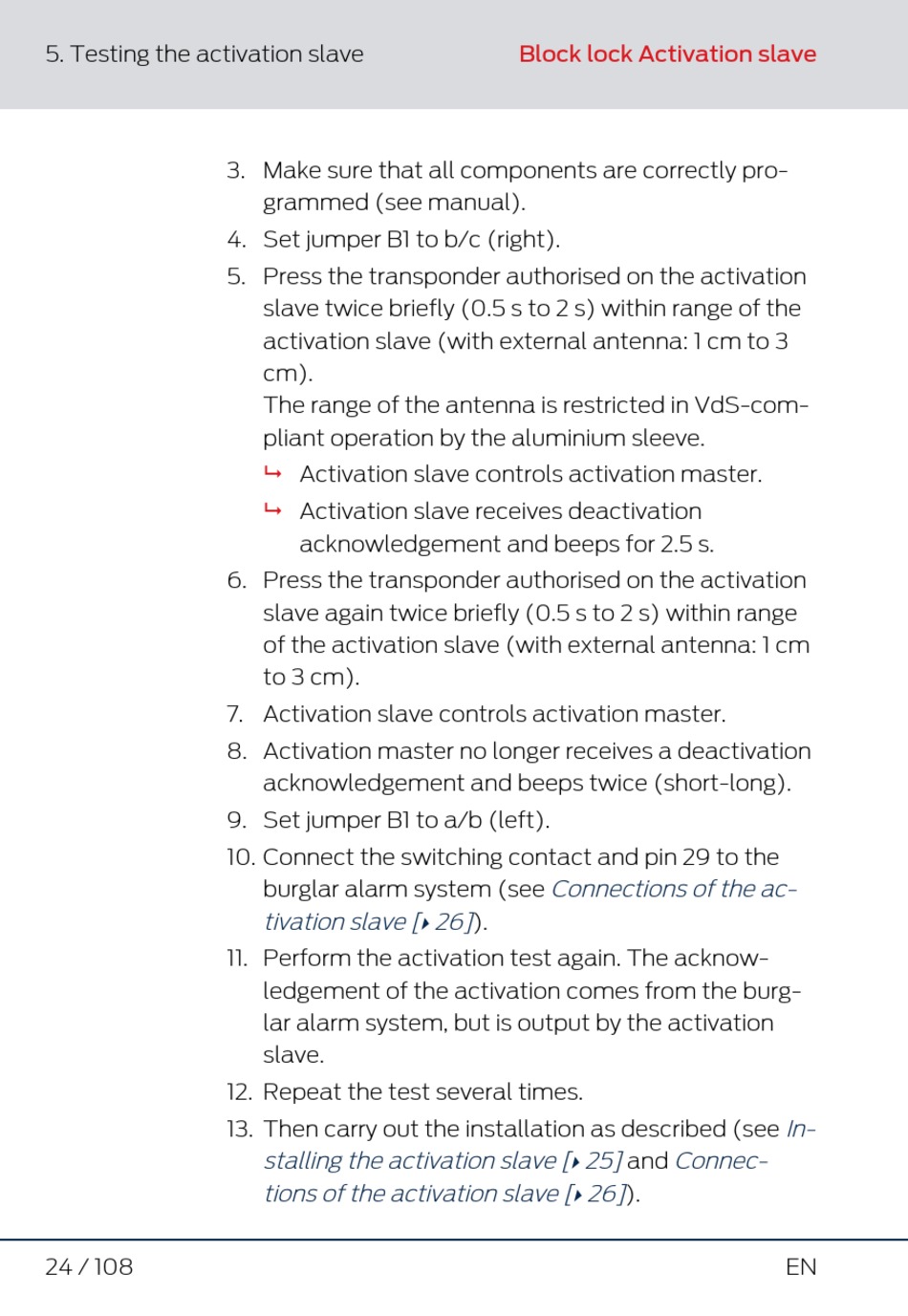

5. Testing the activation slave
24 / 108
3. Make sure that all components are correctly pro-
grammed (see manual).
4. Set jumper B1 to b/c (right).
5. Press the transponder authorised on the activation
slave twice briefly (0.5 s to 2 s) within range of the
activation slave (with external antenna: 1 cm to 3
cm).
The range of the antenna is restricted in VdS-com-
pliant operation by the aluminium sleeve.
Activation slave controls activation master.
9
Activation slave receives deactivation
9
acknowledgement and beeps for 2.5 s.
6. Press the transponder authorised on the activation
slave again twice briefly (0.5 s to 2 s) within range
of the activation slave (with external antenna: 1 cm
to 3 cm).
7. Activation slave controls activation master.
8. Activation master no longer receives a deactivation
acknowledgement and beeps twice (short-long).
9. Set jumper B1 to a/b (left).
10. Connect the switching contact and pin 29 to the
burglar alarm system (see
tivation slave [
11. Perform the activation test again. The acknow-
ledgement of the activation comes from the burg-
lar alarm system, but is output by the activation
slave.
12. Repeat the test several times.
13. Then carry out the installation as described (see
stalling the activation slave [
tions of the activation slave [
Block lock Activation slave
Connections of the ac-
26]
).
}
25]
}
26]
}
In-
and Connec-
).
