It is forbidden to lubricate the device or its separate
part.6.4.1.
6.1. WALL FIXING
Positioning of the reduction unit should be discussed
with responsible central gas system designer. Mount
the reduction unit at a correct height for safe and easy
use.
EN
The holes to use for mounting the reduction unit are
shown below.
Be aware that only the upper screws are holding
the entire weight of the reduction unit. Size of used
screws shall conform to total load.
6.2. FITTING INLET CONNECTIONS I1, I2
Connect pipe of correct diameter by soldering.
200
176
Fixing
Fixing
(75)

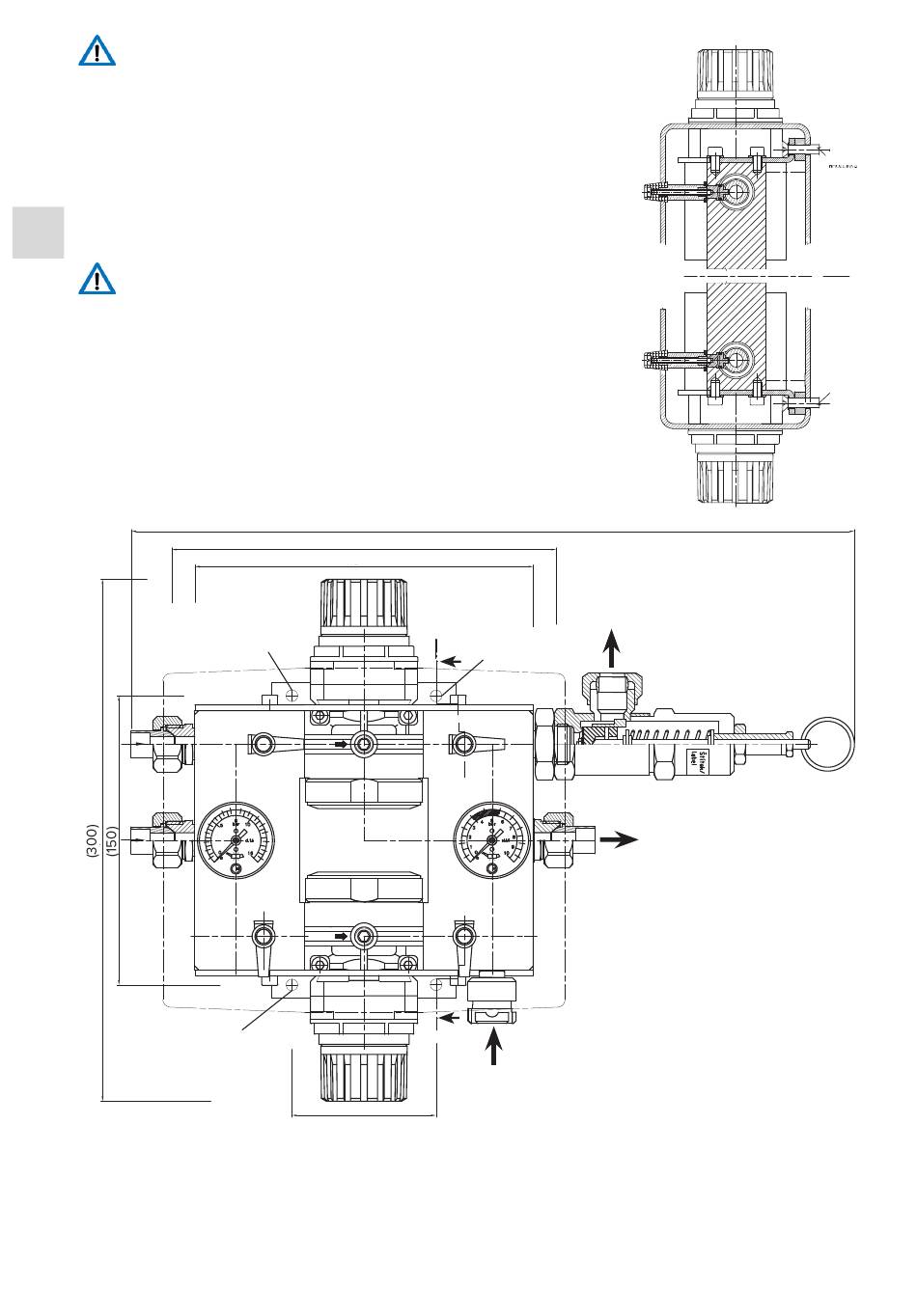

Fig. 2: Installation of MM40 - STABILIZER
(350)
A
Fixing
A
6/88
A - A
Fixing
Fixing
