Nameplates

18
The nameplates, which are mounted in a clearly visible position on the transmitter and sensor, contain all of
the relevant information about the measuring system.
1
4153 Reinach Switzerland
2 PROMASS 40
Order Code:
3
XXXXXXX2000
Ser.No.:
TAG No.:
20-55VAC/16-62VDC
A
4
50-60Hz
I-OUT (HART), f-OUT
5
STATUS-OUT, STATUS-IN
6
i
0044
N12895
14 15
4153 Reinach
1
Switzerland
2
PROMASS E
Order Code:
3
XXXXXXX2000
Ser.No.:
B
TAG No.:
19 1.0000/0000
K-factor:
20
DN25 DIN/EN PN40 / pnom = PS = 40bar
21 1.4404 / 316L, 1.4539 / 904L
Materals:
22 -40°C...140°C/-40°F...+284°F
TM:

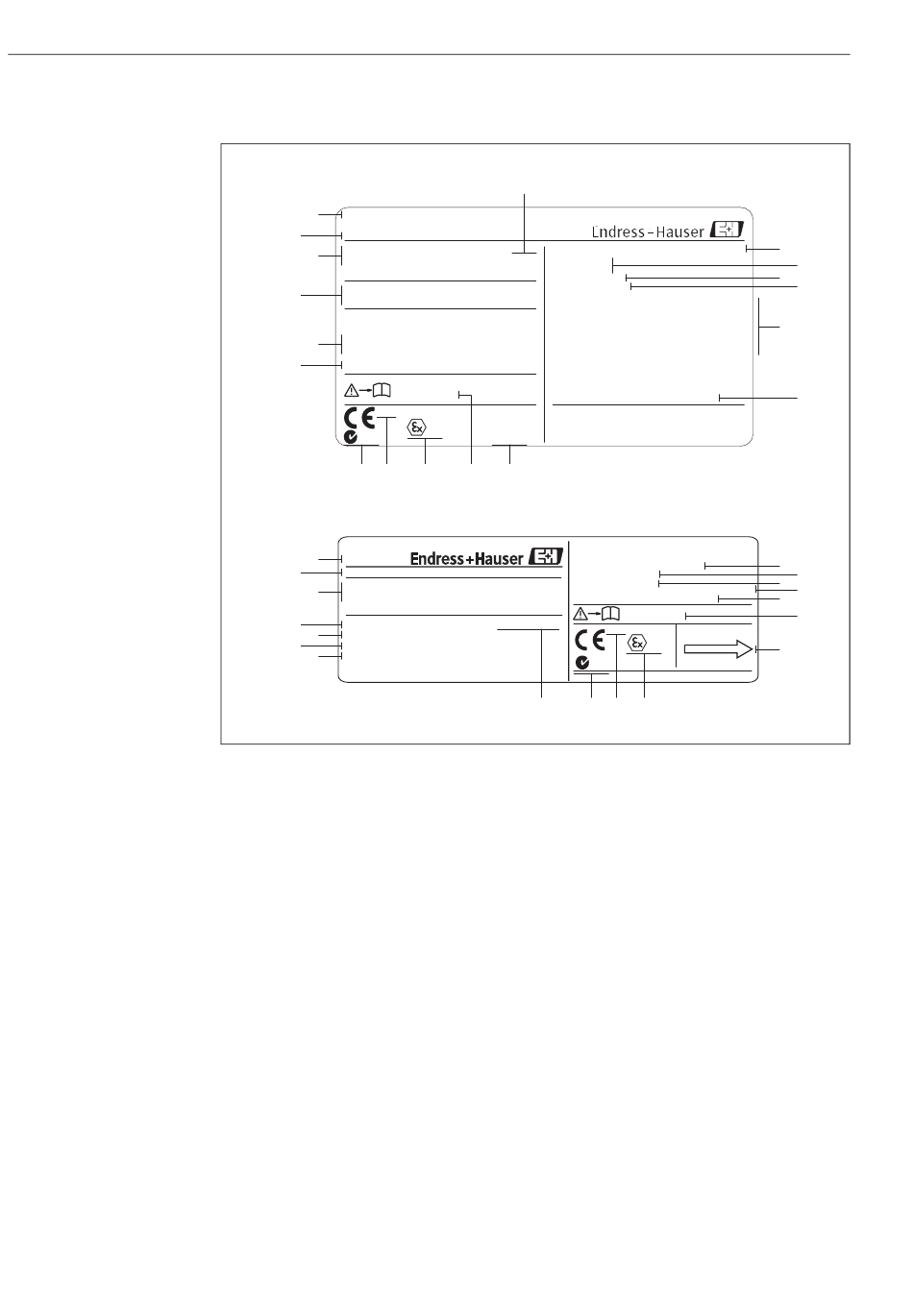

Fig. 2: Example for nameplates of a transmitter and of a sensor
A Transmitter nameplate
B Sensor nameplate
1 Certificate recipient
2 Transmitter or sensor type
3 Order code and serial number
4 Power supply, frequency and power consumption
5 Available inputs/outputs
6 Space for additional information on special products
7 Year of manufacture
8 Type of enclosure protection
9 Type of protection
10 Number of the EC type-examination certificate
11 Number of the IECEx declaration of conformity
12 Space for notes, e.g. delays, etc. (only if necessary)
7
40E25-XXXXXXXXXXXX
2010
Ex d[ia] IIC T1-T6
Ex tD A21 IP6X
DMT 00 ATEX 074 X
IECEx BVS 06.0019 X
15VA/W Um = 260VAC
After de-energizing, wait 10 Minutes before opening!
Nach dem Abschalten 10 Minuten warten vor dem Öffnen!
Terminal 20 ... 27
Um = 260V
Imax = 0.5mA
XA056D/06/../....
-20°C (-4°F) <Tamb< +60°C (+140°F)
II2G
II2D
16 17 18
40E25-XXXXXXXXXXXX
2010
DN25 / 1"
Size:
23
13 Ambient temperature range
14 C-Tick symbol
15 Notified body for quality assurance monitoring
16 Equipment group and equipment category as per
directive 94/9/EC
17 Associated Ex documentation
18 Space for other approval specifications and certificates
19 Calibration factor/zero point
20 Nominal diameter/nominal pressure
21 Materials in contact with the medium
22 Fluid temperature range
23 Device nominal diameter
24 Direction of flow
