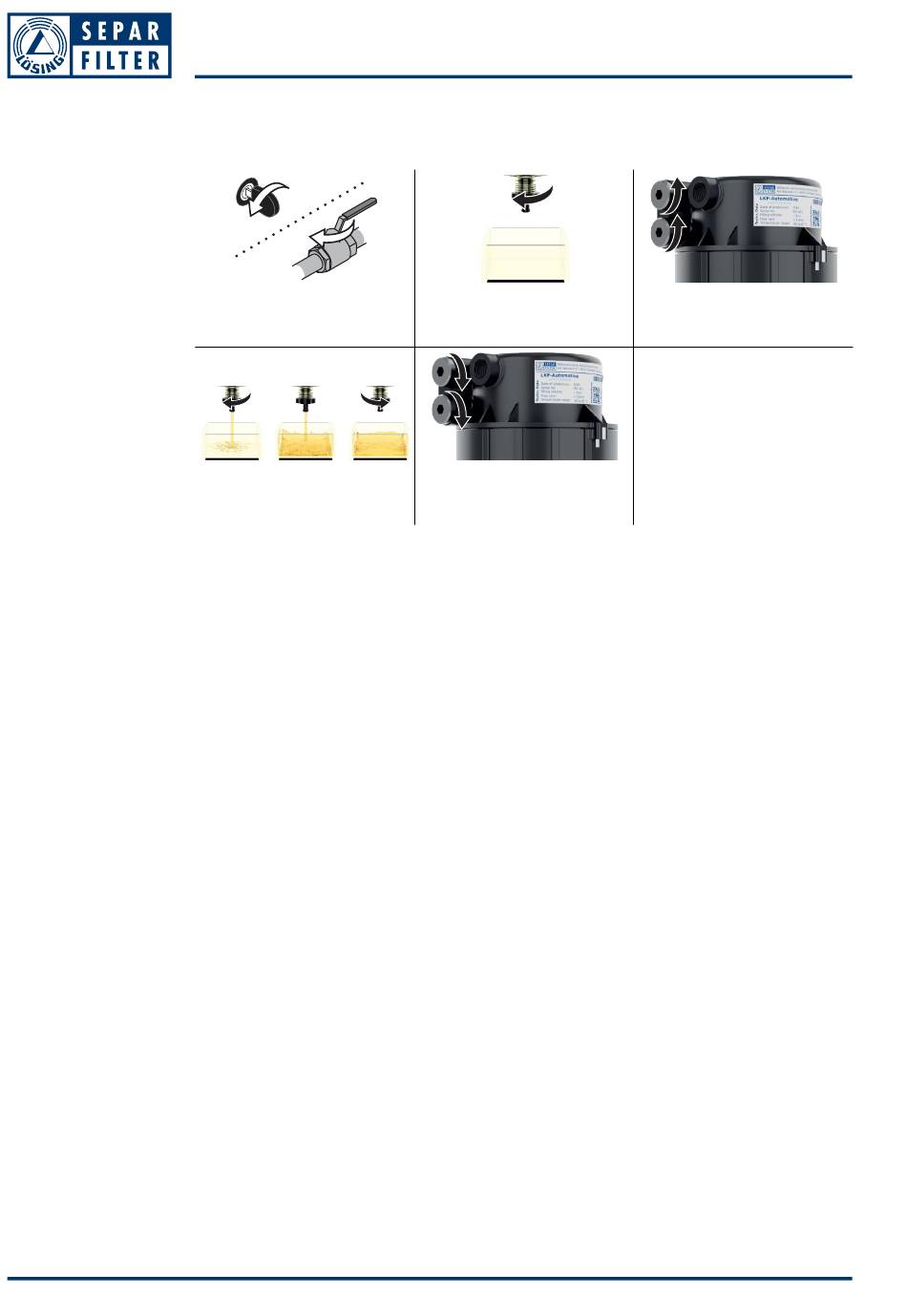

9.5 Discharge filter

30/35
For work on the filter it must be completely discharged.
1 Stop machine or block supply
pipe.
4 Open drain valve.
Discharge filter.
Close drain valve.
2 Release the drain valve and open
it about half a turn.
5 Tighten the loosened plug or
the loosened pipe connection
with the specified torque.
LKF-Automotive
Maintenance
3 Loosen one sealing plug or one
pipe connection and open it by
about one turn.
