Safety information
2.1.4.3
D10107-EN-R05

Use of the LKF wrench

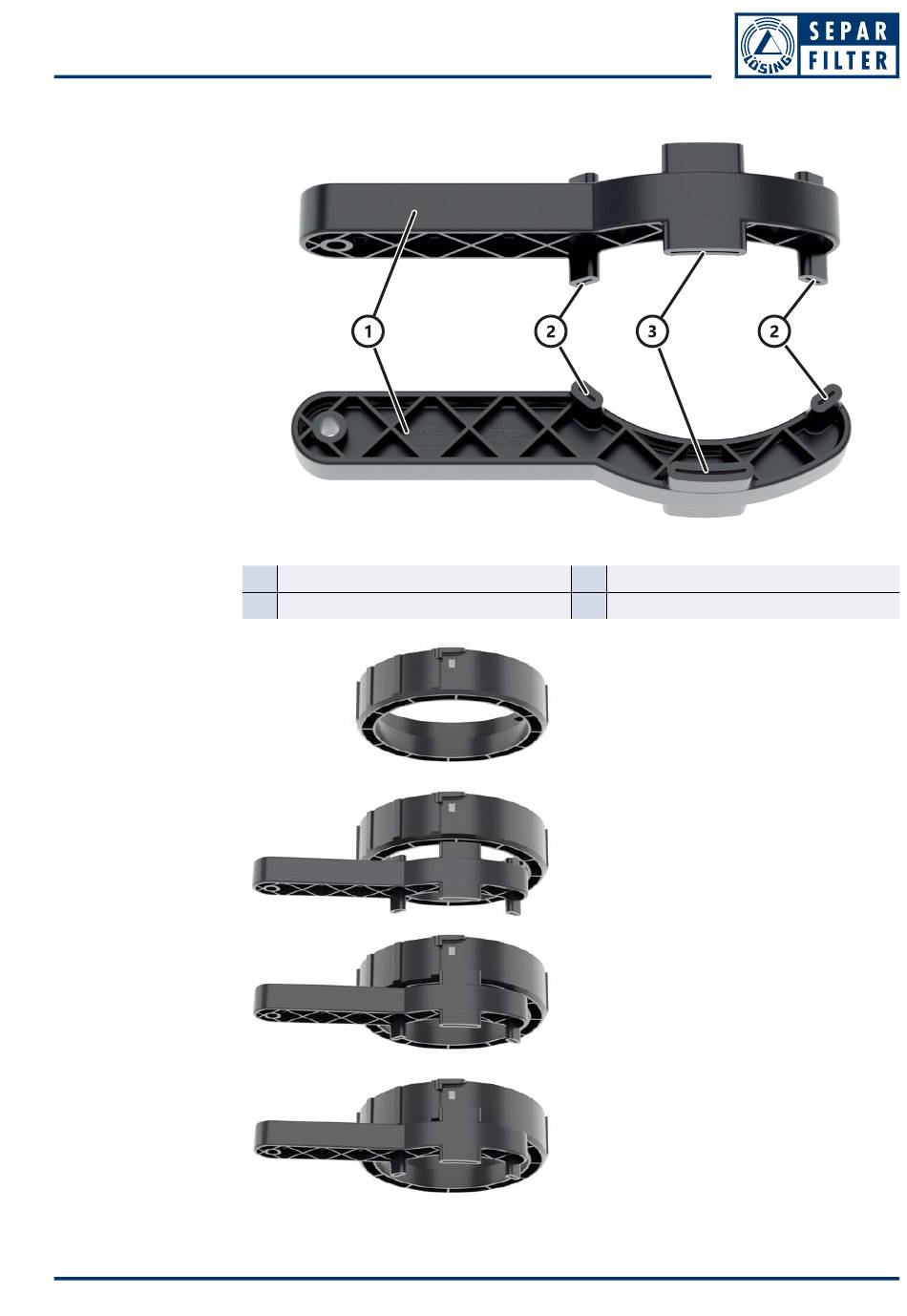

Figure 1: LKF wrench, structure
1 Handle
2 Pivot pin
3 Guide pin
The bayonet ring of the filter is divided into 12
sections at its bottom.
The LKF wrench can be inserted there in steps of
approx. 30° around the centre axis of the bayo-
net ring.
Position the wrench so that the bayonet ring can
be turned in the correct direction.
The wrench can be used in any position to open
or close the bayonet ring.
Turn the wrench so that the two pivot pins can
be inserted from below into two of the sections
in the bayonet ring.
The guide pin must be on the outside of the
bayonet ring.
Insert the wrench into the bayonet ring as far as
the stop.
Make sure that the wrench is not tilted in its lon-
gitudinal and transverse axis when turning the
bayonet ring and that the pivot pins remain
completely in the bayonet ring.
7/35
