LKF-Automotive
Safety information
2.1.4
2.1.4.1
D10107-EN-R05
Improper handling
The container is secured by a ring with bayonet lock. The two interlocks are located dia-
metrically on the mounting side and the front side of the filter.
Improper handling of the interlock can lead to damage to the filter and as a consequence
cause malfunctions and environmental damage. The bayonet lock may only be opened
and closed by hand or with the LKF wrench, which is available as an accessory.
The following descriptions explain the basically correct procedure. When working on the
filter, the safety instructions in the respective chapters must also be observed.

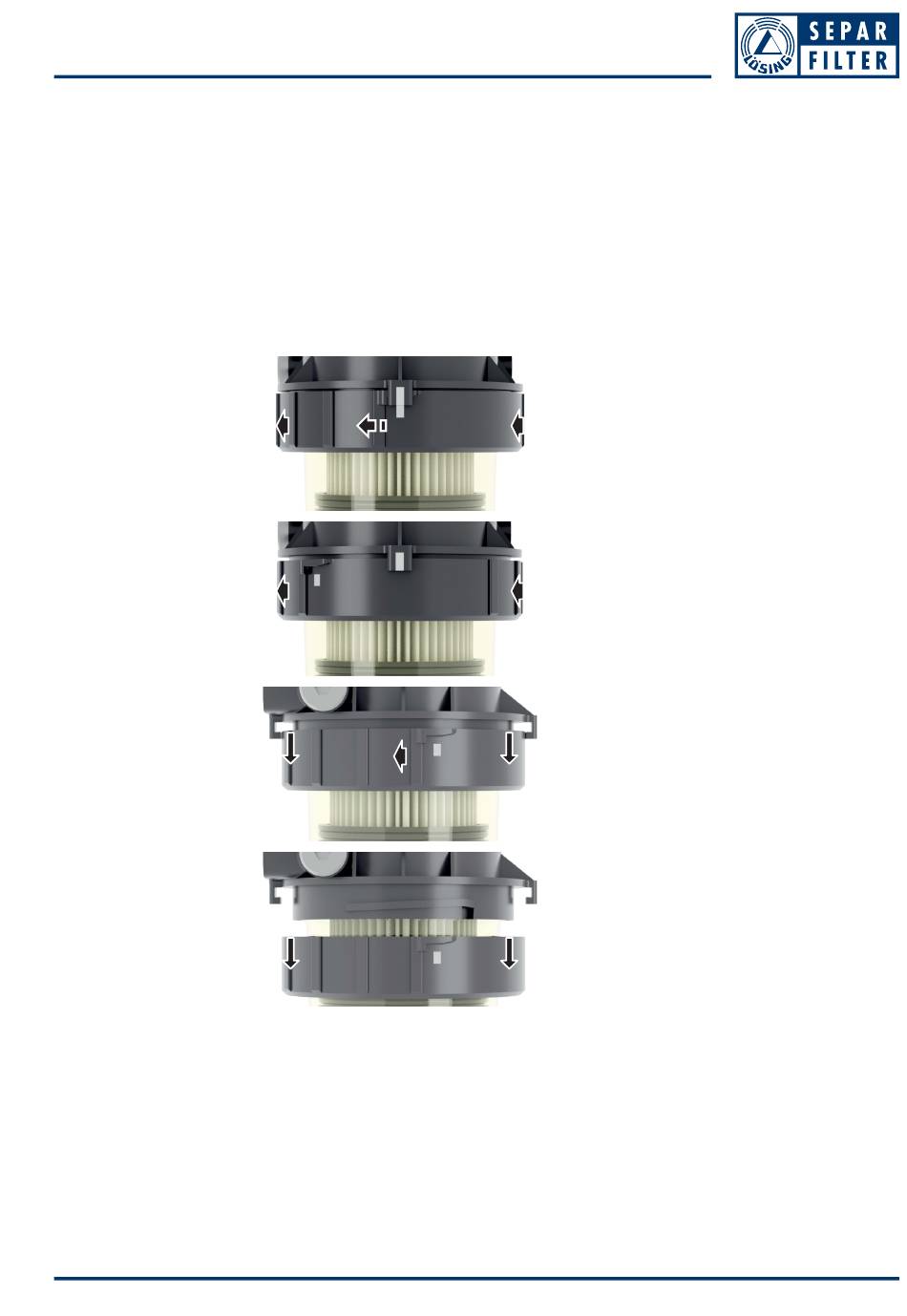

Opening the bayonet lock
The figure shows the front view of the filter.
Grasp the bayonet ring on both sides and turn
counter-clockwise beyond the resistance.
Turn the bayonet ring further counter-clockwise,
it will lower itself.
The figure shows the view of the filter from the
left side.
Turn the bayonet ring further counter-clockwise
until it can be removed downwards.
The bayonet ring can now be removed down-
wards from the filter.
5/35
