Closing the bayonet lock

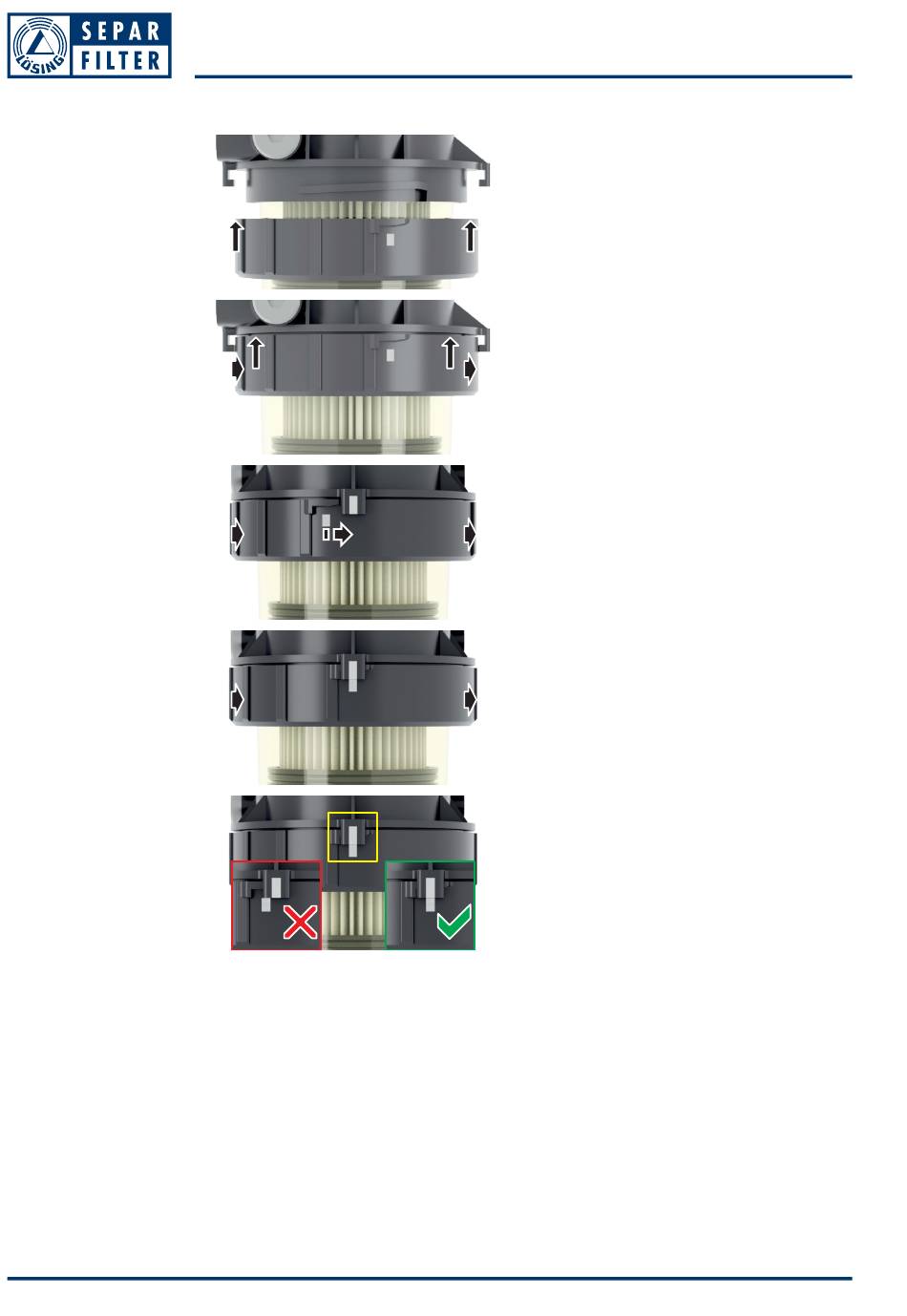

The figure shows the view of the filter from the
left side.
Slide the ring over the container from below.
Turn the ring so that the guide nose is approxi-
mately in the middle of the filter.
Push the ring on completely and without tilting
until it resists.
Maintain pressure and turn the ring clockwise
until resistance is reached.
The figure shows the front view of the filter.
Turn the ring clockwise beyond the resistance.
Turn the ring further clockwise until it stops.
The filter is only correctly closed if the markings
on the lock are aligned.
