LKF-Automotive
Installation
Medium supply flow
Medium flow
For future expansion
Nozzle for drain
hose
Screw-in thread for
water sensor
D10107-EN-R05

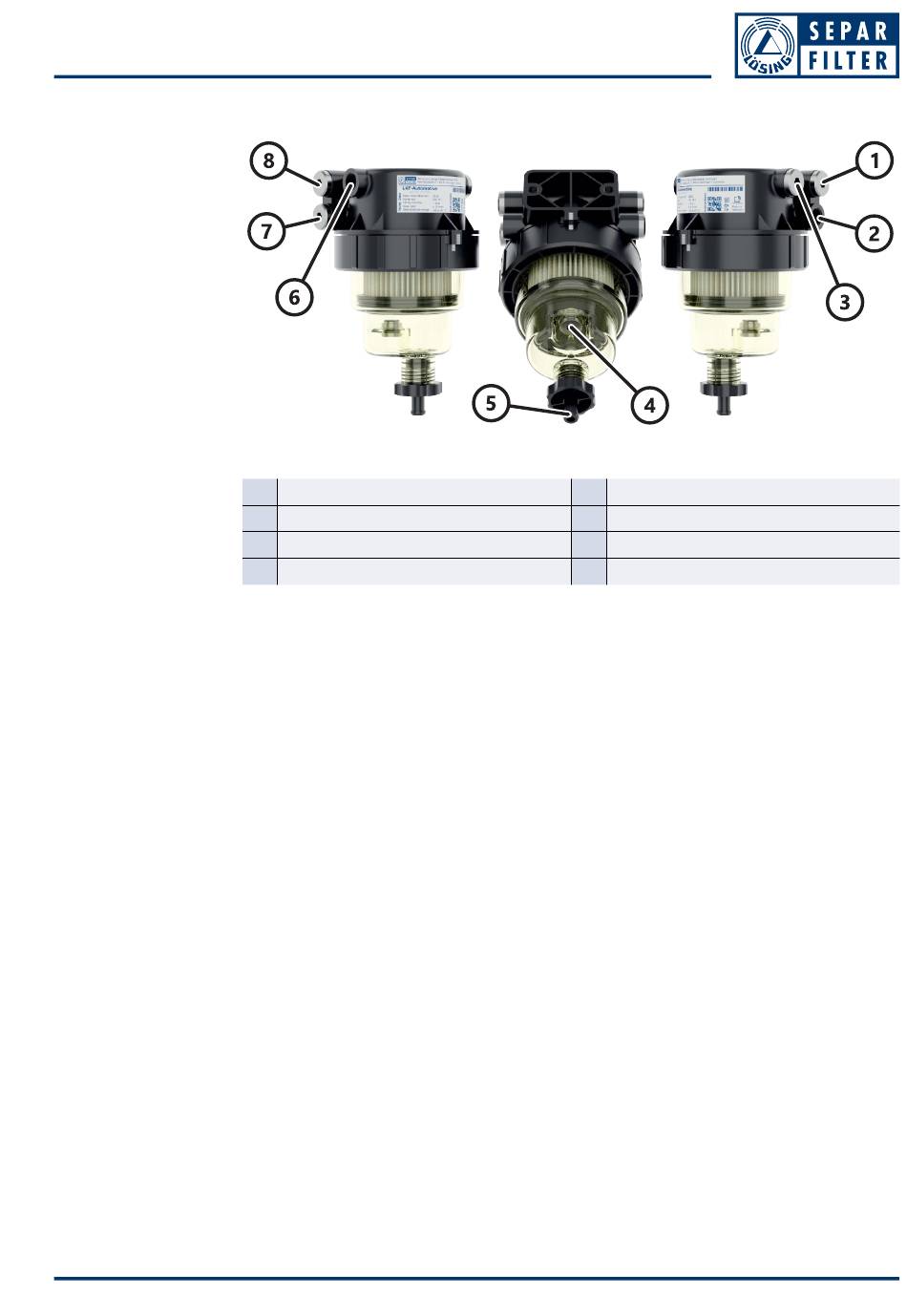

Figure 8: Mechanical connections
1 For future expansion
2 Medium supply flow, right
3 Medium flow, right
4 Screw-in thread for water sensor
Connection for the fuel pipe from the deepest point of the tank.
Connection for the fuel pipe to the injection system.
These connections are intended for future use in extended applications.
For simpler drainage of the filter, a hose which is suitable for the medium can be slid on.
A water sensor which is available as an accessory can be screwed into this screw tap, where
the sensor must be evaluated by additional electronics. This allows a message to be gener-
ated when the filter needs to be drained.
5 Nozzle for drain hose
6 Medium flow, left
7 Medium supply flow, left
8 For future expansion
17/35
