7.5.1
7.5.2
18/35

Connection example 1: Inlet left side and outlet right side

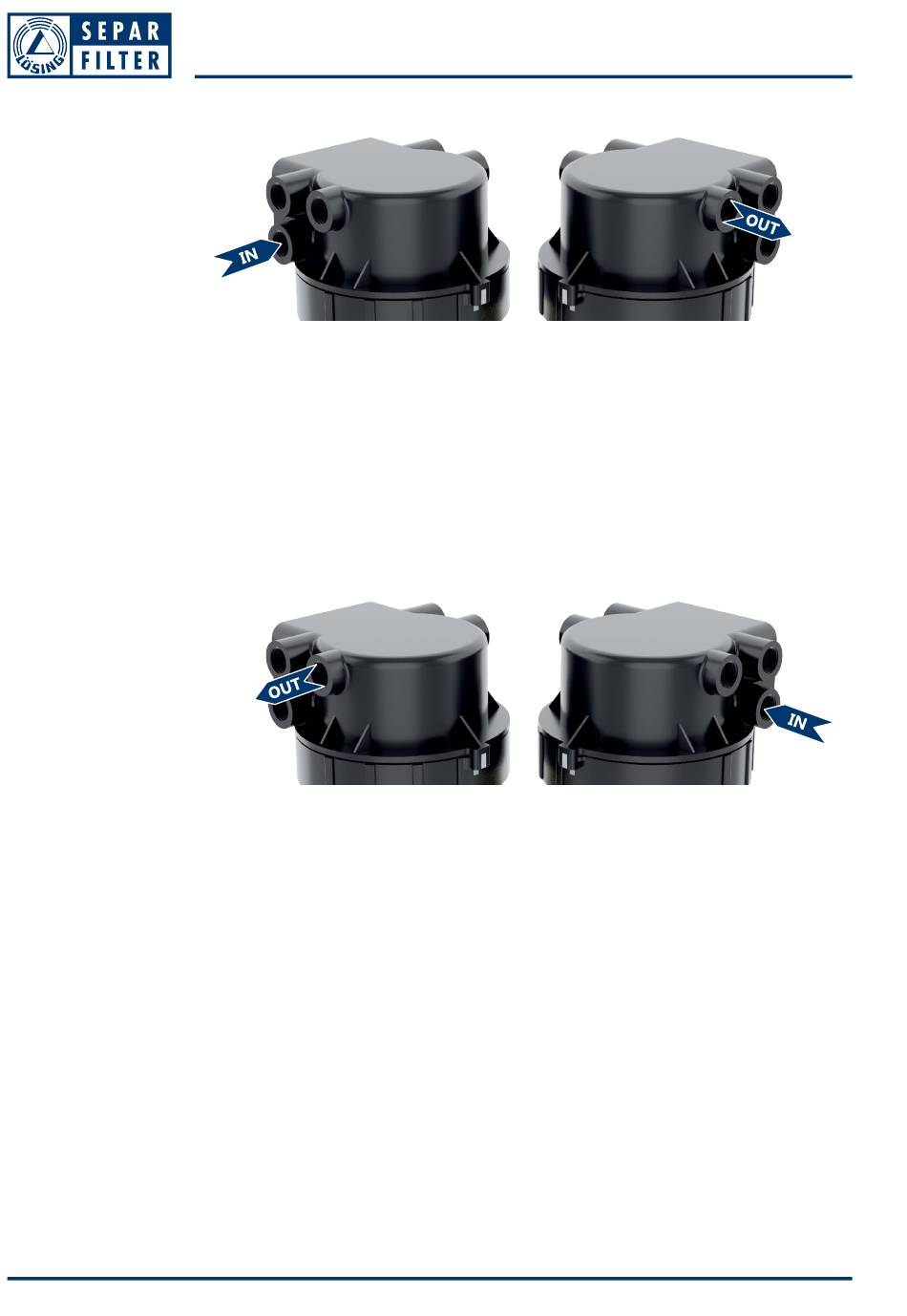

Figure 9: Connection example: Inlet left side and outlet right side
► The filter is mounted.
1. Connect the line from the tank (IN) to the medium inlet on the left side of the
filter.
2. Connect the line from the filter to the injection system (OUT) to the medium
outlet on the right side of the filter.
3. Close all still open medium connections with one sealing plug each.
= The filter is connected.

Connection example 2: Inlet right side and outlet left side

Figure 10: Connection example: Inlet right side and outlet left side
► The filter is mounted.
1. Connect the line from the tank (IN) to the medium inlet on the right side of
the filter.
2. Connect the line from the filter to the injection system (OUT) to the medium
outlet on the left side of the filter.
3. Close all still open medium connections with one sealing plug each.
= The filter is connected.
LKF-Automotive
Installation
D10107-EN-R05
