Installation
7.5.3
D10107-EN-R05
Connection example 3: Inlet and outlet on one side

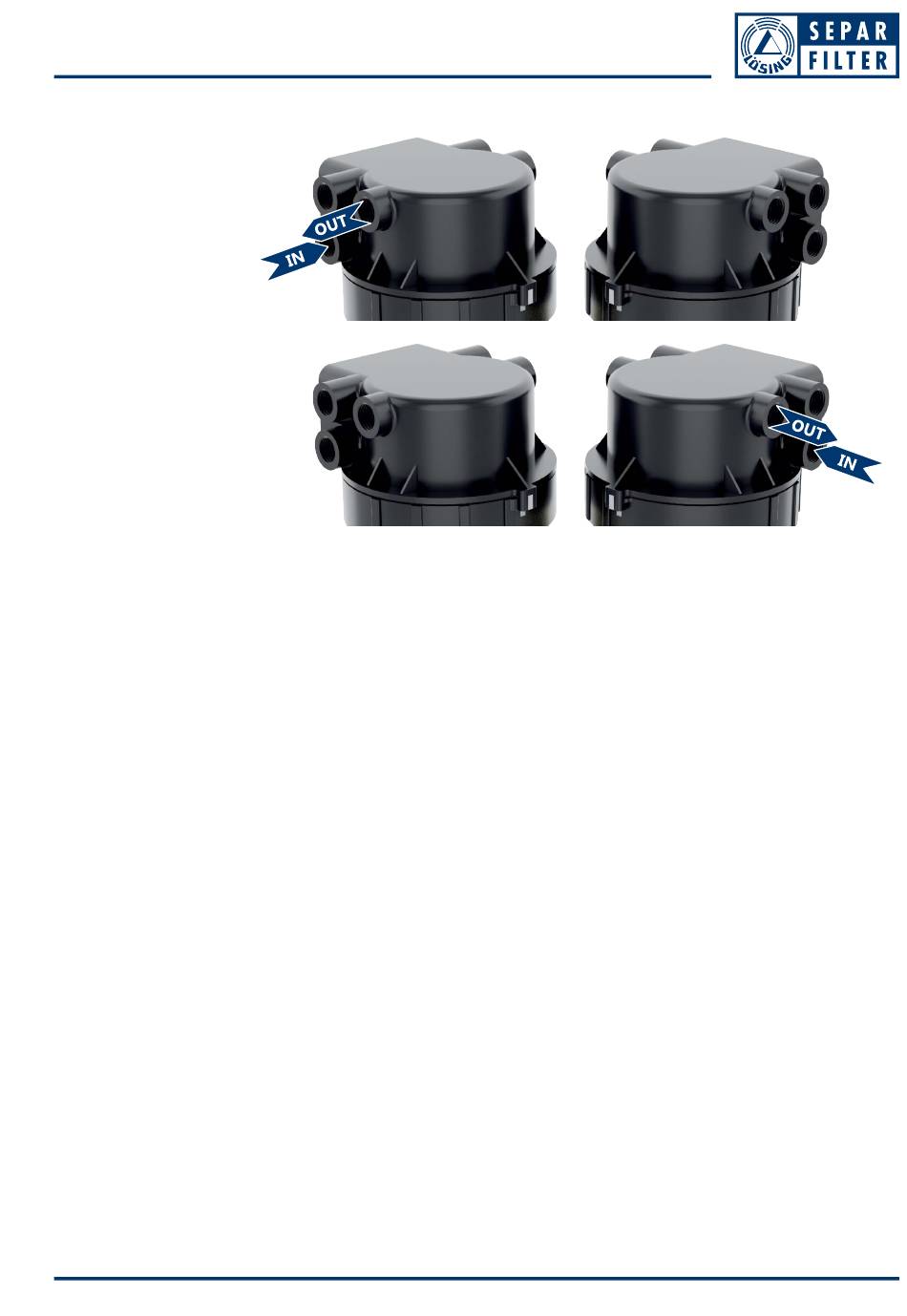

Figure 11: Connection example: Inlet and outlet on one side
► The filter is mounted.
1. Connect the line from the tank (IN) to the medium inlet on the left (right) side
of the filter.
2. Connect the line from the filter to the injection system (OUT) to the medium
outlet on the left (right) side of the filter.
3. Close all still open medium connections with one sealing plug each.
=
The filter is connected.
