3.5 Structure
D10107-EN-R05

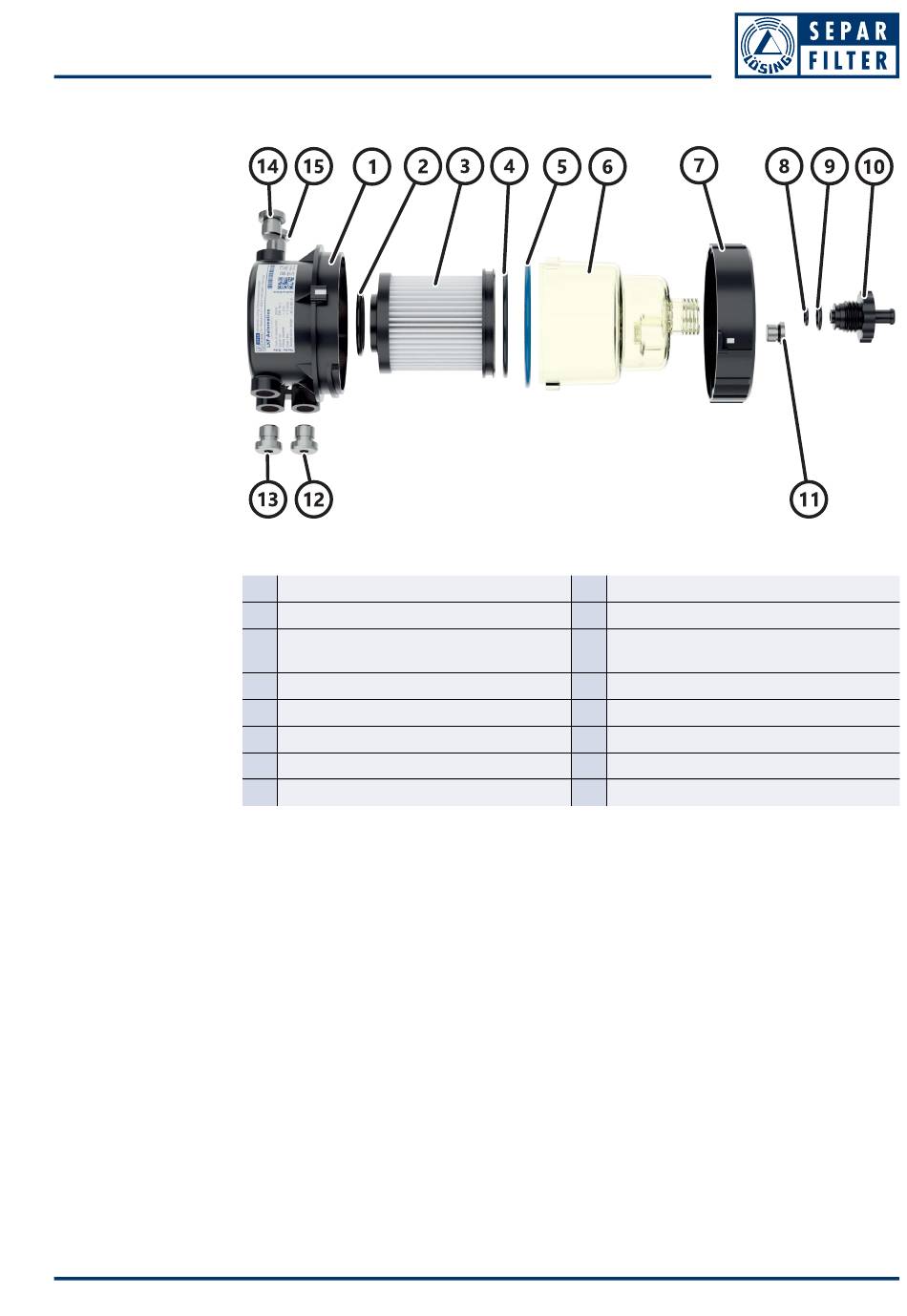

Figure 4: Individual parts of the filter
1 Filter body with media connectors
2 O-ring seal filter element/filter body
3 Filter element
4 O-ring seal container/filter element
5 O-ring seal container/filter body
6 Container
7 Bayonet ring
8 O-ring seal for drain valve seating
9 O-ring seal container/drain valve
10 Drain valve
11 Sealing plug PG7 for screw-in thread water
sensor
12 Sealing plug M14×1,5
13 Sealing plug M14×1,5
14 Sealing plug M14×1,5
15 Sealing plug M14×1,5
