8.4 Assemble container

22/35

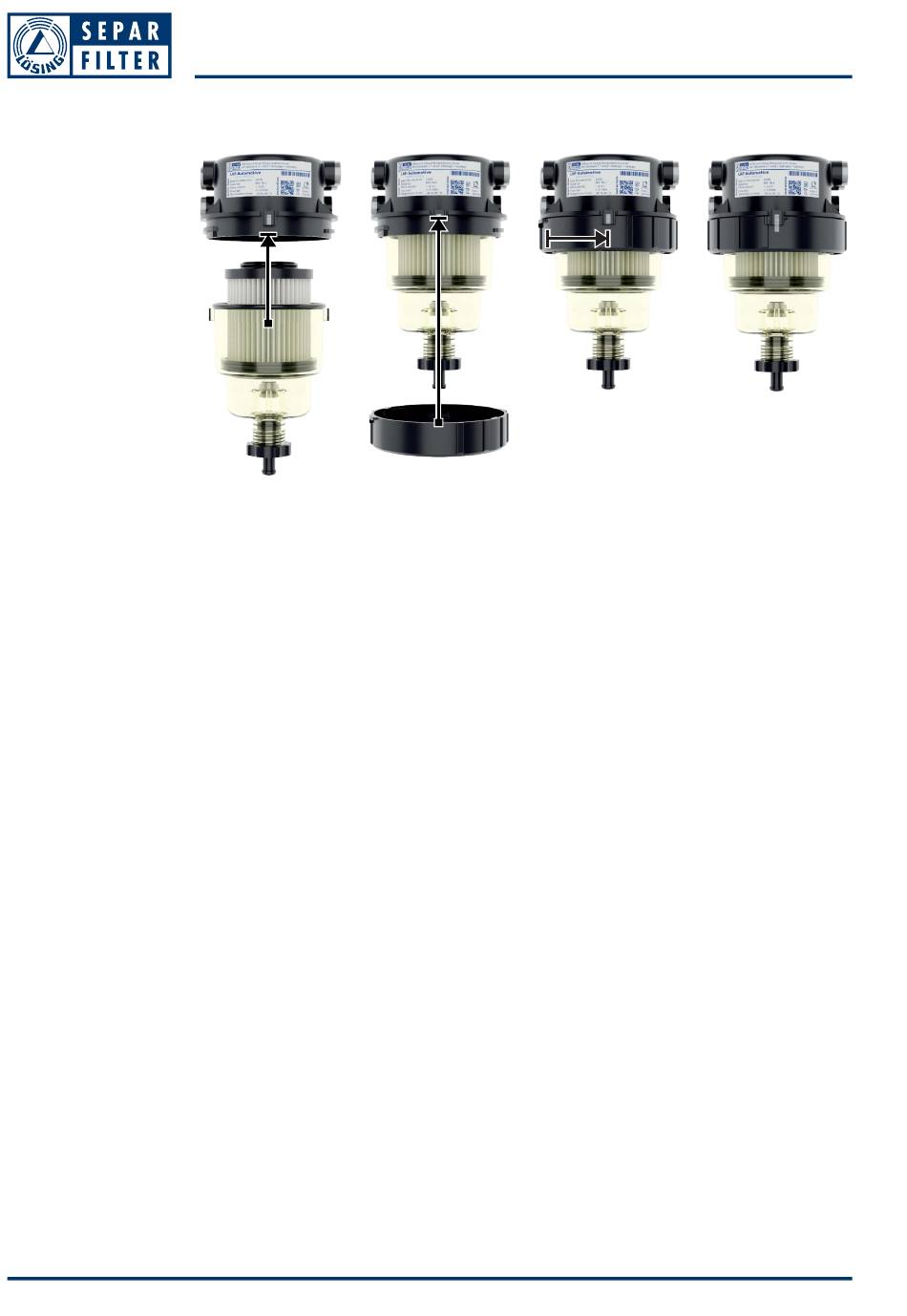

Figure 15: Assemble container
► The filter element is inserted correctly into the container.
► The sealing surfaces on the container and in the filter body are cleaned.
1. Rotate the container around its longitudinal axis in order to get it into the
approximate assembly position.
2. Slide the container into the filter body from below. Ensure in this case that the
filter element slides into the filter body without canting.
3. Align the pins on the container by rotating so that they grip into the slots in
the filter body.
4. Using light pressure, move the container into the filter body up to the stop
and hold fixed.
5. Slide the bayonet ring over the container and screw onto the screw thread on
the filter body until resistance can be felt.
6. Take the bayonet ring with both hands and rotate fixed clockwise until it
engages in its end position.
= The container is assembled.
