7 Installation
NOTICE
NOTICE
7.1 Safety information
CAUTION
7.2 Mounting material
14/35
Transport damages!
A damaged filter can lead to consequential damage due to leaking medium!
Before installation
1. check the filter for visible damage.
2. check the package content for completeness.
3. when indicated, replace damaged parts and extend lost parts or use a new
filter.
Dust caps!
For the protection of the filter, all mechanical connections are sealed ex works!
The dust caps may only be removed when installing the filter.

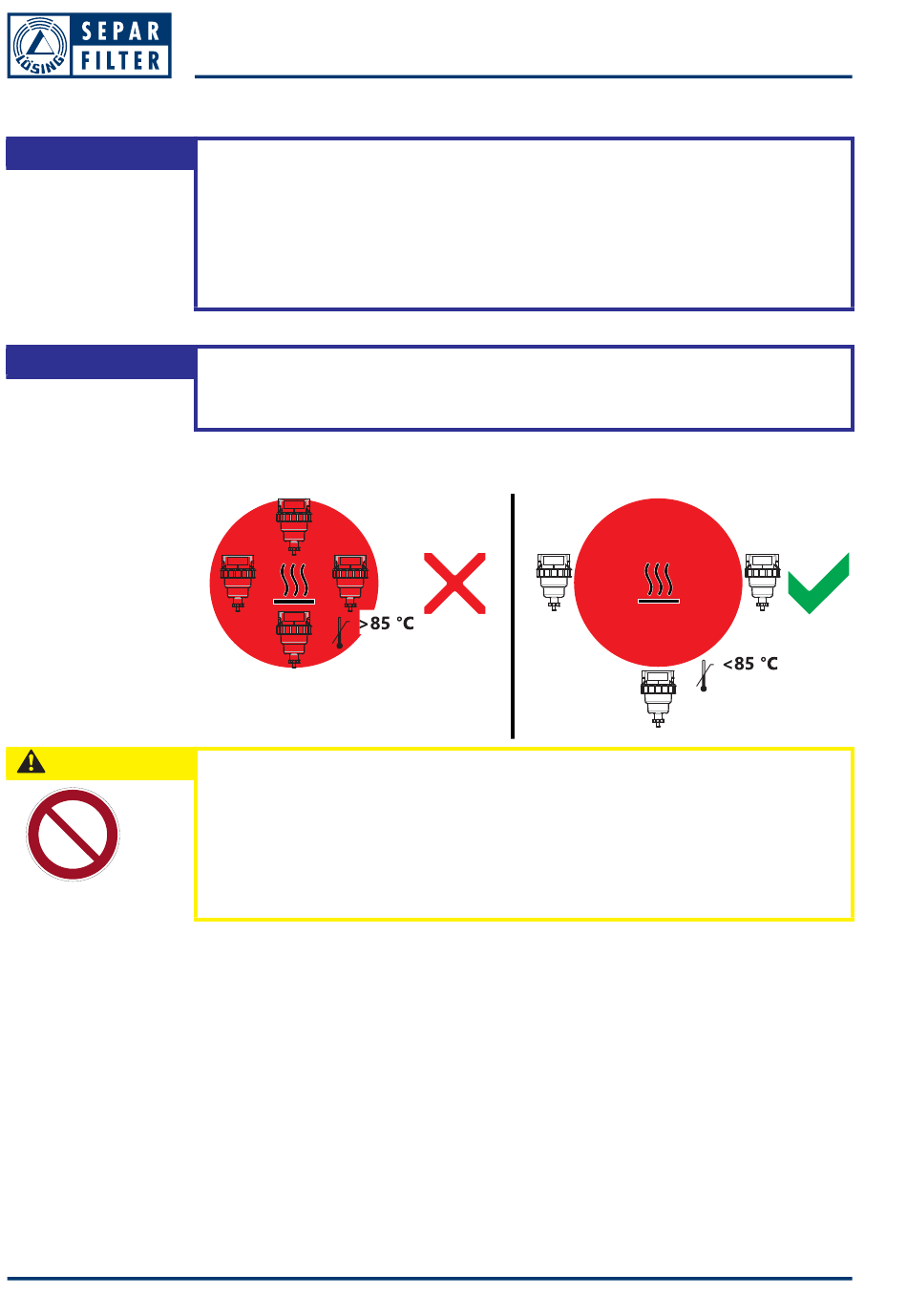

Consider ambient temperature!
Too high temperatures can damage the filter and lead to consequential damage
due to leaking medium!
Install the filter so that
• the installation surface causes no inadmissible heating.
• the filter is not in the irradiation range of hot system parts.
• when indicated, a heat shield can be mounted for the protection of the filter.
2 machine screws
Thread size. . . . . . . . . . . . . . . . . . . . . . . . . . . M8
Length of thread . . . . . . . . . . . . . . . . . . . . . . 12 mm to 18 mm
Tightening torque. . . . . . . . . . . . . . . . . . . . . 5 Nm ±1 Nm
2 spring lock washers . . . . . . . . . . . . . . . . . . . . DIN 127
The length of the fastening screws must be selected so that the screw thread grips over the
full length of the screw tap and does not protrude more than 6 mm in the tightened status.
LKF-Automotive
Installation
D10107-EN-R05
