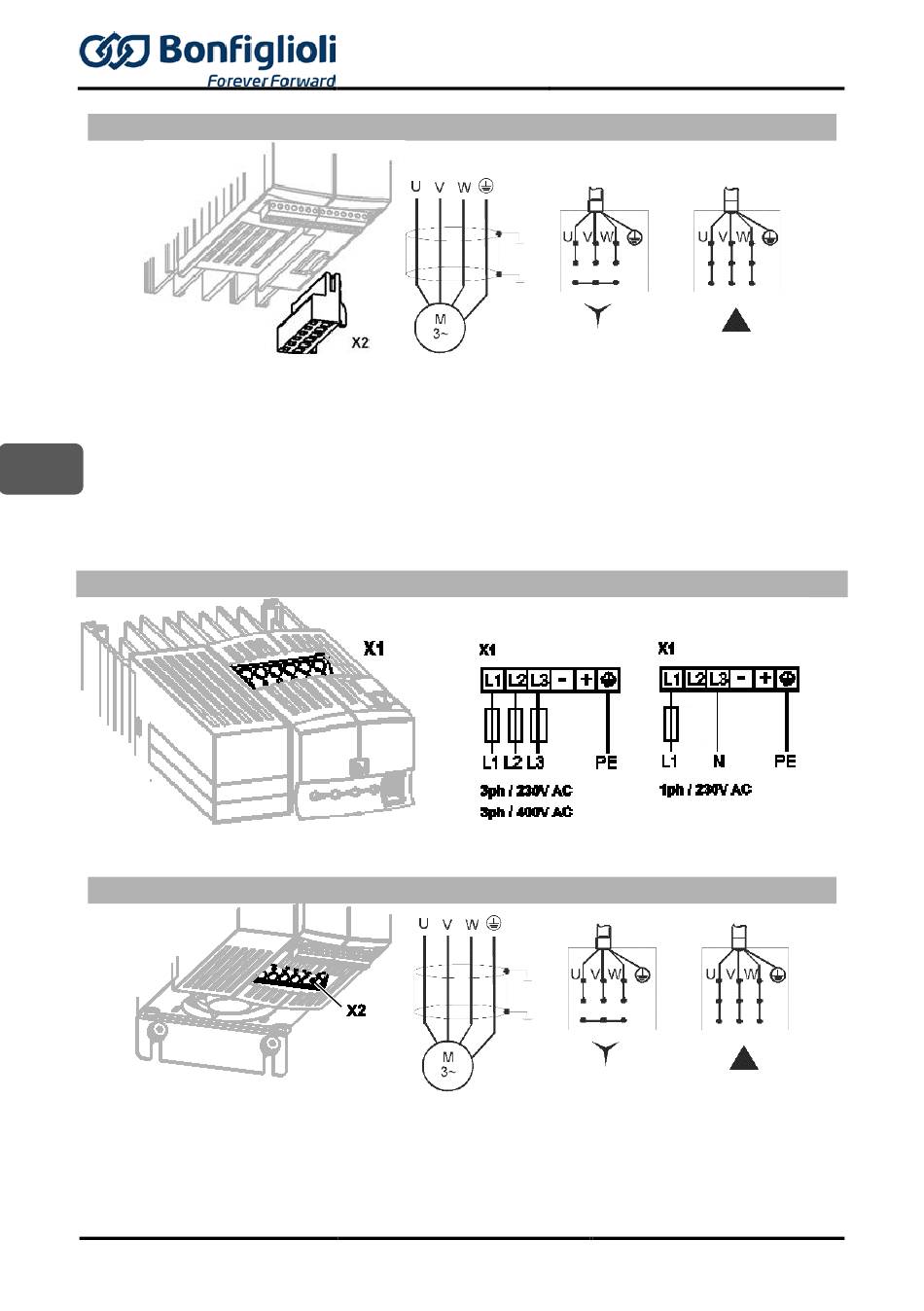

Motor connection

• For connection of the ground conductor of the mains and motor cable,
use the provided terminal connection options X1 and X2. Other connection
options for connecting the mains and motor cable are not permissible.
• For connection of a braking resistor, use terminals R
GB
4.2.2
Mains connection
ANG 210-18 (4.0 kW): one and three-phase connection possible
ANG 210-19 (5.5 kW) and higher: three-phase connection possible
Motor connection
• For connection of the ground conductor of the mains and motor cable,
use the provided terminal connection options X1 and X2. Other connection
options for connecting the mains and motor cable are not permissible.
For connection of a braking resistor, use terminals R
•
98
ANG210 (4.0...9.2 kW) and ANG410
(5.5...15.0 kW)
Quick Start Guide ANG
and R .
b1 b2
and R .
b1 b2
07/20
