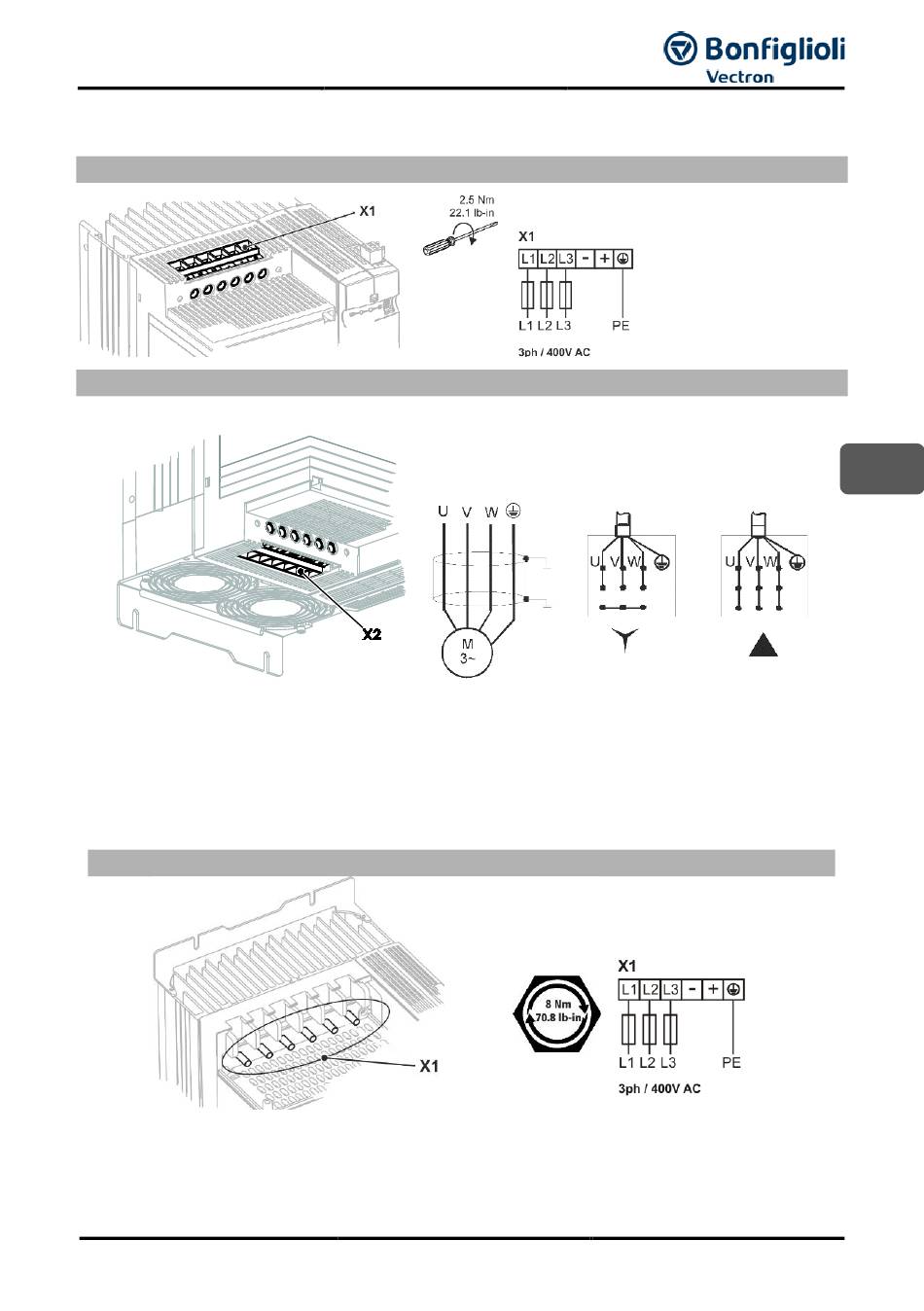

4.2.3 ANG 410 (18.5...30.0 kW)
Mains connection
Motor connection
For connection of the ground conductor of the mains and motor cable,
•
use the provided terminal connection options X1 and X2. Other connection
options for connecting the mains and motor cable are not permissible.
For connection of a braking resistor, use terminals R
•
4.2.4 ANG410 (37.0...65.0 kW)
Mains connection
07/20
Quick Start Guide ANG
and R .
b1 b2
