4.3

Control terminals

4.3.1 Control terminals X210A & X210B
CAUTION
Live voltage
The control terminals may be energized.
• Connect the unit may only with the power supply switched
off.
Verify safe isolation from power supply.
•
• Switch off power supply before connecting or disconnecting
the control inputs and outputs. Otherwise, components may
be damaged.
07/20

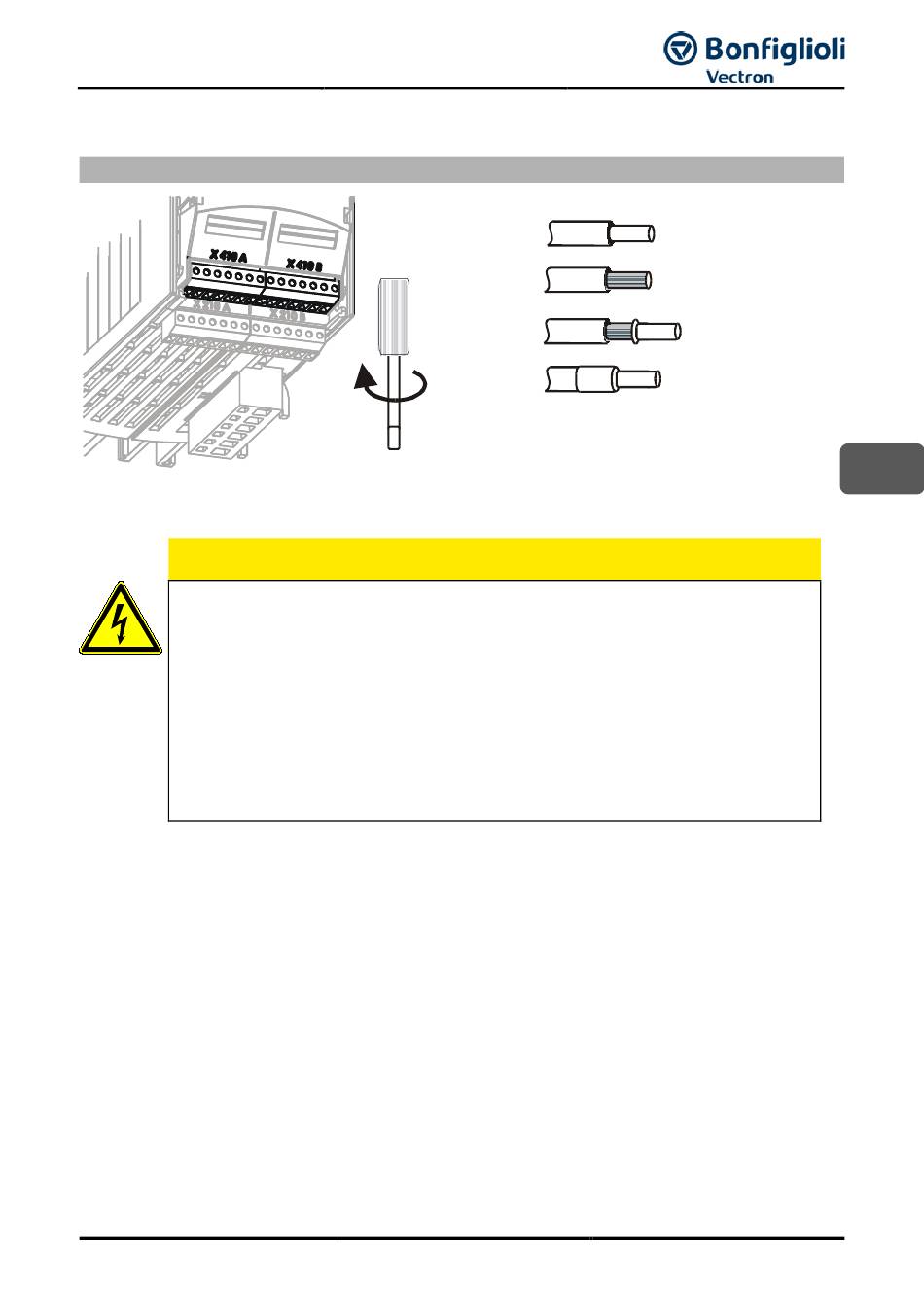

Signal terminals X210 & X410
0.2 ... 0.3 Nm
1.8 ... 2.7 lb-in
Quick Start Guide ANG
Wieland DST85 / RM3,5
0.14 ... 1.5 mm
AWG 30 ... 16
0.14 ... 1.5 mm
AWG 30 ... 16
0.25 ... 1.0 mm
AWG 22 ... 18
0.25 ... 0.75 mm
AWG 22 ... 20
2
2
2
2
